Best Skid Steer

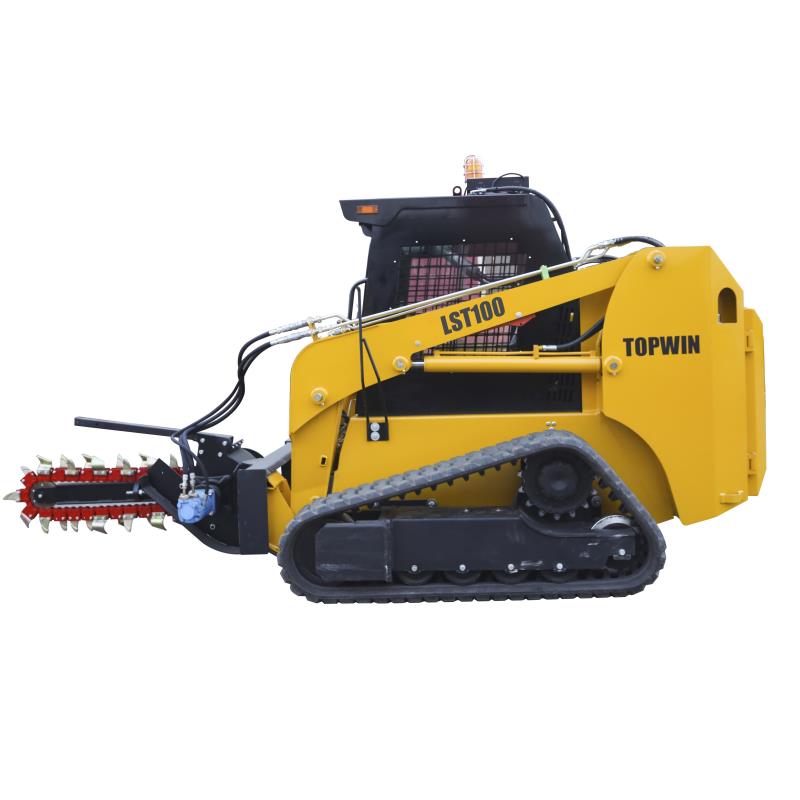

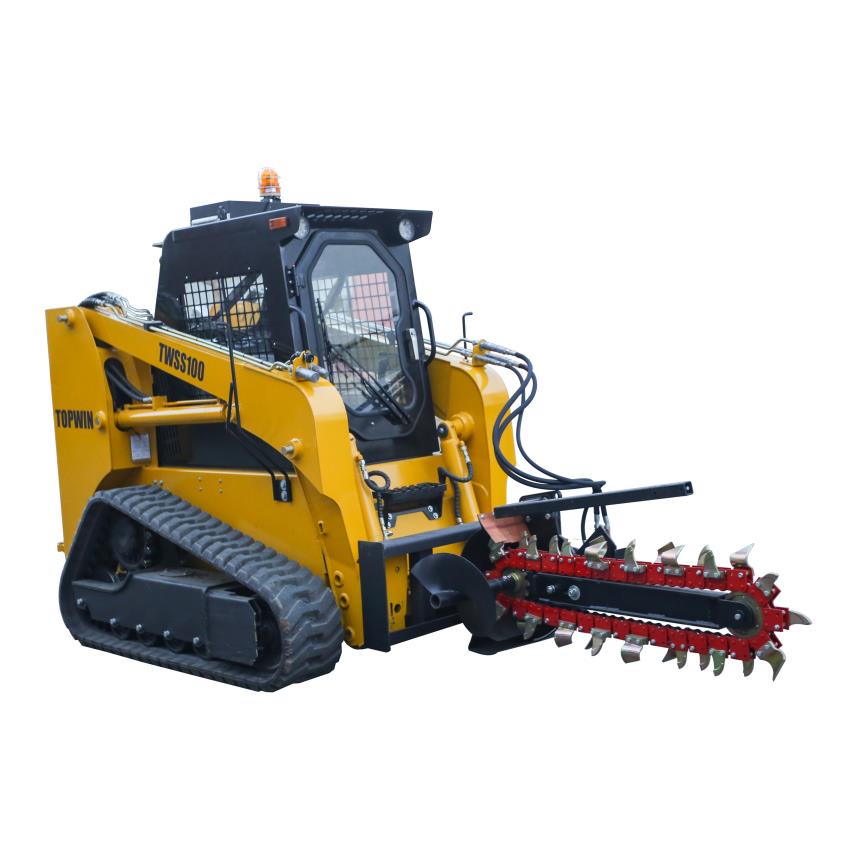

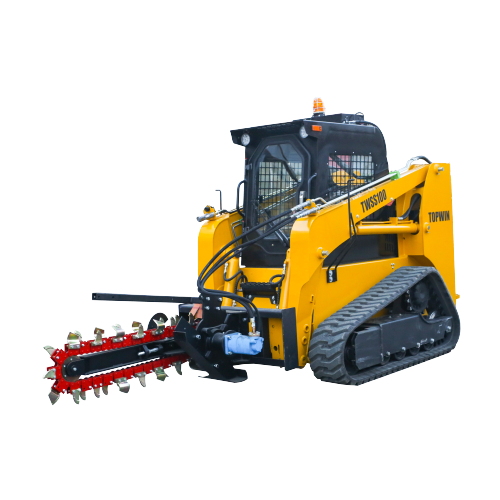

Track Type Skid Steer Loader
Rated Load (Kg):1050
Engine Rated Power (Kw): 55
China Xinchai 498T Engine
Standard Bucket Capacity (m3): 0.5
Enclosed Cabin Without Ac
Skid Steer Loader Product Description
Skid Steer Loaders Have a Easy Product Structure,
Proper Fee Overall Performance And Low Value Of Use;
The Collection Has a Compact Diagram And a Small Width Of The Foremost Machine, Which Has Desirable Passability;
The Variable Width Working Arm Is Used. The Product Adopts Imported European And American Hydraulic Components;
The Manage All Adopts The Pilot Servo System, With Touchy Manipulate And Speedy Reflection,
Which Is The Quality Preference For Slender House Operation.
Skid Steer Loader Specifications
| tem | Model | TWSS65 | TWSS100 |
| 1 | Operating load (kg) | 1000 | 1200 |
| 2 | Max Speed(km/h) | 12/18 | 12/18 |
| 3 | Rated flux (L/min) | 75 | 88 |
| 4 | Tire(track) model | 320X84 | 320X84 |
| 5 | Rated power (kW/HP) | 55/75 | 74/100 |
| 6 | Fuel tank capacity (L) | 80 | 90 |
| 7 | Self weight bucket (kg) | 3800 | 4500 |
| 8 | Bucket capacity (m 3 ) | 0.5 | 0.55 |
| A | Overall operating height (mm) | 3480 | 4070 |
| B | Height to bucket hinge pin (mm) | 2900 | 3150 |
| C | height to top of cab (mm) | 2150 | 2160 |
| D | Height to bottom of level bucket(mm) | 2730 | 2983 |
| E | Overall length without bucket(mm) | 2750 | 3000 |
| F | Overall length with bucket(mm) | 3500 | 3700 |
| G | Dumping angle at maximum height(° ) | 40 | 40 |
| H | Dumping height(mm) | 2230 | 2450 |
| I | Dumping reach(mm) | 715 | 700 |
| J | Rollback o bucket on ground(° ) | 30 | 30 |
| K | Rollback of bucket at full height(° ) | 104 | 104 |
| L | Wheelbase(mm) | 1500 | 1500 |
| M | Ground clearance(mm) | 200 | 200 |
| N | Angle of departure(° ) | 20 | 20 |
| O | Front turning radius without bucket(mm) | 1298 | 1365 |
| P | Front tuning radius(mm) | 2010 | 2200 |
| Q | Rear tuning radius(mm) | 1714 | 1742 |
| R | Rear axle to bumper (mm) | 890 | 938 |
| S | Tread width, centerline to centerline (mm) | 1462 | 1654 |
| T | Width (mm) | 1782 | 1994 |
| U | Bucket width (mm) | 1830 | 2030 |
Product Details
Skid Steer Hydraulic Connector Skid Steer Loader Cabin Skid Steer Loader Radiator
Skid Steer Loader Panel Skid Steer Loader Pilot Lever Skid Steer Loader Quick Hitch

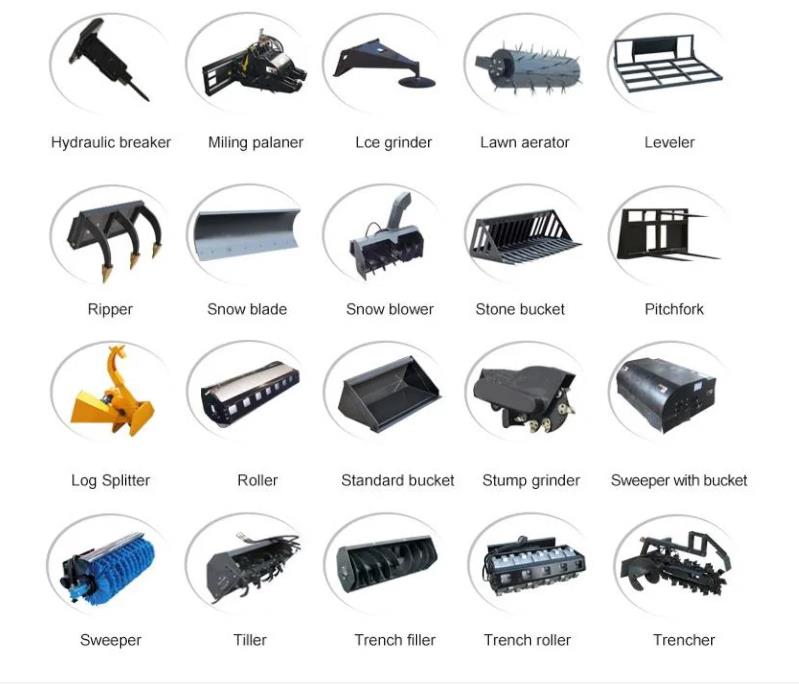

Skid steer loader accessories
1,Material Loading And Unloading Attachments (Fork Shovel, General Bucket, Aggregate Shovel, Sieve Shovel)
2,Municipal Attachments (Angled Sweepers, Closed Sweepers, Crushing Hammers, Vibratory Compactors,
Milling Machines, Trenchers, Snow Pushers, Snow Throwers, Ice Breakers, Vibratory Ice Breakers)
3,Construction Attachments (Excavators, Mixers, Disk Trenchers, Digging Arms, Bulldozers)
4,Logistics Attachments (Holding Forks, Tandem Bars, Smooth Pack Clamps, Crane Hooks, Facet Transferring Forklifts)
5,Gardening And Agricultural Attachments (Grass Forks, Tree Removers, Graders, Garden Mowers, Rototillers, Augers)
Company Profile
Shandong Topwin Machinery Co.,Ltd. (Topwin For Short) Is The One-Stop Solution Provider For Construction Machinery, Mining Machinery, Agricultural Machinery And Logistic Machinery In China.
tem | Model | TWS35 | TWS45G | TWS60G | TWS65B | TWS100 | TWSS65 | TWSS100 |
1 | Operating load (kg) | 500 | 700 | 850 | 950 | 1200 | 1000 | 1200 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 | 12/18 | 12/18 | 12/18 |
3 | Rated flux (L/min) | 60 | 75 | 75 | 80 | 80 | 75 | 88 |
4 | Tire(track) model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 320X84 | 320X84 |
5 | Rated power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 | 74/100 | 55/75 | 74/100 |
6 | Fuel tank capacity (L) | 60 | 65 | 80 | 75 | 90 | 80 | 90 |
7 | Self weight bucket (kg) | 2300 | 3000 | 3200 | 3350 | 3550 | 3800 | 4500 |
8 | Bucket capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 | 0.55 | 0.5 | 0.55 |
A | Overall operating height (mm) | 3300 | 3980 | 4000 | 4000 | 4070 | 3480 | 4070 |
B | Height to bucket hinge pin (mm) | 2725 | 3080 | 3100 | 3100 | 3150 | 2900 | 3150 |
C | height to top of cab (mm) | 2000 | 2140 | 2160 | 2160 | 2160 | 2150 | 2160 |
D | Height to bottom of level bucket(mm) | 2558 | 2913 | 2933 | 2933 | 2983 | 2730 | 2983 |
E | Overall length without bucket(mm) | 2300 | 2640 | 2750 | 2750 | 2880 | 2750 | 3000 |
F | Overall length with bucket(mm) | 3080 | 3420 | 3490 | 3490 | 3580 | 3500 | 3700 |
G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 | 2450 | 2230 | 2450 |
I | Dumping reach(mm) | 790 | 700 | 750 | 750 | 700 | 715 | 700 |
J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 | 1185 | 1500 | 1500 |
M | Ground clearance(mm) | 140 | 185 | 205 | 205 | 205 | 200 | 200 |
N | Angle of departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 | 1278 | 1298 | 1365 |
P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 | 2144 | 2010 | 2200 |
Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 | 1857 | 1714 | 1742 |
R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 | 1082 | 890 | 938 |
S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 | 1500 | 1462 | 1654 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 | 1880 | 1782 | 1994 |
U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 | 1880 | 1830 | 2030 |
