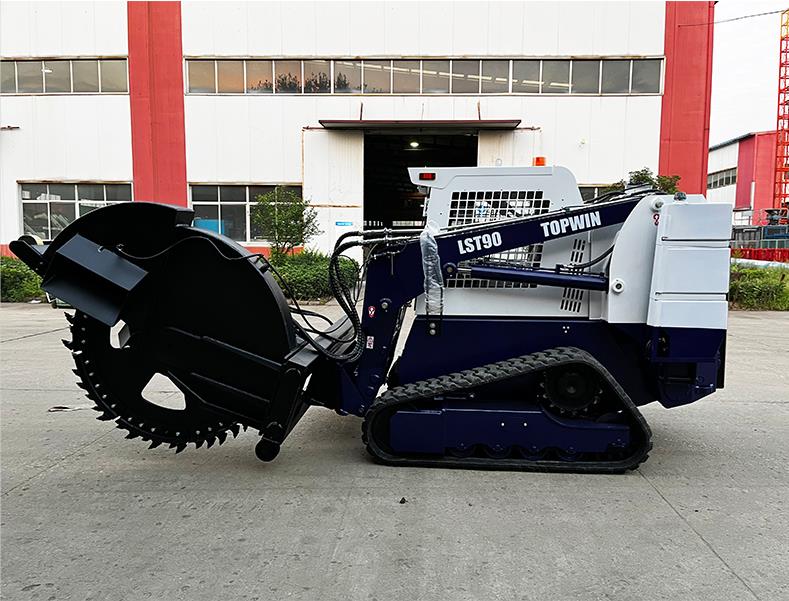

Crawler Track Skid Steer Loader With Wheel Saw
Compact Structure,Maneuverable Motion Appropriate For Slim House Operation;
Close Cabin With Joystick Manipulate System;
Double Accelerograph Control;
Auto-Leveling System;
Multi-Function With a Broad Vary Of Attachments;
Hydraulic Brake
TOPWIN wheel Saw Characteristics:
Quick Attach Systems
High Work Effectivity
Attach To Most Skid Steer Loader
SN | Model | LST100 (TWSS100) |
1 | Type | Tracked type |
2 | Operating load (kg) | 1200 |
3 | Max Speed(km/h) | 12/15 |
4 | Rated flux (L/min) | 88 |
5 | Tire(track) model | 320X84 |
6 | Rated power (kW/HP) | 74/100 |
7 | Fuel tank capacity (L) | 90 |
8 | Self weight bucket (kg) | 4500 |
A | Bucket capacity (m 3 ) | 0.55 |
B | Overall operating height (mm) | 4070 |
C | Height to bucket hinge pin (mm) | 3150 |
D | height to top of cab (mm) | 2160 |
E | Height to bottom of level bucket(mm) | 2983 |
F | Overall length without bucket(mm) | 3000 |
G | Overall length with bucket(mm) | 3700 |
H | Dumping angle at maximum height(° ) | 40 |
I | Dumping height(mm) | 2450 |
J | Dumping reach(mm) | 700 |
K | Rollback o bucket on ground(° ) | 30 |
L | Rollback of bucket at full height(° ) | 104 |
M | Wheelbase(mm) | 1500 |
N | Ground clearance(mm) | 200 |
O | Angle of departure(° ) | 20 |
P | Front turning radius without bucket(mm) | 1365 |
Q | Front tuning radius(mm) | 2200 |
R | Rear tuning radius(mm) | 1742 |
S | Rear axle to bumper (mm) | 938 |
T | Tread width, centerline to centerline (mm) | 1654 |
U | Width (mm) | 1994 |
W | Bucket width (mm) | 2030 |
