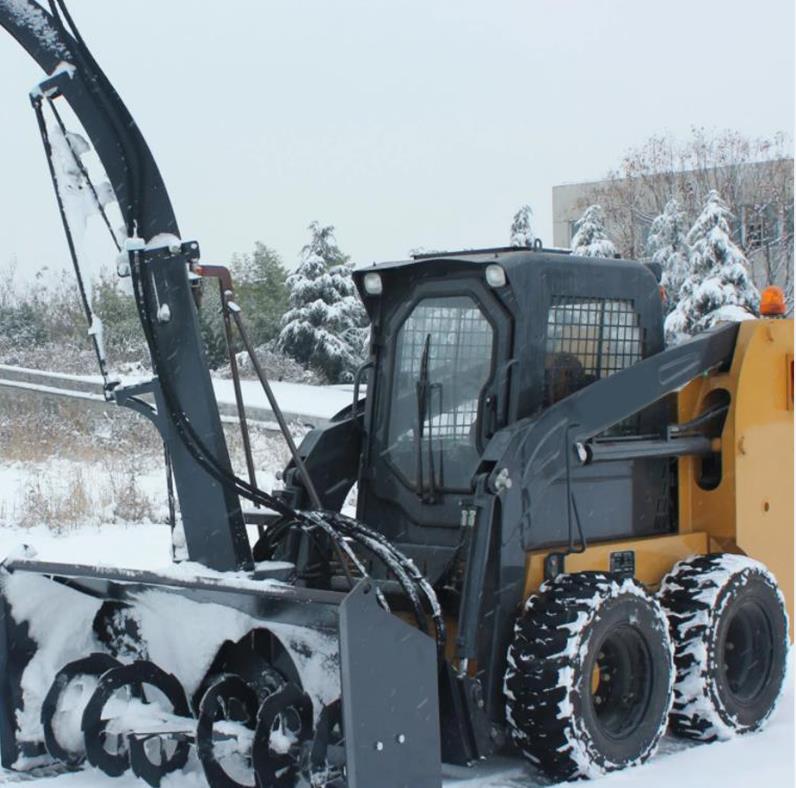

Skid Steer Loader With Snow Blower And Snow Plow
Incomparable Multi-Functionalities
The Global Interchangeable Quick-Change Coupling Allows The Alternate Of Tens Of Attachments, Together With Sweeper, Planer, Breaking Hammer, And Ditcher, Hastily And Conveniently.
Strong And Efficient Power Transmission System
The Famend Company Engine Geared Up Points Robust Power, Ultra-Low Emission, And Greater Gasoline Efficiency.
The Static Hydraulic Pressure Technological Know-How Adopted Points Secure Power And Excessive Effectivity And Reliability.
The Fully-Sealed Sprocket Case And Excessive Power Chains Function Automated Lubrication And Maintenance-Free.
Skid Steer Loader Specifications
| tem | Model | TWSS65 | TWSS100 |
| 1 | Operating load (kg) | 1000 | 1200 |
| 2 | Max Speed(km/h) | 12/18 | 12/18 |
| 3 | Rated flux (L/min) | 75 | 88 |
| 4 | Tire(track) model | 320X84 | 320X84 |
| 5 | Rated power (kW/HP) | 55/75 | 74/100 |
| 6 | Fuel tank capacity (L) | 80 | 90 |
| 7 | Self weight bucket (kg) | 3800 | 4500 |
| 8 | Bucket capacity (m 3 ) | 0.5 | 0.55 |
| A | Overall operating height (mm) | 3480 | 4070 |
| B | Height to bucket hinge pin (mm) | 2900 | 3150 |
| C | height to top of cab (mm) | 2150 | 2160 |
| D | Height to bottom of level bucket(mm) | 2730 | 2983 |
| E | Overall length without bucket(mm) | 2750 | 3000 |
| F | Overall length with bucket(mm) | 3500 | 3700 |
| G | Dumping angle at maximum height(° ) | 40 | 40 |
| H | Dumping height(mm) | 2230 | 2450 |
| I | Dumping reach(mm) | 715 | 700 |
| J | Rollback o bucket on ground(° ) | 30 | 30 |
| K | Rollback of bucket at full height(° ) | 104 | 104 |
| L | Wheelbase(mm) | 1500 | 1500 |
| M | Ground clearance(mm) | 200 | 200 |
| N | Angle of departure(° ) | 20 | 20 |
| O | Front turning radius without bucket(mm) | 1298 | 1365 |
| P | Front tuning radius(mm) | 2010 | 2200 |
| Q | Rear tuning radius(mm) | 1714 | 1742 |
| R | Rear axle to bumper (mm) | 890 | 938 |
| S | Tread width, centerline to centerline (mm) | 1462 | 1654 |
| T | Width (mm) | 1782 | 1994 |
| U | Bucket width (mm) | 1830 | 2030 |
Product Details
Skid Steer Hydraulic Connector Skid Steer Loader Cabin Skid Steer Loader Radiator
Skid Steer Loader Panel Skid Steer Loader Pilot Lever Skid Steer Loader Quick Hitch
Company Profile
Shandong Topwin Machinery Co.,Ltd. (Topwin For Short) Is The One-Stop Solution Provider For Construction Machinery, Mining Machinery, Agricultural Machinery And Logistic Machinery In China.
tem | Model | TWS35 | TWS45G | TWS60G | TWS65B | TWS100 | TWSS65 | TWSS100 |
1 | Operating load (kg) | 500 | 700 | 850 | 950 | 1200 | 1000 | 1200 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 | 12/18 | 12/18 | 12/18 |
3 | Rated flux (L/min) | 60 | 75 | 75 | 80 | 80 | 75 | 88 |
4 | Tire(track) model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 320X84 | 320X84 |
5 | Rated power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 | 74/100 | 55/75 | 74/100 |
6 | Fuel tank capacity (L) | 60 | 65 | 80 | 75 | 90 | 80 | 90 |
7 | Self weight bucket (kg) | 2300 | 3000 | 3200 | 3350 | 3550 | 3800 | 4500 |
8 | Bucket capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 | 0.55 | 0.5 | 0.55 |
A | Overall operating height (mm) | 3300 | 3980 | 4000 | 4000 | 4070 | 3480 | 4070 |
B | Height to bucket hinge pin (mm) | 2725 | 3080 | 3100 | 3100 | 3150 | 2900 | 3150 |
C | height to top of cab (mm) | 2000 | 2140 | 2160 | 2160 | 2160 | 2150 | 2160 |
D | Height to bottom of level bucket(mm) | 2558 | 2913 | 2933 | 2933 | 2983 | 2730 | 2983 |
E | Overall length without bucket(mm) | 2300 | 2640 | 2750 | 2750 | 2880 | 2750 | 3000 |
F | Overall length with bucket(mm) | 3080 | 3420 | 3490 | 3490 | 3580 | 3500 | 3700 |
G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 | 2450 | 2230 | 2450 |
I | Dumping reach(mm) | 790 | 700 | 750 | 750 | 700 | 715 | 700 |
J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 | 1185 | 1500 | 1500 |
M | Ground clearance(mm) | 140 | 185 | 205 | 205 | 205 | 200 | 200 |
N | Angle of departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 | 1278 | 1298 | 1365 |
P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 | 2144 | 2010 | 2200 |
Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 | 1857 | 1714 | 1742 |
R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 | 1082 | 890 | 938 |
S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 | 1500 | 1462 | 1654 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 | 1880 | 1782 | 1994 |
U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 | 1880 | 1830 | 2030 |
