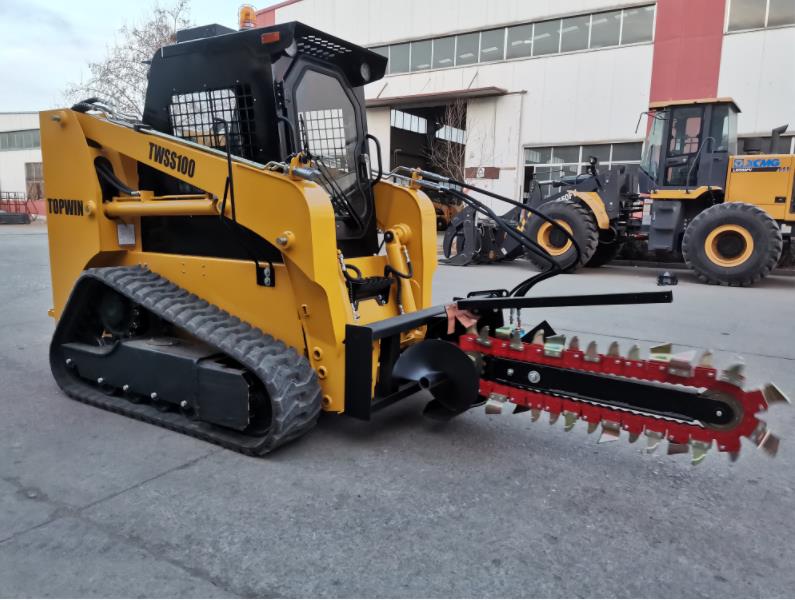

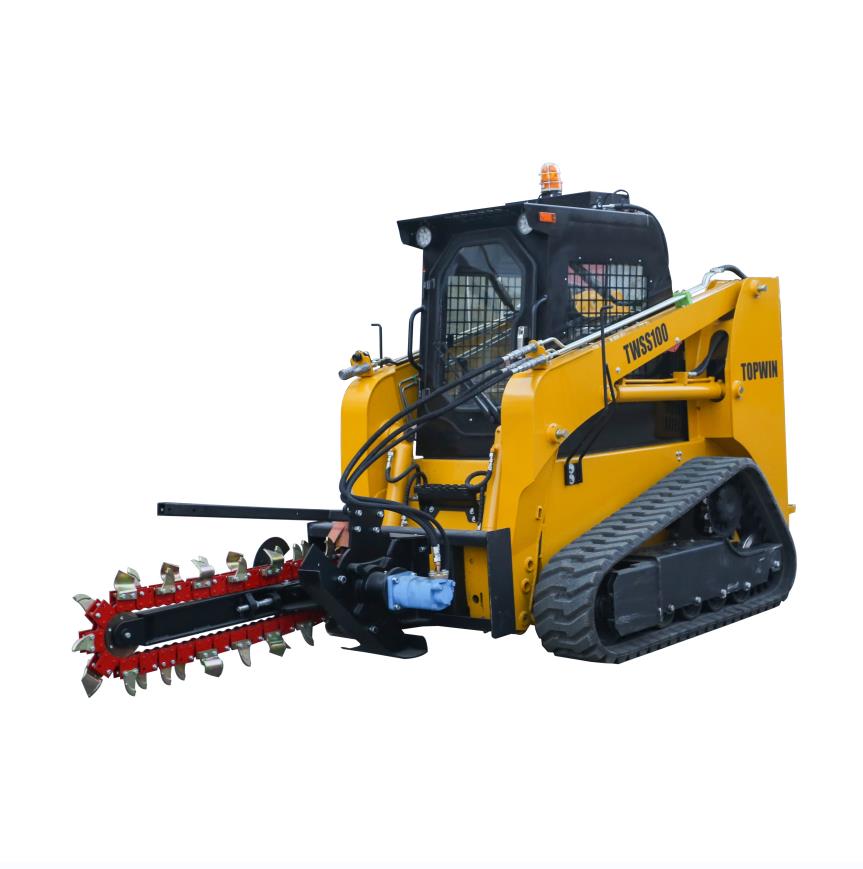

Skid Steer Loader Tracks With Trencher
Compact Track Loader
Durable Undercarriage Machine
Operator-Friendly Controls
Roomy Cab With Top Rate Relief Points
Cold Climate Safety
Full-Access Serviceability
The 100-Hp Topwin Skid Steer Loader Tracks Offers You An Facet On The Jobsite With Effective Hydraulics, Quickly Cycle Instances And Effective Breakout Forces.
With Greater Than 200 On Hand Attachments, No Competing Tune Loaders Can Provide You Extra Versatility To Accomplish Extra And Get The Most Out Of Your Machine.
Get Extra Usable Horsepower From The Twss100 Design, Stability And Weight Distribution. Work Quicker, Raise Extra And Outperform Your Competition.
The Twss100 Aspects a Long Lasting Undercarriage Machine Engineered For Lasting Durability. You Won’t Discover a More Difficult Song Machine On The Market.
Skid Steer Loader Specifications
| tem | Model | TWSS65 | TWSS100 |
| 1 | Operating load (kg) | 1000 | 1200 |
| 2 | Max Speed(km/h) | 12/18 | 12/18 |
| 3 | Rated flux (L/min) | 75 | 88 |
| 4 | Tire(track) model | 320X84 | 320X84 |
| 5 | Rated power (kW/HP) | 55/75 | 74/100 |
| 6 | Fuel tank capacity (L) | 80 | 90 |
| 7 | Self weight bucket (kg) | 3800 | 4500 |
| 8 | Bucket capacity (m 3 ) | 0.5 | 0.55 |
| A | Overall operating height (mm) | 3480 | 4070 |
| B | Height to bucket hinge pin (mm) | 2900 | 3150 |
| C | height to top of cab (mm) | 2150 | 2160 |
| D | Height to bottom of level bucket(mm) | 2730 | 2983 |
| E | Overall length without bucket(mm) | 2750 | 3000 |
| F | Overall length with bucket(mm) | 3500 | 3700 |
| G | Dumping angle at maximum height(° ) | 40 | 40 |
| H | Dumping height(mm) | 2230 | 2450 |
| I | Dumping reach(mm) | 715 | 700 |
| J | Rollback o bucket on ground(° ) | 30 | 30 |
| K | Rollback of bucket at full height(° ) | 104 | 104 |
| L | Wheelbase(mm) | 1500 | 1500 |
| M | Ground clearance(mm) | 200 | 200 |
| N | Angle of departure(° ) | 20 | 20 |
| O | Front turning radius without bucket(mm) | 1298 | 1365 |
| P | Front tuning radius(mm) | 2010 | 2200 |
| Q | Rear tuning radius(mm) | 1714 | 1742 |
| R | Rear axle to bumper (mm) | 890 | 938 |
| S | Tread width, centerline to centerline (mm) | 1462 | 1654 |
| T | Width (mm) | 1782 | 1994 |
| U | Bucket width (mm) | 1830 | 2030 |
Product Details

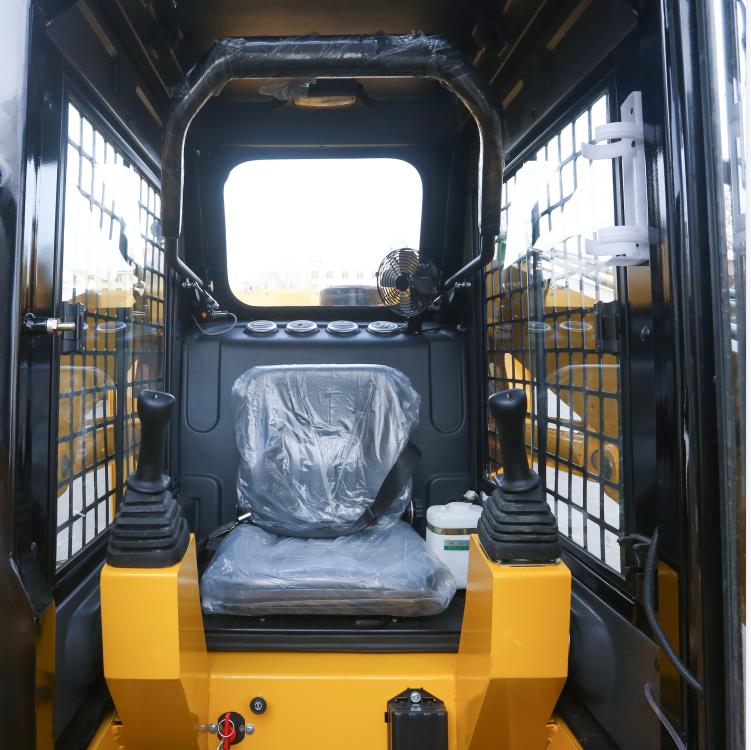

Skid Steer Hydraulic Connector Skid Steer Loader Cabin Skid Steer Loader Radiator

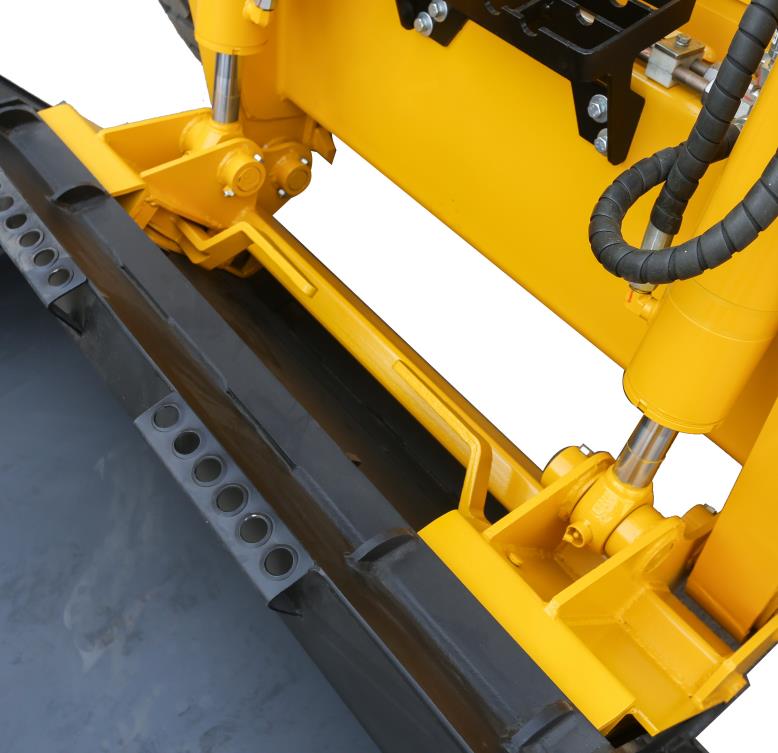

Skid Steer Loader Panel Skid Steer Loader Pilot Lever Skid Steer Loader Quick Hitch
Skid Steer Loader Attachments
Company Profile
Shandong Topwin Machinery Co.,Ltd. (Topwin For Short) Is The One-Stop Solution Provider For Construction Machinery, Mining Machinery, Agricultural Machinery And Logistic Machinery In China.
tem | Model | TWS35 | TWS45G | TWS60G | TWS65B | TWS100 | TWSS65 | TWSS100 |
1 | Operating load (kg) | 500 | 700 | 850 | 950 | 1200 | 1000 | 1200 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 | 12/18 | 12/18 | 12/18 |
3 | Rated flux (L/min) | 60 | 75 | 75 | 80 | 80 | 75 | 88 |
4 | Tire(track) model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 320X84 | 320X84 |
5 | Rated power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 | 74/100 | 55/75 | 74/100 |
6 | Fuel tank capacity (L) | 60 | 65 | 80 | 75 | 90 | 80 | 90 |
7 | Self weight bucket (kg) | 2300 | 3000 | 3200 | 3350 | 3550 | 3800 | 4500 |
8 | Bucket capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 | 0.55 | 0.5 | 0.55 |
A | Overall operating height (mm) | 3300 | 3980 | 4000 | 4000 | 4070 | 3480 | 4070 |
B | Height to bucket hinge pin (mm) | 2725 | 3080 | 3100 | 3100 | 3150 | 2900 | 3150 |
C | height to top of cab (mm) | 2000 | 2140 | 2160 | 2160 | 2160 | 2150 | 2160 |
D | Height to bottom of level bucket(mm) | 2558 | 2913 | 2933 | 2933 | 2983 | 2730 | 2983 |
E | Overall length without bucket(mm) | 2300 | 2640 | 2750 | 2750 | 2880 | 2750 | 3000 |
F | Overall length with bucket(mm) | 3080 | 3420 | 3490 | 3490 | 3580 | 3500 | 3700 |
G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 | 2450 | 2230 | 2450 |
I | Dumping reach(mm) | 790 | 700 | 750 | 750 | 700 | 715 | 700 |
J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 | 1185 | 1500 | 1500 |
M | Ground clearance(mm) | 140 | 185 | 205 | 205 | 205 | 200 | 200 |
N | Angle of departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 | 1278 | 1298 | 1365 |
P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 | 2144 | 2010 | 2200 |
Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 | 1857 | 1714 | 1742 |
R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 | 1082 | 890 | 938 |
S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 | 1500 | 1462 | 1654 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 | 1880 | 1782 | 1994 |
U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 | 1880 | 1830 | 2030 |
