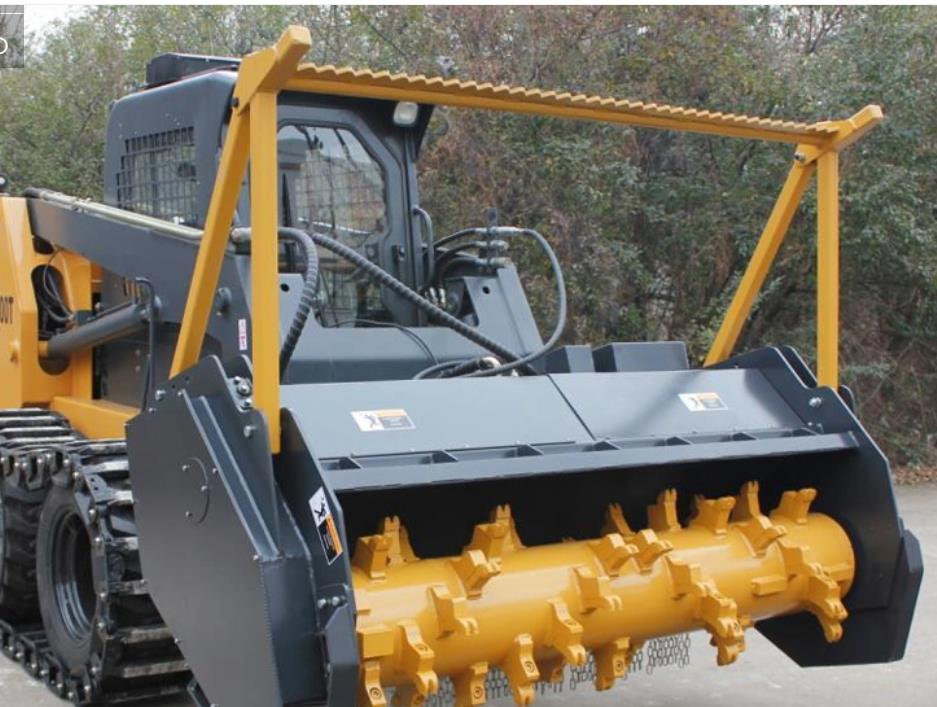

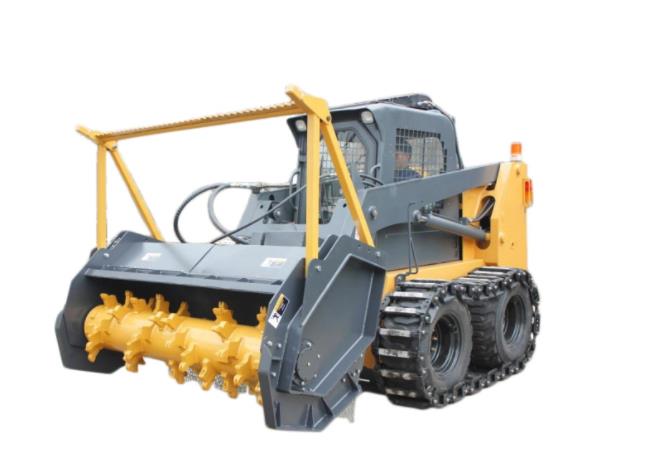

Skid Steer Loader With Forestry Mulcher
Skid Steer Loader With Forestry Mulcher Are Terrific Machines Which Are a Top Notch Aggregate Of Lifting Force, Versatility And Compact Size, Which Makes Them Best To Take Care Of The Hardest Of Jobs. With Innumerable Attachment Options, Skid Steer Loaders Can Do Different Duties On Specific Sorts Of Job Sites.
From Excavation, Earthmoving, Landscaping, Demolition, Lifting Jobs To Elimination Of Debris, a Skid Steer Loader With Forestry Mulcher is Indeed a "Jack Of All Trades." And, The Compact Measurement Of The Laptop Makes It Extraordinarily Beneficial For Indoor Use And For Functions In Countless Functions The Place It The Use Of Large-Sized Tools Is Extraordinarily Difficult.
Skid Steer Loader Specifications
| tem | Model | TWSS65 | TWSS100 |
| 1 | Operating load (kg) | 1000 | 1200 |
| 2 | Max Speed(km/h) | 12/18 | 12/18 |
| 3 | Rated flux (L/min) | 75 | 88 |
| 4 | Tire(track) model | 320X84 | 320X84 |
| 5 | Rated power (kW/HP) | 55/75 | 74/100 |
| 6 | Fuel tank capacity (L) | 80 | 90 |
| 7 | Self weight bucket (kg) | 3800 | 4500 |
| 8 | Bucket capacity (m 3 ) | 0.5 | 0.55 |
| A | Overall operating height (mm) | 3480 | 4070 |
| B | Height to bucket hinge pin (mm) | 2900 | 3150 |
| C | height to top of cab (mm) | 2150 | 2160 |
| D | Height to bottom of level bucket(mm) | 2730 | 2983 |
| E | Overall length without bucket(mm) | 2750 | 3000 |
| F | Overall length with bucket(mm) | 3500 | 3700 |
| G | Dumping angle at maximum height(° ) | 40 | 40 |
| H | Dumping height(mm) | 2230 | 2450 |
| I | Dumping reach(mm) | 715 | 700 |
| J | Rollback o bucket on ground(° ) | 30 | 30 |
| K | Rollback of bucket at full height(° ) | 104 | 104 |
| L | Wheelbase(mm) | 1500 | 1500 |
| M | Ground clearance(mm) | 200 | 200 |
| N | Angle of departure(° ) | 20 | 20 |
| O | Front turning radius without bucket(mm) | 1298 | 1365 |
| P | Front tuning radius(mm) | 2010 | 2200 |
| Q | Rear tuning radius(mm) | 1714 | 1742 |
| R | Rear axle to bumper (mm) | 890 | 938 |
| S | Tread width, centerline to centerline (mm) | 1462 | 1654 |
| T | Width (mm) | 1782 | 1994 |
| U | Bucket width (mm) | 1830 | 2030 |
Product Details
Skid Steer Hydraulic Connector Skid Steer Loader Cabin Skid Steer Loader Radiator
Skid Steer Loader Panel Skid Steer Loader Pilot Lever Skid Steer Loader Quick Hitch
Company Profile
Shandong Topwin Machinery Co.,Ltd. (Topwin For Short) Is The One-Stop Solution Provider For Construction Machinery, Mining Machinery, Agricultural Machinery And Logistic Machinery In China.
tem | Model | TWS35 | TWS45G | TWS60G | TWS65B | TWS100 | TWSS65 | TWSS100 |
1 | Operating load (kg) | 500 | 700 | 850 | 950 | 1200 | 1000 | 1200 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 | 12/18 | 12/18 | 12/18 |
3 | Rated flux (L/min) | 60 | 75 | 75 | 80 | 80 | 75 | 88 |
4 | Tire(track) model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 320X84 | 320X84 |
5 | Rated power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 | 74/100 | 55/75 | 74/100 |
6 | Fuel tank capacity (L) | 60 | 65 | 80 | 75 | 90 | 80 | 90 |
7 | Self weight bucket (kg) | 2300 | 3000 | 3200 | 3350 | 3550 | 3800 | 4500 |
8 | Bucket capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 | 0.55 | 0.5 | 0.55 |
A | Overall operating height (mm) | 3300 | 3980 | 4000 | 4000 | 4070 | 3480 | 4070 |
B | Height to bucket hinge pin (mm) | 2725 | 3080 | 3100 | 3100 | 3150 | 2900 | 3150 |
C | height to top of cab (mm) | 2000 | 2140 | 2160 | 2160 | 2160 | 2150 | 2160 |
D | Height to bottom of level bucket(mm) | 2558 | 2913 | 2933 | 2933 | 2983 | 2730 | 2983 |
E | Overall length without bucket(mm) | 2300 | 2640 | 2750 | 2750 | 2880 | 2750 | 3000 |
F | Overall length with bucket(mm) | 3080 | 3420 | 3490 | 3490 | 3580 | 3500 | 3700 |
G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 | 2450 | 2230 | 2450 |
I | Dumping reach(mm) | 790 | 700 | 750 | 750 | 700 | 715 | 700 |
J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 | 1185 | 1500 | 1500 |
M | Ground clearance(mm) | 140 | 185 | 205 | 205 | 205 | 200 | 200 |
N | Angle of departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 | 1278 | 1298 | 1365 |
P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 | 2144 | 2010 | 2200 |
Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 | 1857 | 1714 | 1742 |
R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 | 1082 | 890 | 938 |
S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 | 1500 | 1462 | 1654 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 | 1880 | 1782 | 1994 |
U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 | 1880 | 1830 | 2030 |
