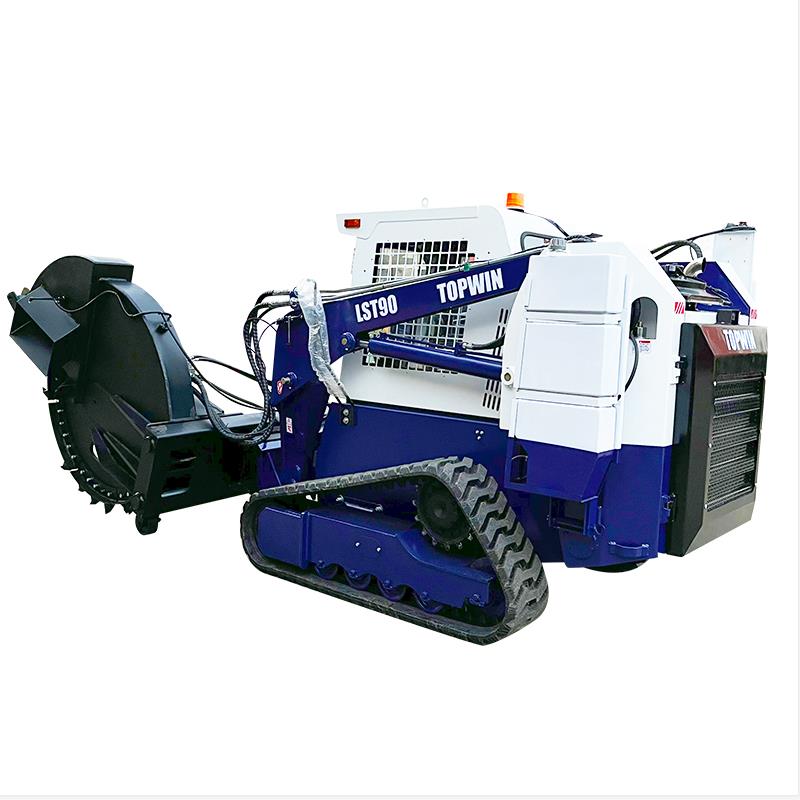

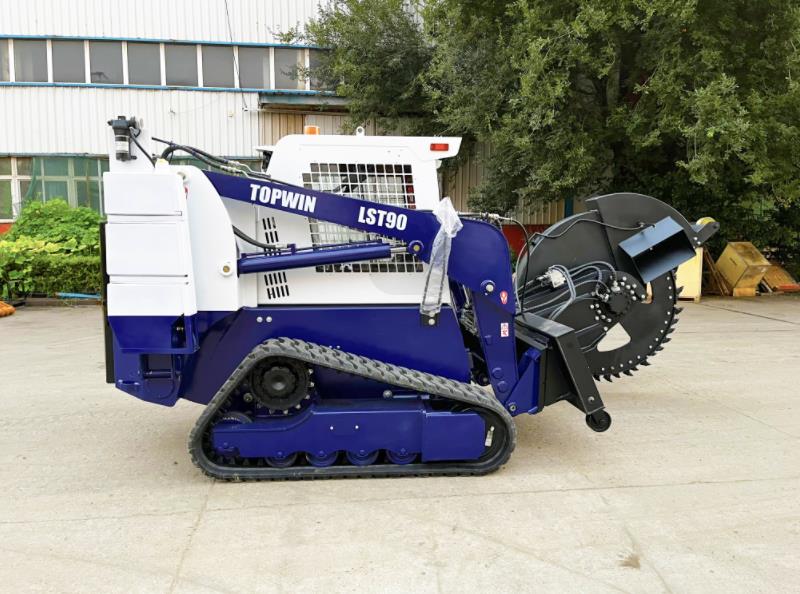

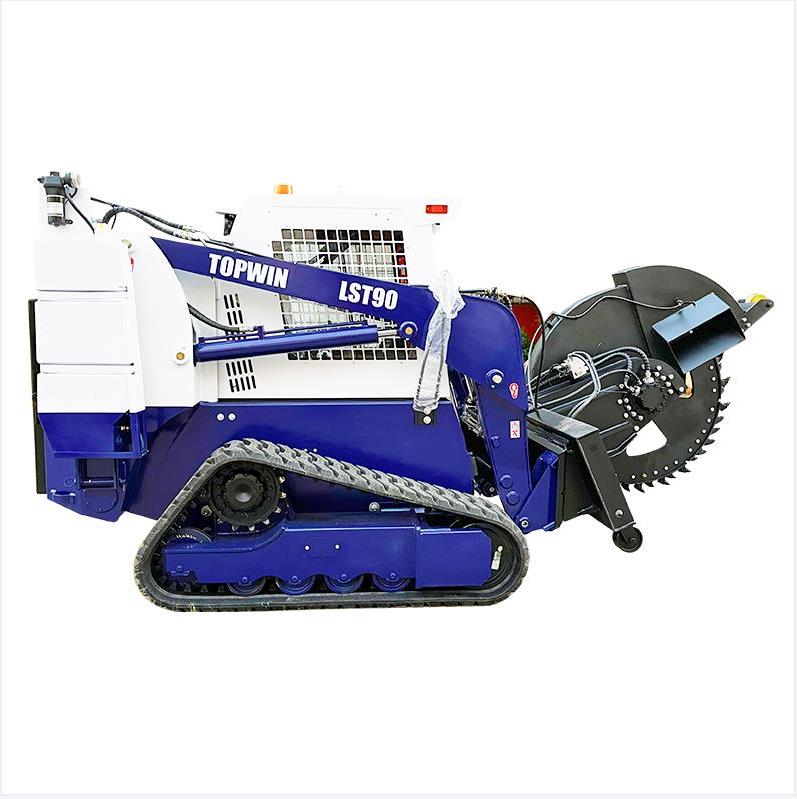

Wheel Saw For Skid Steer
Lst100 74Kw Skid Steer With Rated Load 1200Kg
Main Features :
1 Compact Structure,Maneuverable Movement Suitable For Narrow Space Operation
2 Closed Cabin With Joystick Control System
3 Multi-Function With a Wide Range Of Attachments
4 Hydraulic Brake
5 Extend Wheelbase
Features;
Full Hydraulic Control System
Full Hydraulic Manage Device Offers Expanded Productivity, Decreased Operator Fatigue, Steady Performance. It Controls The Hydraulic Fluid To Acquire Breaking. The Hydraulic Manipulate Systen Prevents Operator's Erroneous Operation, Optimizes Inside Hydraulic Components, And Noticeably Reduces The Intermediate Links.
Powerful Perkins/Kubota/Deutz/Xinchai Engine
The Newest Perkins/Kubota/Deutz/Xinchai Engine Technology Is Used In The Wheel Loader. The New Diesels Have Economic Fuel Consumption Values.
Optimization Of The Machine Structure
Optumized The Structure Of Components, Increased Ground Clearance Is Based On The Assurance Of Machine's Stability Of Vertical And Horizontal Element. Intgrated Electromagnetic Valve Controls The Speed, Break, Attachment Valve Sheet In Muli-Way Valve, Simplifies The Hydraulic Pipe Routings. Rapid Lower Device Allow The Lift Arm Lower Quickly After Working. The Joystick Control Lwver Has a Electric Magnetic Self-Lock System, Which Could Prevent The Operator's Faulty Operation Automatically.
Serviceability
Skid Steers Have Long Been The Best For Serviceability, With All Service And Maintenance Points Easily Accessible Through The Rear Of The Machine, While The Tilting Cab Provides Easy Access For Repairs

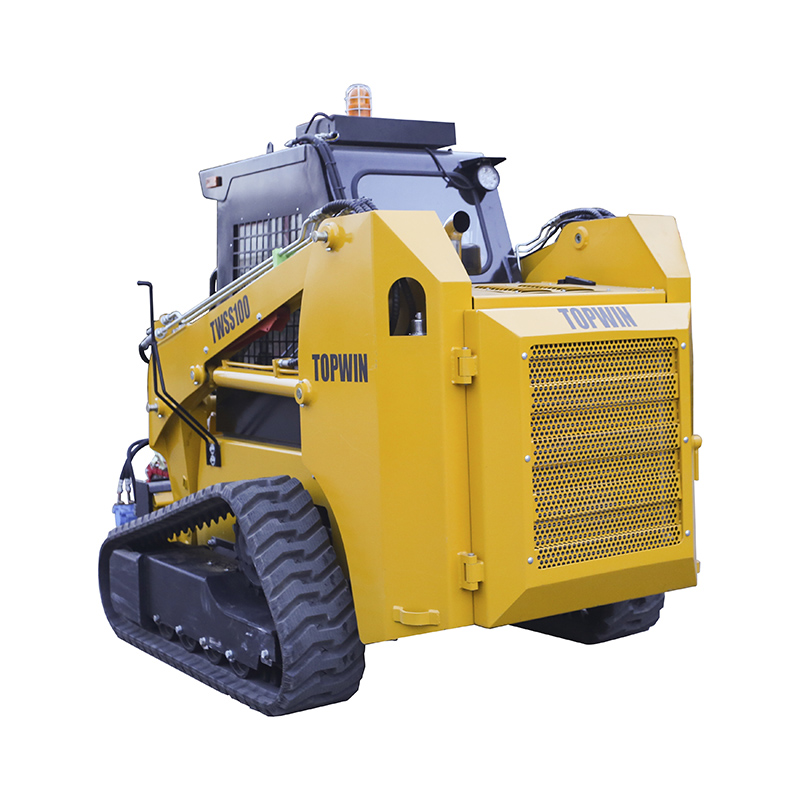

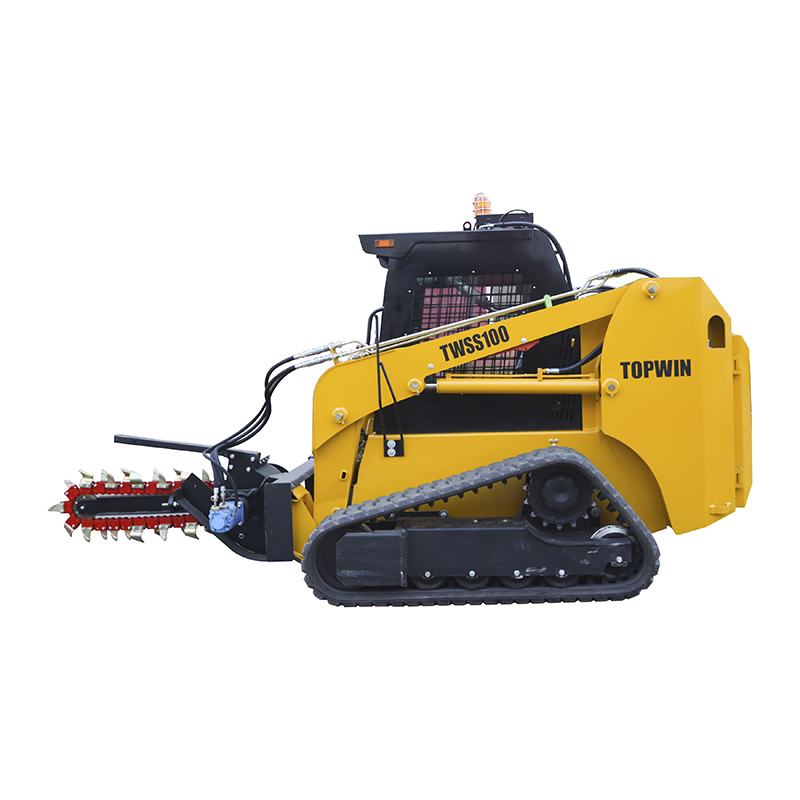

SN | Model | LST100 (TWSS100) |
1 | Type | Tracked type |
2 | Operating load (kg) | 1200 |
3 | Max Speed(km/h) | 12/15 |
4 | Rated flux (L/min) | 88 |
5 | Tire(track) model | 320X84 |
6 | Rated power (kW/HP) | 74/100 |
7 | Fuel tank capacity (L) | 90 |
8 | Self weight bucket (kg) | 4500 |
A | Bucket capacity (m 3 ) | 0.55 |
B | Overall operating height (mm) | 4070 |
C | Height to bucket hinge pin (mm) | 3150 |
D | height to top of cab (mm) | 2160 |
E | Height to bottom of level bucket(mm) | 2983 |
F | Overall length without bucket(mm) | 3000 |
G | Overall length with bucket(mm) | 3700 |
H | Dumping angle at maximum height(° ) | 40 |
I | Dumping height(mm) | 2450 |
J | Dumping reach(mm) | 700 |
K | Rollback o bucket on ground(° ) | 30 |
L | Rollback of bucket at full height(° ) | 104 |
M | Wheelbase(mm) | 1500 |
N | Ground clearance(mm) | 200 |
O | Angle of departure(° ) | 20 |
P | Front turning radius without bucket(mm) | 1365 |
Q | Front tuning radius(mm) | 2200 |
R | Rear tuning radius(mm) | 1742 |
S | Rear axle to bumper (mm) | 938 |
T | Tread width, centerline to centerline (mm) | 1654 |
U | Width (mm) | 1994 |
W | Bucket width (mm) | 2030 |

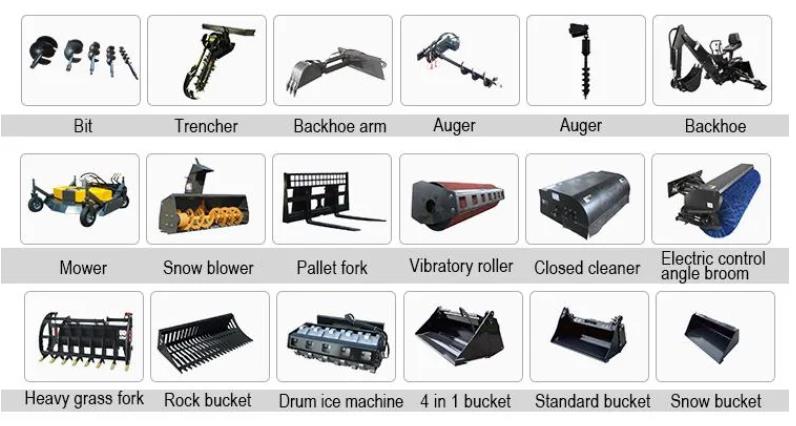

Skid Steer Loader Attachments
