Wheel Loaders For Sale In Canada
New Rops & Fops Cabin, Safety, Spacious And Comfortable.
New Frame, Wider Steel Plate Is Stronger.
New Engine Hood, Better Heat Dissipation.
Product Details

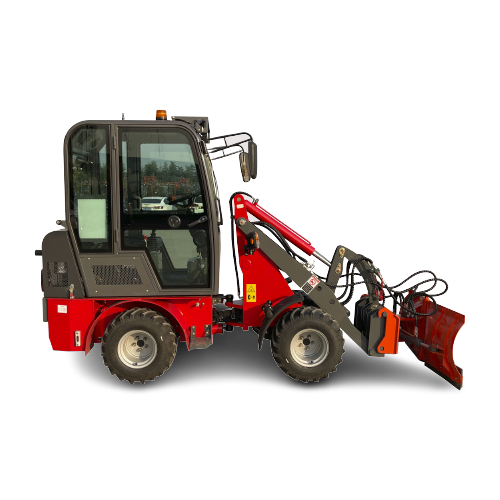

TOPWIN LE10 Is One Progressive Loader, With New Totally Appearance, From New Structure, Frame, Rear Hood And Cabin, You Can Without Difficulty Locate Out The Variations From Ordinary Loader. Open Cabin And Enclosed Cabin Meets Your Exclusive Demands. It Has Been Extensively Welcomed By Means Of European Clients When Published.
Wheel Loaders For Sale
| LE10 Electric wheel loaders specification | |||
| Performance | Rated Load（t) | 1 | |
| Bucket rated capacity（m³) | 0.4 | ||
| Dumping height（mm)（at 45°） | 2200 | ||
| Lifting Height（mm) | 3400 | ||
| Dumping Reach（mm) | 650 | ||
| Max. Lifting weight（kg） | 1000 | ||
| Max. Excavation Force（kg) | 1100 | ||
| Max. Grade ability (°) | 18 | ||
| Max. Turning Angel (°) | 29±1 | ||
| Dimensions. &.Weight | Overall length（Bucket on Ground position）(mm) | 4460 | |
| Bucket width（overall width）(mm) | 1600 | ||
| Overall Height (mm) | 2230 | ||
| Wheel base (mm) | 1100 | ||
| Min Ground Clearance(mm) | 210 | ||
| Net Weight（kg) | 2340 | ||
| Battery | Battery Model No. | 3-EVF-200A | |
| Rated capacity（3hr) | 200Ah | ||
| No.of battery groups | 12 | ||
| Rated Voltage（v） | 72 | ||
| Working hours（h） | 4 | ||
| Transmission System | Hydraulic System | Motor No. | YQP5-72AF-48P |
| Voltage（v） | 72 | ||
| Power（W） | 5000 | ||
| Displacement（ml/r) | 14 | ||
| Tyres | Type | 29*12.50-15 | |
| Working pressure（mpa) | 0.3 | ||
| Qty | 4 | ||
| Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
| System Pressure（mpa) | 16 | ||
| Type of Steering Pump | Gear Pump | ||
| Steering Cylinder Bore（mm) | Ø75 | ||
| Qty（pc） | 2 | ||
| Braking System | Service Brake | Drum Brake | |
| Brake Drum（mm) | 240 | ||
| Parking Brake | Drum Brake | ||
| Dumping Cylinder-Bore（mm) | Ø80 | ||
| Lifting Cylinder-Bore（mm) | Ø90 | ||
| Oil Capacity | Hydraulic Oil Tank（L) | 54 | |
| Brake Fluid（L) | 0.8 | ||
Details
Attachments For Mini Wheel Loader
| LE10 Electric wheel loader specification | |||
| Performance | Rated Load（t) | 1 | |
| Bucket rated capacity（m³) | 0.4 | ||
| Dumping height（mm)（at 45°） | 2200 | ||
| Lifting Height（mm) | 3400 | ||
| Dumping Reach（mm) | 650 | ||
| Max. Lifting weight（kg） | 1000 | ||
| Max. Excavation Force（kg) | 1100 | ||
| Max. Grade ability (°) | 18 | ||
| Max. Turning Angel (°) | 29±1 | ||
| Dimensions. &.Weight | Overall length（Bucket on Ground position）(mm) | 4460 | |
| Bucket width（overall width）(mm) | 1600 | ||
| Overall Height (mm) | 2230 | ||
| Wheel base (mm) | 1100 | ||
| Min Ground Clearance(mm) | 210 | ||
| Net Weight（kg) | 2340 | ||
| Battery | Battery Model No. | 3-EVF-200A | |
| Rated capacity（3hr) | 200Ah | ||
| No.of battery groups | 12 | ||
| Rated Voltage（v） | 72 | ||
| Working hours（h） | 4 | ||
| Transmission System | Hydraulic System | Motor No. | YQP5-72AF-48P |
| Voltage（v） | 72 | ||
| Power（W） | 5000 | ||
| Displacement（ml/r) | 14 | ||
| Tyres | Type | 29*12.50-15 | |
| Working pressure（mpa) | 0.3 | ||
| Qty | 4 | ||
| Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
| System Pressure（mpa) | 16 | ||
| Type of Steering Pump | Gear Pump | ||
| Steering Cylinder Bore（mm) | Ø75 | ||
| Qty（pc） | 2 | ||
| Braking System | Service Brake | Drum Brake | |
| Brake Drum（mm) | 240 | ||
| Parking Brake | Drum Brake | ||
| Dumping Cylinder-Bore（mm) | Ø80 | ||
| Lifting Cylinder-Bore（mm) | Ø90 | ||
| Oil Capacity | Hydraulic Oil Tank（L) | 54 | |
| Brake Fluid（L) | 0.8 | ||
