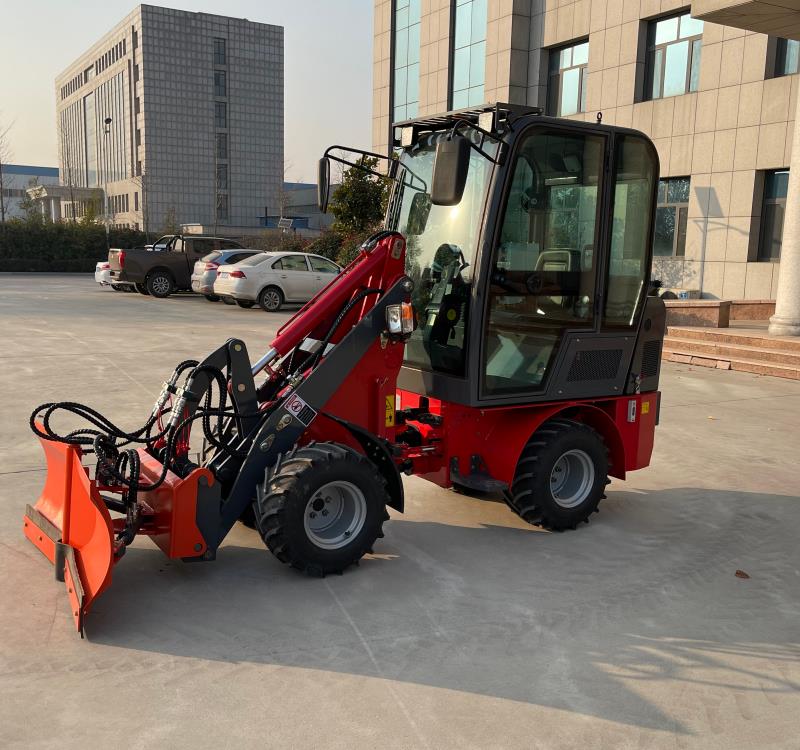

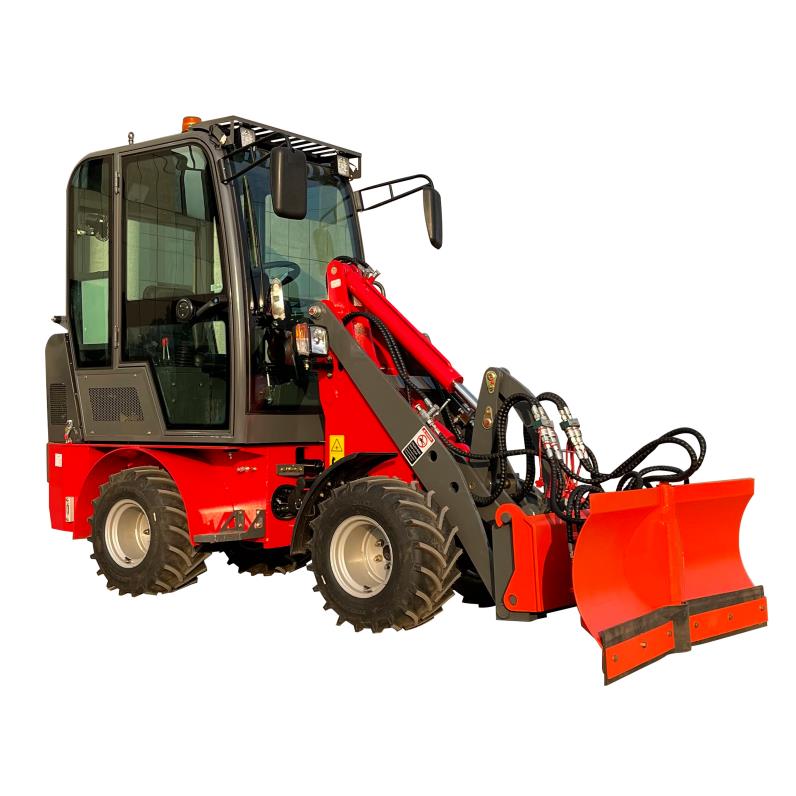

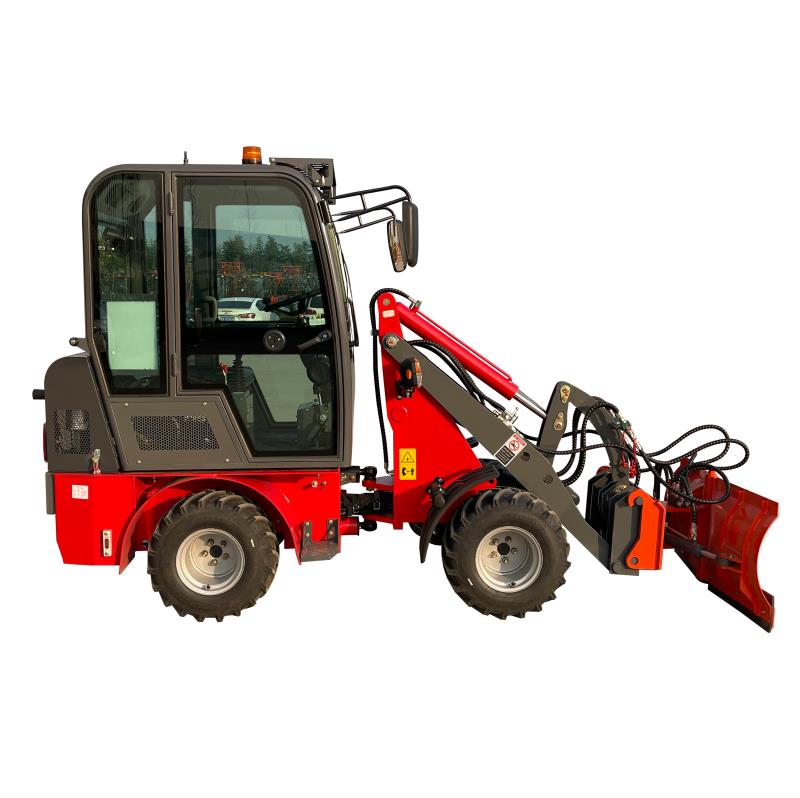

Wheel Loaders With Snow Blade
The Patented Topwin Cabin With Tiltable Diagram
Meet Rops And Fops Standard.
Hydraulic Speedy Hitch To Change Attachments Without Problems And Simply
Product Details
Product Application
Hydraulic Stress Checking Machine For Bother Shooting
Strong Axle To Meet Numerous Terrains And Traction Requirements
Hydraulic Transmission Gadget Provides Ultimate Strength And Excessive Efficiency
Optional Tires For Each And Every Surface, There Are a Massive Choice Of Extraordinary Tires On Hand For Your Machine.
| LE10 Electric wheel loader specification | |||
| Performance | Rated Load（t) | 1 | |
| Bucket rated capacity（m³) | 0.4 | ||
| Dumping height（mm)（at 45°） | 2200 | ||
| Lifting Height（mm) | 3400 | ||
| Dumping Reach（mm) | 650 | ||
| Max. Lifting weight（kg） | 1000 | ||
| Max. Excavation Force（kg) | 1100 | ||
| Max. Grade ability (°) | 18 | ||
| Max. Turning Angel (°) | 29±1 | ||
| Dimensions. &.Weight | Overall length（Bucket on Ground position）(mm) | 4460 | |
| Bucket width（overall width）(mm) | 1600 | ||
| Overall Height (mm) | 2230 | ||
| Wheel base (mm) | 1100 | ||
| Min Ground Clearance(mm) | 210 | ||
| Net Weight（kg) | 2340 | ||
| Battery | Battery Model No. | 3-EVF-200A | |
| Rated capacity（3hr) | 200Ah | ||
| No.of battery groups | 12 | ||
| Rated Voltage（v） | 72 | ||
| Working hours（h） | 4 | ||
| Transmission System | Hydraulic System | Motor No. | YQP5-72AF-48P |
| Voltage（v） | 72 | ||
| Power（W） | 5000 | ||
| Displacement（ml/r) | 14 | ||
| Tyres | Type | 29*12.50-15 | |
| Working pressure（mpa) | 0.3 | ||
| Qty | 4 | ||
| Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
| System Pressure（mpa) | 16 | ||
| Type of Steering Pump | Gear Pump | ||
| Steering Cylinder Bore（mm) | Ø75 | ||
| Qty（pc） | 2 | ||
| Braking System | Service Brake | Drum Brake | |
| Brake Drum（mm) | 240 | ||
| Parking Brake | Drum Brake | ||
| Dumping Cylinder-Bore（mm) | Ø80 | ||
| Lifting Cylinder-Bore（mm) | Ø90 | ||
| Oil Capacity | Hydraulic Oil Tank（L) | 54 | |
| Brake Fluid（L) | 0.8 | ||
Details
Attachments For Mini Wheel Loader
| LE10 Electric wheel loader specification | |||
| Performance | Rated Load（t) | 1 | |
| Bucket rated capacity（m³) | 0.4 | ||
| Dumping height（mm)（at 45°） | 2200 | ||
| Lifting Height（mm) | 3400 | ||
| Dumping Reach（mm) | 650 | ||
| Max. Lifting weight（kg） | 1000 | ||
| Max. Excavation Force（kg) | 1100 | ||
| Max. Grade ability (°) | 18 | ||
| Max. Turning Angel (°) | 29±1 | ||
| Dimensions. &.Weight | Overall length（Bucket on Ground position）(mm) | 4460 | |
| Bucket width（overall width）(mm) | 1600 | ||
| Overall Height (mm) | 2230 | ||
| Wheel base (mm) | 1100 | ||
| Min Ground Clearance(mm) | 210 | ||
| Net Weight（kg) | 2340 | ||
| Battery | Battery Model No. | 3-EVF-200A | |
| Rated capacity（3hr) | 200Ah | ||
| No.of battery groups | 12 | ||
| Rated Voltage（v） | 72 | ||
| Working hours（h） | 4 | ||
| Transmission System | Hydraulic System | Motor No. | YQP5-72AF-48P |
| Voltage（v） | 72 | ||
| Power（W） | 5000 | ||
| Displacement（ml/r) | 14 | ||
| Tyres | Type | 29*12.50-15 | |
| Working pressure（mpa) | 0.3 | ||
| Qty | 4 | ||
| Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
| System Pressure（mpa) | 16 | ||
| Type of Steering Pump | Gear Pump | ||
| Steering Cylinder Bore（mm) | Ø75 | ||
| Qty（pc） | 2 | ||
| Braking System | Service Brake | Drum Brake | |
| Brake Drum（mm) | 240 | ||
| Parking Brake | Drum Brake | ||
| Dumping Cylinder-Bore（mm) | Ø80 | ||
| Lifting Cylinder-Bore（mm) | Ø90 | ||
| Oil Capacity | Hydraulic Oil Tank（L) | 54 | |
| Brake Fluid（L) | 0.8 | ||
