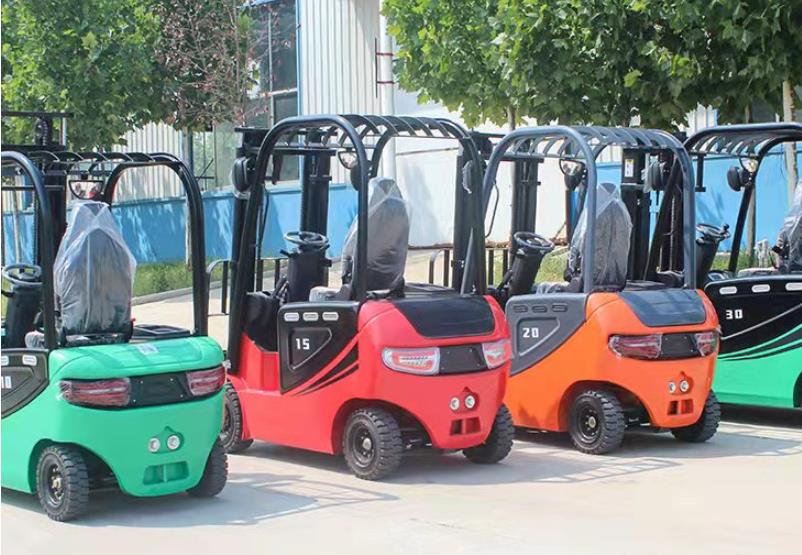

TOPWIN Mini Warehouse Electric Forklift

Advantages:1ton 1000kg Fe10 4 Wheels Smart Mini Battery Electric Counterbalanced Electric Forklift Truck Ce Iso

Curtis Controller, Precise Operation, Maintenance-Free And Reliable;

Dc Hydraulic Motor ,Larger Starting Torque, Uniform Speed Regulation Under Heavy Load;

Sme Ac Controller, Strong Power; Smooth Operation; Side Layout For Convenient Maintenance And Replacement;

48V/450Ah Large-Capacity Lead-Acid Battery,Suitable For High Using Frequency;

Wide Field Of View Door Frame, Improve The Safety Of Operation;

Load Sensing Hydraulic Steering System, Lightweight, Low Noise, More Labor-Saving;

Ops(Operating Presence Sensing),Safer And More User-Friendly (Optional);

Explosion-Proof Valve Is Installed At The Bottom Of The Lifting Cylinder, Even If The Oil Pipe Is Broken, The Door Frame Will Not Fall Rapidly;

Lower And Wider Steps And Spacious Space Can Reduce The Intensity Of Driving;

 Fully Open Cover Makes Battery Replacement And Maintenance Easier.

Solid Tire, Strong Bearing Capacity;

 The Whole Car Is Equipped With Led Lights, Energy Saving And High Efficiency.

Both Imported And Domestic Forklift Batteries Have a Cycle Life Cycle. As a User, How To Give Full Play To The Battery Life Depends On The Correct Use In The Later Stage. Here Are Some Maintenance Elements:

1. Daily Maintenance

1) The Battery Should Be Charged Immediately After Each Discharge.

2) Each Discharge Should Not Exceed 80% Of The Total Battery Capacity.

2. Weekly Maintenance

1) Check If The Cable Screws Between The Battery Units Are Secure.

2) If The Battery Is Not Equipped With An Automatic Filling System, After Charging, Check The Level Of The Electrolyte. When It Is Lower Than The Allowable Liquid Level (The Height Of The Separation Plate Or The Specified Height), Add Qualified Distilled Water To The Specified Height. When There Is Too Much Electrolyte, It Should Be Pumped Out To The Specified Height.

3) Check Whether There Is Water In The Battery Box, And Drain It Immediately If Any Water Is Found.

3. Monthly Maintenance

1) Before The End Of Charging, Check The Voltage Of All Electrode Units And Battery. And Make a Record.

2) After Charging, The Electrolyte Density And Temperature Of Each Battery Cell Should Be Measured And Recorded. If There Is a Big Difference From The Previous Measurement, It Should Be Checked By a Professional.

4. Annual Maintenance

1) The Battery Should Be Inspected By Professionals Once a Year For The Insulation Resistance Of The Forklift And The Insulation Resistance Of The Battery. The Specified Insulation Resistance Of The Battery Is 50 Ohms/Volt. A Resistance Of At Least 1000 Ohms To The Entire Battery (Voltage Up To 220 Volts).

2) Check The Charger According To The Instructions. Make Sure All Functions Are Normal
