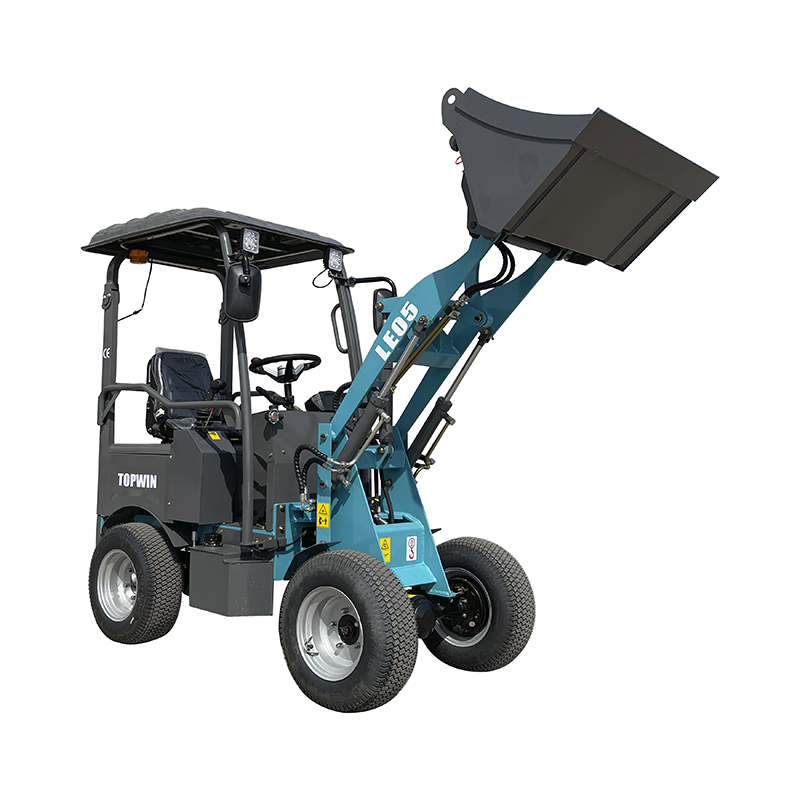

600kg Mini Electric Articulating Wheel Loader
Brand Le05 Mini Electric Wheel Loader,
Which Loading Capacity Is 600kgs.
Really Zero And Green Emission.
Electric Samll Wheel Loader Is a Sort Of Extensively Used In Highway, Railway, Construction, Water And Electricity, Port, Mine And Other Building Machinery, It Is Mostly Used To Shovel Soil, Sand, Lime, Coal And Different Scattered Materials, Can Additionally Be Moderate Shovel Of Ore And Challenging Soil.The Substitute Of One-Of-a-Kind Auxiliary Working Gadgets Can Additionally Be Loading And Unloading Soil, Lifting And Different Substances Such As Wood.
Performance | Rated Load（t) | 0.5 | |
Bucket rated capacity（m)³ | 0.2 | ||
Dumping height（mm) | 1350 | ||
（at 45°） | |||
Lifting Height（mm) | 2100 | ||
Dumping Reach（mm) | 450 | ||
Max. Lifting weight（kg） | 400 | ||
Max. Excavation Force（kn) | 8 | ||
Max. Grade ability | 15 | ||
Max. Turning Angel | 28°±1 | ||
Swing degree of the rear axle | 3 | ||
Dimensions. &.Weight | Overall length（Bucket on Ground position）mm | 2900 | |
Bucket width（overall width） | 900 | ||
Overall Height(mm) | 2070 | ||
Wheel base(mm) | 1387 | ||
Min Ground Clearance(mm) | 300 | ||
Net Weight（kg) | 1000kg | ||
Battery | Battery Model No. | 6-EVF-100A | |
rated capacity（3hr) | 100Ah | ||
No.of battery groups | 5 | ||
Rated Voltage | 60V | ||
Working hours（h） | 4h | ||
Transmission System | Hydraulic System | Motor No. | HL-60 |
Voltage | 60V | ||
Power | 1200W | ||
Displacement（ml/r) | 14 | ||
Tyres | Type | 6.00-12 | |
working pressure（mpa) | 0.25 | ||
Qty | 4 | ||
Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
System Pressure（mpa) | 16 | ||
Type of Steering Pump | External Gear Pump | ||
Steering Cylinder Bore（mm) | 50 | ||
Qty（pc） | 1 | ||
Braking System | Service Brake | Drum Brake | |
Brake Drum（mm) | 200 | ||
Parking Brake | Drum Brake | ||
Distribution Valve | Model | DL10 | |
Type | Triple valve stem | ||
Dumping Cylinder-Bore | ø50 | ||
Lifting Cylinder-Bore | ø50 | ||
Oil Capacity | Hydraulic Oil Tank（L) | 11 | |
Brake Fluid（L) | 0.8 | ||
