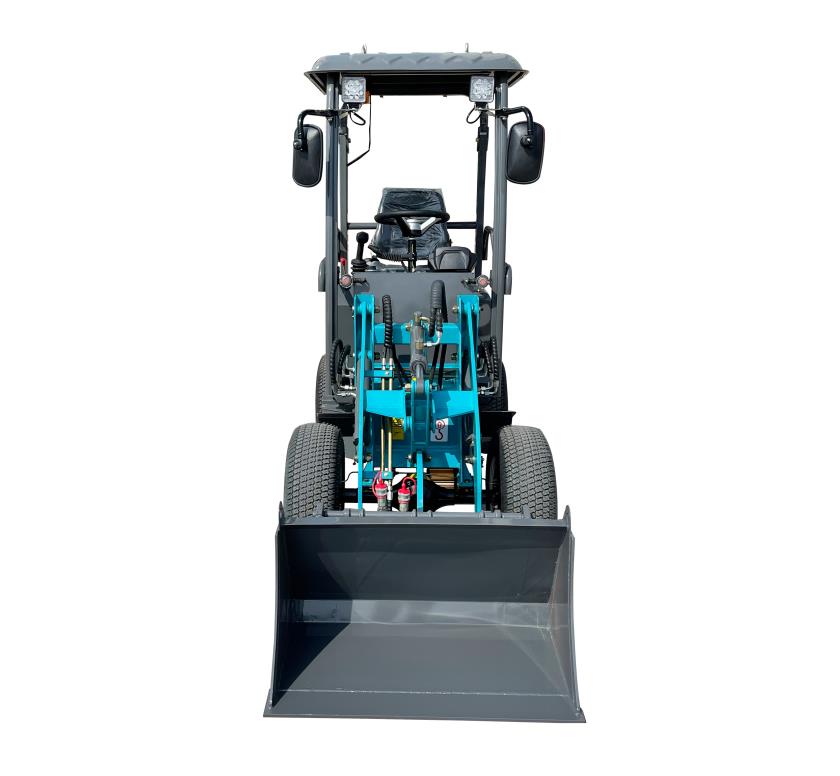

Chinese Compact Mini Wheel Loader
Hydrostatic transmission
by pump and 4 wheel motors
variable speed
Flexible articulation
best through ability for all terrain
Front Phase Is Loader, With Telescopic Boom,
Hydraulic Output, Rapid Hitch And Coupling
Device For More Than a Few Attachments,
Like Bucket, Fork, Grapple, Auger, Hammer, Garden Mower, Etc.
Performance | Rated Load（t) | 0.5 | |
Bucket rated capacity（m)³ | 0.2 | ||
Dumping height（mm) | 1350 | ||
（at 45°） | |||
Lifting Height（mm) | 2100 | ||
Dumping Reach（mm) | 450 | ||
Max. Lifting weight（kg） | 400 | ||
Max. Excavation Force（kn) | 8 | ||
Max. Grade ability | 15 | ||
Max. Turning Angel | 28°±1 | ||
Swing degree of the rear axle | 3 | ||
Dimensions. &.Weight | Overall length（Bucket on Ground position）mm | 2900 | |
Bucket width（overall width） | 900 | ||
Overall Height(mm) | 2070 | ||
Wheel base(mm) | 1387 | ||
Min Ground Clearance(mm) | 300 | ||
Net Weight（kg) | 1000kg | ||
Battery | Battery Model No. | 6-EVF-100A | |
rated capacity（3hr) | 100Ah | ||
No.of battery groups | 5 | ||
Rated Voltage | 60V | ||
Working hours（h） | 4h | ||
Transmission System | Hydraulic System | Motor No. | HL-60 |
Voltage | 60V | ||
Power | 1200W | ||
Displacement（ml/r) | 14 | ||
Tyres | Type | 6.00-12 | |
working pressure（mpa) | 0.25 | ||
Qty | 4 | ||
Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
System Pressure（mpa) | 16 | ||
Type of Steering Pump | External Gear Pump | ||
Steering Cylinder Bore（mm) | 50 | ||
Qty（pc） | 1 | ||
Braking System | Service Brake | Drum Brake | |
Brake Drum（mm) | 200 | ||
Parking Brake | Drum Brake | ||
Distribution Valve | Model | DL10 | |
Type | Triple valve stem | ||
Dumping Cylinder-Bore | ø50 | ||
Lifting Cylinder-Bore | ø50 | ||
Oil Capacity | Hydraulic Oil Tank（L) | 11 | |
Brake Fluid（L) | 0.8 | ||
Details
Attachments For Mini Wheel Loader
