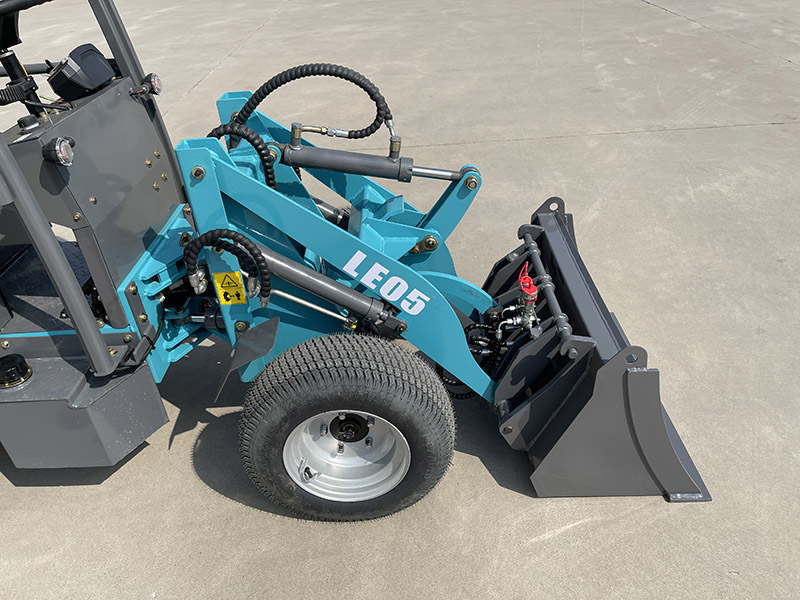

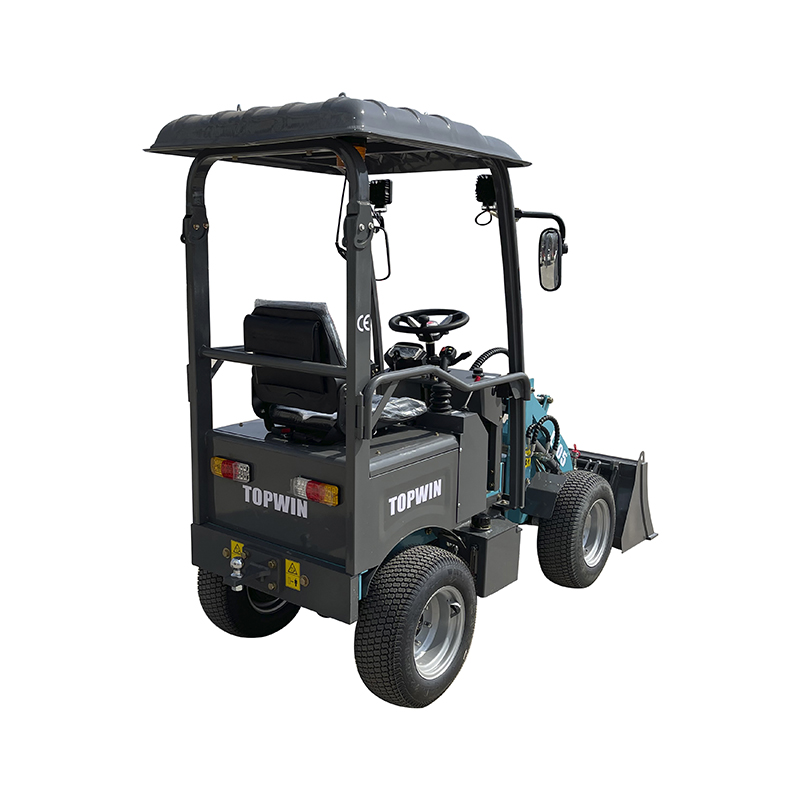

LE05 Electric Wheel Loader
compact articulated mini loader
great performance with the size of a small loader
remains efficient even in tight spaces
increase your versatility
work smarter and get more done
500kg electric front mini wheel loader compact articulated mini compact loaders combine serious performance with small loader sizes so you can be productive, even in tight spaces. Pair them with a snow blower, grapple, pallet fork, broom or other attachment to increase your versatility, work smarter, and accomplish even more.
Performance | Rated Load（t) | 0.5 | |
Bucket rated capacity（m)³ | 0.2 | ||
Dumping height（mm) | 1350 | ||
（at 45°） | |||
Lifting Height（mm) | 2100 | ||
Dumping Reach（mm) | 450 | ||
Max. Lifting weight（kg） | 400 | ||
Max. Excavation Force（kn) | 8 | ||
Max. Grade ability | 15 | ||
Max. Turning Angel | 28°±1 | ||
Swing degree of the rear axle | 3 | ||
Dimensions. &.Weight | Overall length（Bucket on Ground position）mm | 2900 | |
Bucket width（overall width） | 900 | ||
Overall Height(mm) | 2070 | ||
Wheel base(mm) | 1387 | ||
Min Ground Clearance(mm) | 300 | ||
Net Weight（kg) | 1000kg | ||
Battery | Battery Model No. | 6-EVF-100A | |
rated capacity（3hr) | 100Ah | ||
No.of battery groups | 5 | ||
Rated Voltage | 60V | ||
Working hours（h） | 4h | ||
Transmission System | Hydraulic System | Motor No. | HL-60 |
Voltage | 60V | ||
Power | 1200W | ||
Displacement（ml/r) | 14 | ||
Tyres | Type | 6.00-12 | |
working pressure（mpa) | 0.25 | ||
Qty | 4 | ||
Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
System Pressure（mpa) | 16 | ||
Type of Steering Pump | External Gear Pump | ||
Steering Cylinder Bore（mm) | 50 | ||
Qty（pc） | 1 | ||
Braking System | Service Brake | Drum Brake | |
Brake Drum（mm) | 200 | ||
Parking Brake | Drum Brake | ||
Distribution Valve | Model | DL10 | |
Type | Triple valve stem | ||
Dumping Cylinder-Bore | ø50 | ||
Lifting Cylinder-Bore | ø50 | ||
Oil Capacity | Hydraulic Oil Tank（L) | 11 | |
Brake Fluid（L) | 0.8 | ||
