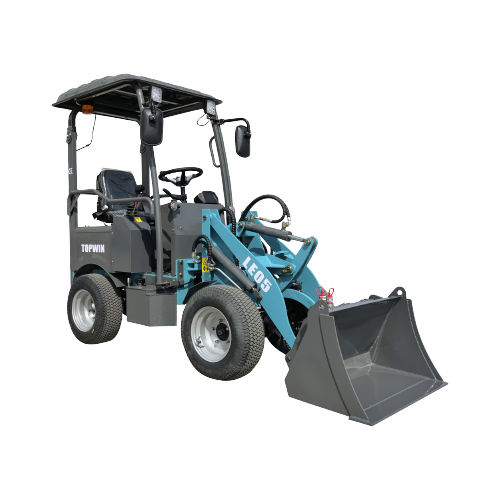

LE05 Mini Wheel Loader
Wide view cabin more user friendly
Adjusting steering column
always a comforable position for the operator
Hydraulic quick hitch
Standard heating system and optional A.C offer full weather comfort.
Telescopic boom increase the lifting height.
Front hydraulic and electric output for various attachments
Hydraulic quick hitch
Compact size, articulated structure, small turning radius
Performance | Rated Load（t) | 0.5 | |
Bucket rated capacity（m)³ | 0.2 | ||
Dumping height（mm) | 1350 | ||
（at 45°） | |||
Lifting Height（mm) | 2100 | ||
Dumping Reach（mm) | 450 | ||
Max. Lifting weight（kg） | 400 | ||
Max. Excavation Force（kn) | 8 | ||
Max. Grade ability | 15 | ||
Max. Turning Angel | 28°±1 | ||
Swing degree of the rear axle | 3 | ||
Dimensions. &.Weight | Overall length（Bucket on Ground position）mm | 2900 | |
Bucket width（overall width） | 900 | ||
Overall Height(mm) | 2070 | ||
Wheel base(mm) | 1387 | ||
Min Ground Clearance(mm) | 300 | ||
Net Weight（kg) | 1000kg | ||
Battery | Battery Model No. | 6-EVF-100A | |
rated capacity（3hr) | 100Ah | ||
No.of battery groups | 5 | ||
Rated Voltage | 60V | ||
Working hours（h） | 4h | ||
Transmission System | Hydraulic System | Motor No. | HL-60 |
Voltage | 60V | ||
Power | 1200W | ||
Displacement（ml/r) | 14 | ||
Tyres | Type | 6.00-12 | |
working pressure（mpa) | 0.25 | ||
Qty | 4 | ||
Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
System Pressure（mpa) | 16 | ||
Type of Steering Pump | External Gear Pump | ||
Steering Cylinder Bore（mm) | 50 | ||
Qty（pc） | 1 | ||
Braking System | Service Brake | Drum Brake | |
Brake Drum（mm) | 200 | ||
Parking Brake | Drum Brake | ||
Distribution Valve | Model | DL10 | |
Type | Triple valve stem | ||
Dumping Cylinder-Bore | ø50 | ||
Lifting Cylinder-Bore | ø50 | ||
Oil Capacity | Hydraulic Oil Tank（L) | 11 | |
Brake Fluid（L) | 0.8 | ||
