Small Compact Wheel Loader Hot Sale Ebay
Equipped With Both 2 Wheel Drive And 4wheel Drive;
Low Noise.
Long Time 4 Hours Working Time After Battery Charge Full.
The Road, Particularly In The Building Of High-Grade Highway, Mini Wheel Loader Is Used For Subgrade Engineering Filling, Asphalt Combination And Cement Concrete Yard Mixture And Loading Operations.In Addition, You Can Push The Soil, Scraping The Floor And Pulling Different Machinery.Because The Small Wheel Loader Has The Benefits Of Speedy Operation Speed, Excessive Efficiency, Exact Mobility, Mild Operation, So It Has Emerge As One Of The Fundamental Sorts Of Earthwork Building In Engineering Construction, Particularly Appropriate For The Inner Unfastened Fabric Shovel, Underground Roadway And All Types Of Closed House Shovel Feeding Operation, No Exhaust Emissions, Silent Loader.
Performance | Rated Load（t) | 0.5 | |
Bucket rated capacity（m)³ | 0.2 | ||
Dumping height（mm) | 1350 | ||
（at 45°） | |||
Lifting Height（mm) | 2100 | ||
Dumping Reach（mm) | 450 | ||
Max. Lifting weight（kg） | 400 | ||
Max. Excavation Force（kn) | 8 | ||
Max. Grade ability | 15 | ||
Max. Turning Angel | 28°±1 | ||
Swing degree of the rear axle | 3 | ||
Dimensions. &.Weight | Overall length（Bucket on Ground position）mm | 2900 | |
Bucket width（overall width） | 900 | ||
Overall Height(mm) | 2070 | ||
Wheel base(mm) | 1387 | ||
Min Ground Clearance(mm) | 300 | ||
Net Weight（kg) | 1000kg | ||
Battery | Battery Model No. | 6-EVF-100A | |
rated capacity（3hr) | 100Ah | ||
No.of battery groups | 5 | ||
Rated Voltage | 60V | ||
Working hours（h） | 4h | ||
Transmission System | Hydraulic System | Motor No. | HL-60 |
Voltage | 60V | ||
Power | 1200W | ||
Displacement（ml/r) | 14 | ||
Tyres | Type | 6.00-12 | |
working pressure（mpa) | 0.25 | ||
Qty | 4 | ||
Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
System Pressure（mpa) | 16 | ||
Type of Steering Pump | External Gear Pump | ||
Steering Cylinder Bore（mm) | 50 | ||
Qty（pc） | 1 | ||
Braking System | Service Brake | Drum Brake | |
Brake Drum（mm) | 200 | ||
Parking Brake | Drum Brake | ||
Distribution Valve | Model | DL10 | |
Type | Triple valve stem | ||
Dumping Cylinder-Bore | ø50 | ||
Lifting Cylinder-Bore | ø50 | ||
Oil Capacity | Hydraulic Oil Tank（L) | 11 | |
Brake Fluid（L) | 0.8 | ||

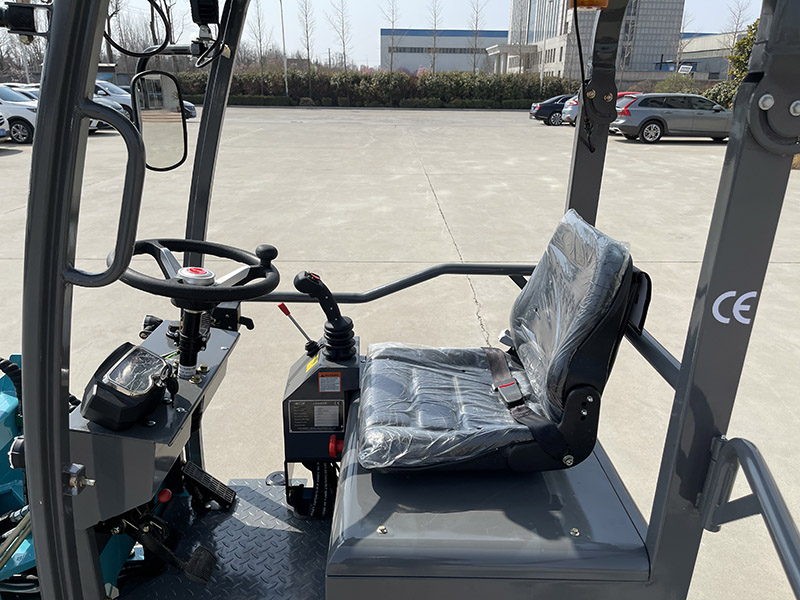

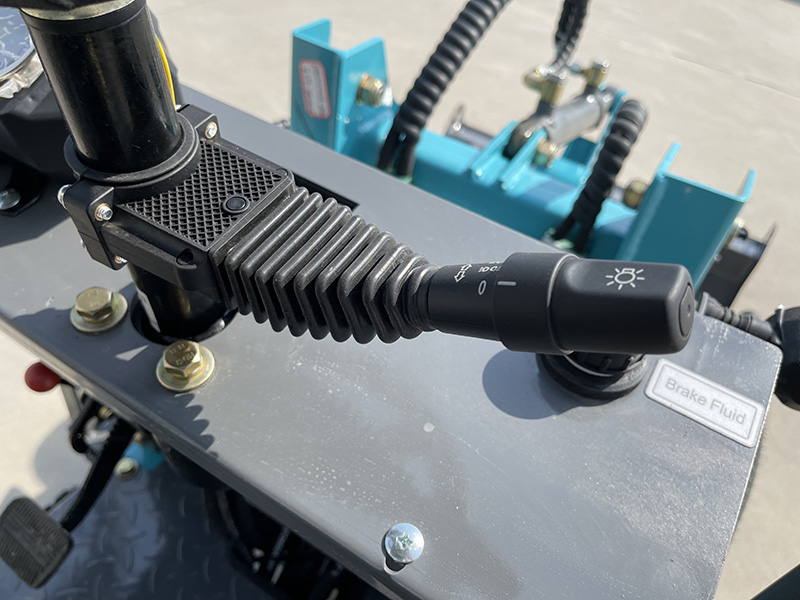

Details
Attachments For Mini Wheel Loader
