Forklift Boom Truck

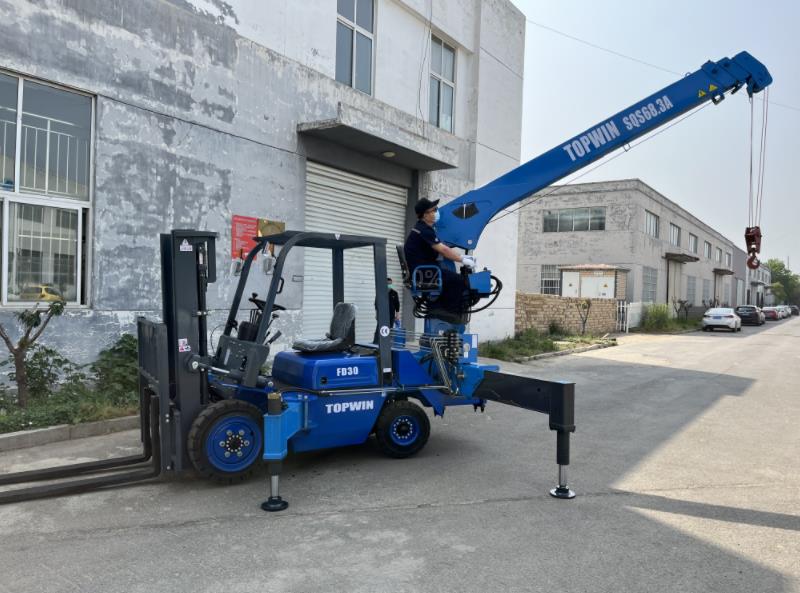

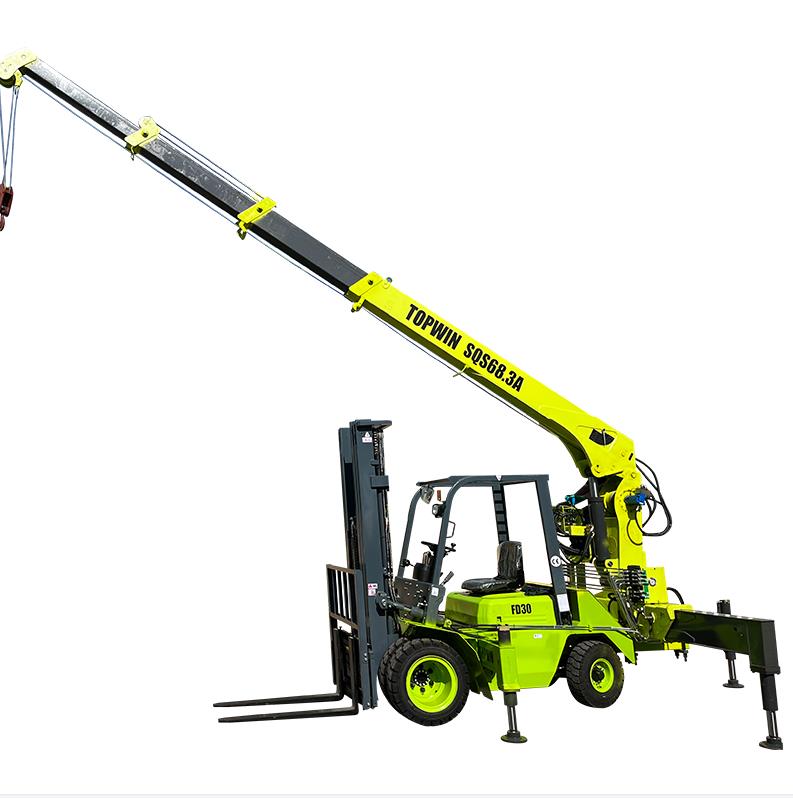

Forklift Crane
3000KG Diesel Forklift Truck
3 Stage Mast 6 m Lifting Height,
Double Front Tires,Pneumatic
Sideshifter
Hydraulic Transmission(Automatic),
1.22m Fork
China Chang chai/Xin Chai Engine
Forklift Crane Features:
1. The Outrigger Span Is Giant And The Operation Balance Is Good.
2. The Hexagonal Increase Can Make Bigger And Contract Greater Easily And Has Larger Strength.
3. Imported Multi-Stage Telescopic Oil Cylinders, Multi-Stage Booms Are Sequentially Telescopic.
4. Export-Grade Hydraulic Factors Make The Total Computer Greater Reliable.
5. Multi-Way Outrigger Manipulate Valve, Outrigger Cylinder Can Be Adjusted Separately, Which Is Handy And Quick.
6. The Floor Of The Structural Components Is Painted After Shot Blasting, And The Look Is Brilliant And Beautiful.
7. The Operation Velocity Is Quickly And The Fretting Is Good.
8. The Plate Is Reduce By Means Of a Laser Reducing Machine, And The Streamlined Look Is Pretty Aesthetic.
9. Using High-Strength Metal Plates, The Shape Is Extra Compact And The Set Up Area Of The Complete Computing Device Is
Optional Attachments
Side Shifter,Fork Positioner, Side Shift And Fork Positioner, Bale Clamps,
Paper Roll Clamps,Flat Bag Clamps, Carton Clamps,Block Clamps,Rotator,
Rotating Clamps,Hinged Fork,
Sanitation Fork,Bucket, Load Stabilizers,
Single Double Pallets Handlers, Log Holder,Tyre Clamps,
Push/Pull,Fertilizer Throw-Out,Drum Clamps,Carpet Boom,Cargo Boom.
Model | | FD30 |
Rated Lifting Load | kg | 3000 |
Load Center Distance | mm | 500 |
Free lifting Height | mm | 160 |
Overall Length,With Fork | mm | 3940 |
Width | mm | 1230 |
Overhead Guard Height | mm | 2110 |
Wheelbase | mm | 1700 |
Minimum Ground Clearance | mm | 135 |
Mast Tilt Angle(Front/Rear) | degree | 6/12 |
Tire No(Front ) | | 28X9-15 |
Tire No(Rear) | | 6.5-10 |
Minimum Turning Radius(Outside) | mm | 2600 |
Fork Size | mm | 1220X122X45 |
Max.Working Speed(Full-Load/No Load) | km/h | 18/20 |
Max. lifting Speed (Full-Load/No Load) | mm/s | 475/505 |
Total Weight | kg | 4290 |
Engine | | Xinchai |
Type Of Power Shift | | Hydraulic Transmission/Automatic |
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
