Crane And Forklift

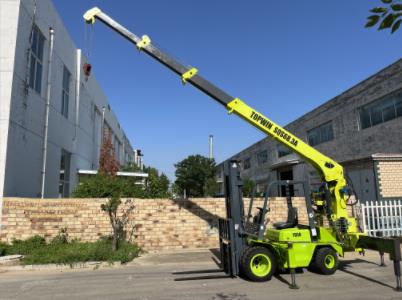

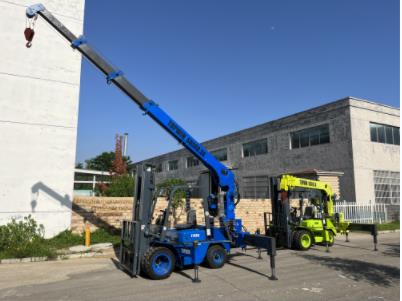

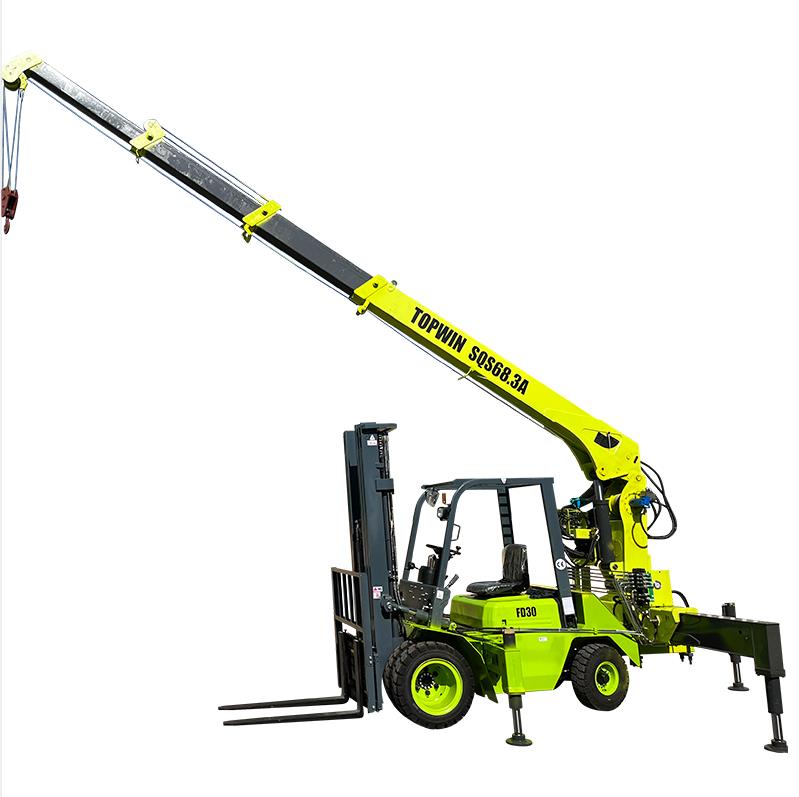

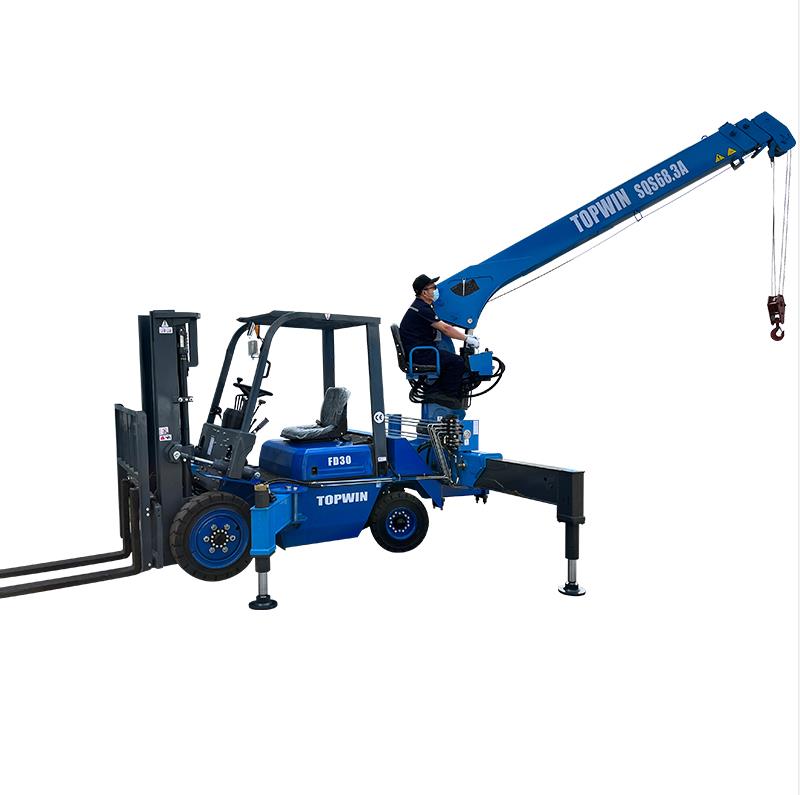

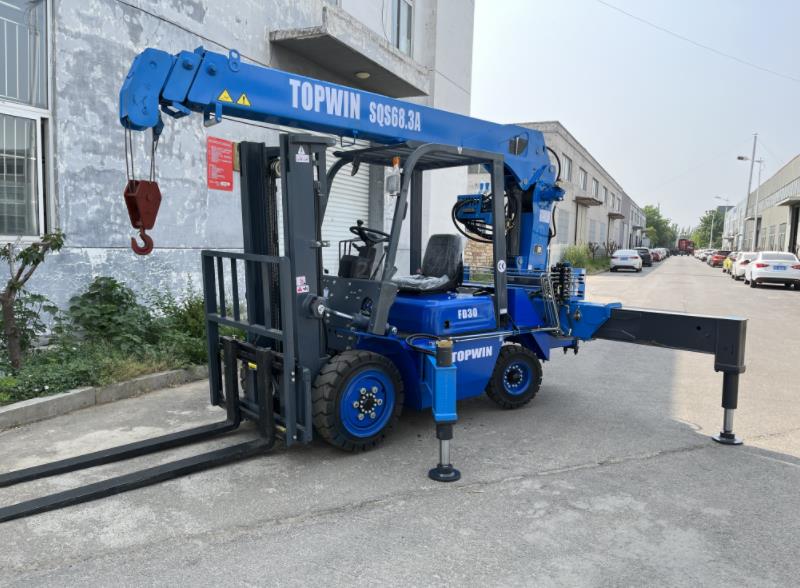

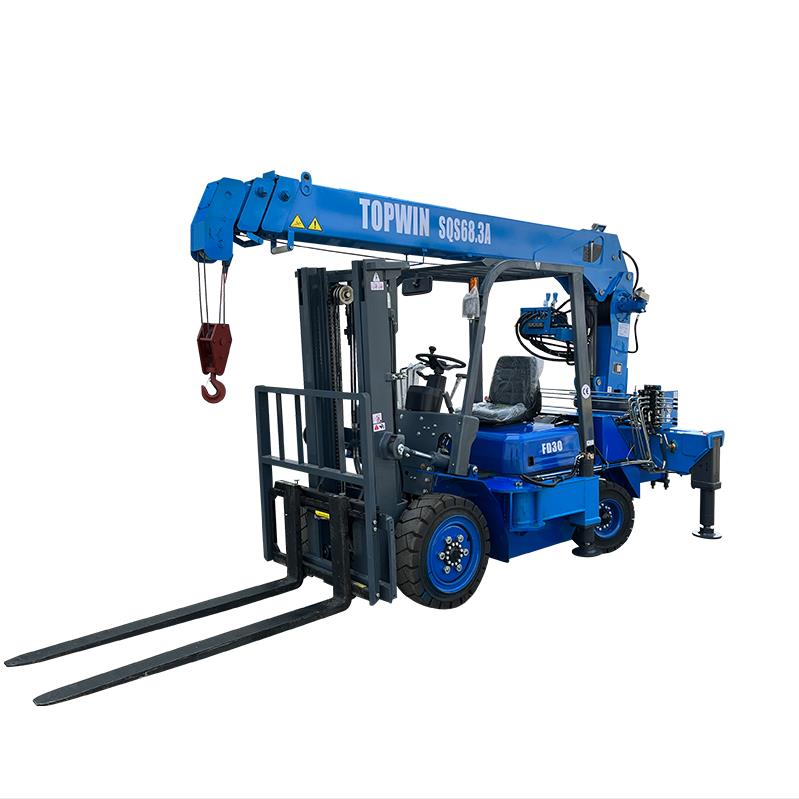

4T Boom Forklift Crane: Made By Topwin,
Patented By The Government, Weight: 3500kg.
Two Hydraulic Cylinder Telescopic Boom,
One Hand-Held Arm, Arm Length Of 6 Meters,
Lifting Height (According To Forklift Tonnage,
Gantry Lifting) The Maximum Lifting Forklift Option: 3.5 Tons - 7 Tons
Using Three Dimensional Diagram And Evaluation Of Product Format Making Sure Protected Andreliable
2. Four Bar Linkage Mechanism Has Been Utilized In The Joint Partswhich Improves The Working Ability At The Most Elevating Angle
3.Boom Head Is Made Of Whole-Arm Structuremoreintense.Split Head Format Reduces The Increase Head Bearing
4.Flange Plate Stability Valve And Compulsorsequence
Bob-Lift
Valve Make The Motion Greater Correct And Reliable.
5.Hexagon Increase Shape Strengthens The Loading Capacity
6.Float Kind Triple Bridge Desiqn Applies In The Crane Pedestal, Making The Pressure Association Of The Chassis Greater Scientific.
7.Hydraulic Winch In Hoisting Mechanism Depends On Disc Spring And Friction Brake,Stable Andreliablehigh Efficiencylow Noiseheatis Small: Descentrelies On Hydraulic Balanceweightsgreatlyincreasing Product Reliability.
8.Boom The Use Of The Massive Slide Designreduce Crane
Boom's Stress Ratio Whilst Lowering The Lifting Arm Wear.
Optional Attachments
Side Shifter,Fork Positioner, Side Shift And Fork Positioner, Bale Clamps,
Paper Roll Clamps,Flat Bag Clamps, Carton Clamps,Block Clamps,Rotator,
Rotating Clamps,Hinged Fork,
Sanitation Fork,Bucket, Load Stabilizers,
Single Double Pallets Handlers, Log Holder,Tyre Clamps,
Push/Pull,Fertilizer Throw-Out,Drum Clamps,Carpet Boom,Cargo Boom.
Model | | FD30 |
Rated Lifting Load | kg | 3000 |
Load Center Distance | mm | 500 |
Free lifting Height | mm | 160 |
Overall Length,With Fork | mm | 3940 |
Width | mm | 1230 |
Overhead Guard Height | mm | 2110 |
Wheelbase | mm | 1700 |
Minimum Ground Clearance | mm | 135 |
Mast Tilt Angle(Front/Rear) | degree | 6/12 |
Tire No(Front ) | | 28X9-15 |
Tire No(Rear) | | 6.5-10 |
Minimum Turning Radius(Outside) | mm | 2600 |
Fork Size | mm | 1220X122X45 |
Max.Working Speed(Full-Load/No Load) | km/h | 18/20 |
Max. lifting Speed (Full-Load/No Load) | mm/s | 475/505 |
Total Weight | kg | 4290 |
Engine | | Xinchai |
Type Of Power Shift | | Hydraulic Transmission/Automatic |
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
