Forklift Lifting Jib
3.5 Ton Diesel Forklift Truck
3 Stage Mast 6 m Lifting Height,
Double Front Tires,Pneumatic
Sideshifter
Hydraulic Transmission(Automatic),
1.22m Fork
China Chang chai Engine

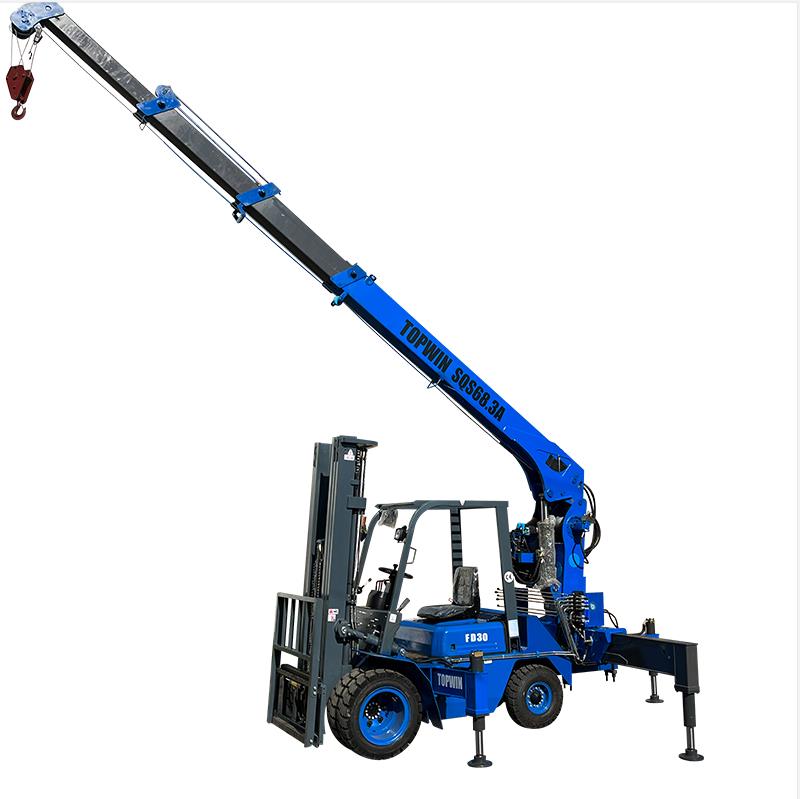

3 Ton Flying Increase Crane: Sqs68.3A Hydraulic Two Telescopic Oil Cylinders, One Hand Pull, Arm Size Of 4.5 Meters,
Lifting Peak (According To Forklift Tonnage, Portal Frame) For Example: Hang Fork Two-Stage Gantry Lifting 3.5 Meters,
Lifting Top Eight Meters. Weight Of Flying Growth Crane: 460 Kg. The Most Lifting Potential Is 2000kg,
And The Most Lifting Capability Of 4.5m Is 450kg.
Selection Of Forklift: 3-5 Lots Of Forklift Is Typically Chosen.
Optional Attachments
Side Shifter,Fork Positioner, Side Shift And Fork Positioner, Bale Clamps,
Paper Roll Clamps,Flat Bag Clamps, Carton Clamps,Block Clamps,Rotator,
Rotating Clamps,Hinged Fork,
Sanitation Fork,Bucket, Load Stabilizers,
Single Double Pallets Handlers, Log Holder,Tyre Clamps,
Push/Pull,Fertilizer Throw-Out,Drum Clamps,Carpet Boom,Cargo Boom.
Model | | FD30 |
Rated Lifting Load | kg | 3000 |
Load Center Distance | mm | 500 |
Free lifting Height | mm | 160 |
Overall Length,With Fork | mm | 3940 |
Width | mm | 1230 |
Overhead Guard Height | mm | 2110 |
Wheelbase | mm | 1700 |
Minimum Ground Clearance | mm | 135 |
Mast Tilt Angle(Front/Rear) | degree | 6/12 |
Tire No(Front ) | | 28X9-15 |
Tire No(Rear) | | 6.5-10 |
Minimum Turning Radius(Outside) | mm | 2600 |
Fork Size | mm | 1220X122X45 |
Max.Working Speed(Full-Load/No Load) | km/h | 18/20 |
Max. lifting Speed (Full-Load/No Load) | mm/s | 475/505 |
Total Weight | kg | 4290 |
Engine | | Xinchai |
Type Of Power Shift | | Hydraulic Transmission/Automatic |
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
