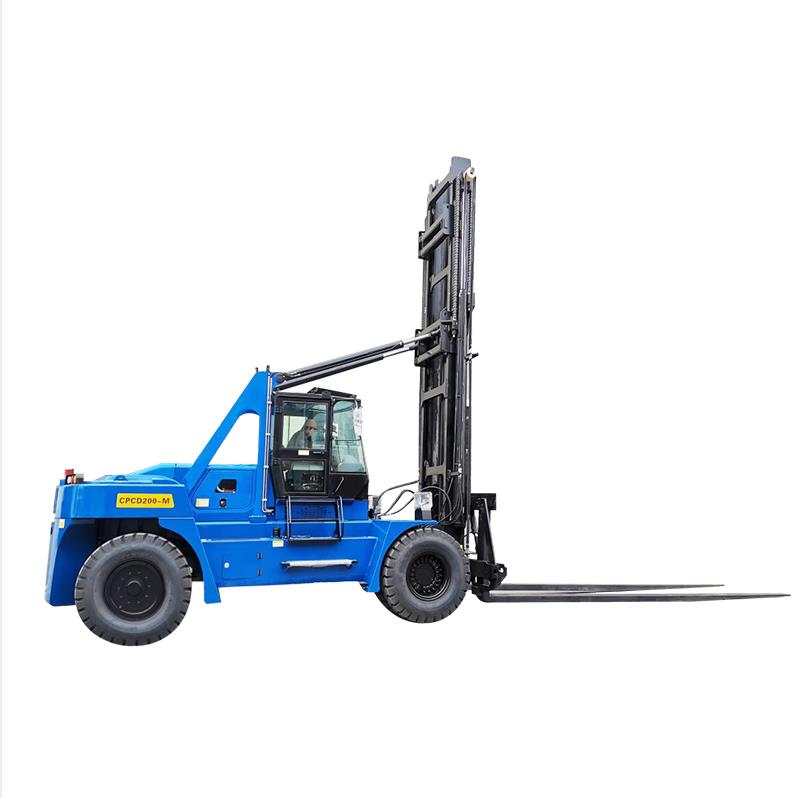

Heavy Duty Forklift Truck
Engine: Cummins QSB6.7-C240
Rated power: 179kw
Certificate: ISO
Product Details
Full Glass Cabin
High-Mounted Exhaust System
Customerized Color
Rear Working Light
Solid Tyre
Suspension Seat
Extinguisher
Counter Weight Net
High And Low Overhead Guard
Wide View Full Free 2-Stage Mast
Wide View Full Free3-Stage Mast
Wider Fork Carriage
Special Fork
Led Rearlights
| Item | Unit | FM200(W200-10-4) | FM250(W250-12-4) | FM250(W250-15-6) | |
| Features | Rated Load/loader center/lifting height | kg/mm/m | 7600/4100/<=6m | 8700/4300/<=6m | 8700/4300/<=6m |
| Wheelbase | y(mm) | 4000 | 4400 | 4400 | |
| Weight | Weight | kg | 41000 | 43000 | 47000 |
| Chassis | Tyre Specs.:Front | / | 14.00-24-28PR | 14.00-24-32PR | 14.00-24-32PR |
| Tyre Specs.:Rear | / | 14.00-24-28PR | 14.00-24-32PR | 14.00-24-32PR | |
| Tyres Qty,front/rear(X-drive wheels) | / | 4\2 | 4\2 | 4\2 | |
| Wheel tread:Front | b10(mm) | 2200 | 2200 | 2200 | |
| Wheel tread:Rear | b11(mm) | 2390 | 2390 | 2390 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree(°) | 3\6 | 3\6 | 3\6 |
| Mast height(fork lowering) | h1(mm) | 8400 | 9000 | 12000 | |
| Max. lifting height | h3(mm) | 10000 | 12000 | 15000 | |
| Max. Negative Lifting Height | mm | 4000 | 4000 | 6000 | |
| Height to head guard(height to cab) | h6(mm) | 4400 | 4400 | 4400 | |
| Overall leight(with forks) | l1(mm) | 12800 | 13700 | 13700 | |
| Overall width | b1/b2(mm) | 3050 | 3050 | 3050 | |
| Fork size | s/e(mm) | 6500X200X250 | 7000X200X250 | 7000X200X250 | |
| Fork carriage width | b3(mm) | 3500 | 3500 | 3500 | |
| Mast min ground clearance(with load) | m1(mm) | 300 | 300 | 350 | |
| Wheelbase center min ground clearance(with load) | m2(mm) | 400 | 400 | 400 | |
| Min.Turning radius | Wa(mm) | 6250 | 6250 | 6700 | |
| Travel speed(with load/without load) | km/h | 26/30 | 26/30 | 28/30 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 200/200 | 200/200 | 200/200 |
| Max.Lowering speed(with load/without load) | mm/s | 280/260 | 280/260 | 280/260 | |
| Traction | N | 16000 | 16000 | 17000 | |
| Gradeablity(with load/without load) | % | 20/21 | 20/21 | 20/21 | |
| Driving brake*standard | / | Hydraulic clamp disc brake | Hydraulic clamp disc brake | Hydraulic clamp disc brake | |
| Driving brake*optional | / | wet brake | wet brake | wet brake | |
| Engine | Brand | / | Cummins | Cummins | Cummins |
| Model | / | QSL9.3-C220 | QSL9.3-C220 | QSL9.3-C220 | |
| Rated load/speed | kW/rpm | 162/2200 | 162/2200 | 162/2200 | |
| Cylinder No. | / | 6 | 6 | 6 | |
| Others | Transmission gears(Front/rear)*standard | / | 2\1 | 2\1 | 2\1 |
| Transmission gears(Front/rear)*optional | / | 3\3 | 3\3 | 3\3 | |
| Attachments working pressure | bar | 160 | 160 | 160 | |
| Attachments using oil amount | l/min | 80 | 80 | 80 | |
| *The parameters are subject to change without prior notice. | |||||
| Items | Unit | FD200 | |
| Features | Rated Load | Q（t） | 20 |
| Load center | c（mm） | 1250 | |
| Wheelbase | y（mm） | 4000 | |
| Weight | kg | 32500 | |
| Chassis | Tyre Specs.:Front | 14.00-24-28PR | |
| Tyre Specs.:Rear | 14.00-24-28PR | ||
| Tyres Qty,front/rear(X-drive wheels) | 4\2 | ||
| Wheel tread:Front | b10（mm） | 2200 | |
| Wheel tread:Rear | b11（mm） | 2390 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree（°） | 6\12 |
| Mast height(fork lowered) | h1（mm） | 3860 | |
| Max.lifting height | h3（mm） | 10000 | |
| Mast height(fork raised) | h4（mm） | 5610 | |
| Height to head guard(height to cab) | h6（mm） | 3510 | |
| Overall length(with forks) | l1（mm） | 8340 | |
| Fork front vertical surface to the rear end of the vehicle | l2（mm） | 6345 | |
| Overall width | b1/b2（mm） | 3050 | |
| Fork dimension | s/e（mm） | 2000X260X100 | |
| Fork carriage width | b3（mm） | 3050 | |
| Mast min ground clearance(with load) | m1（mm） | 300 | |
| Wheelbase center min ground clearance(with load) | m2（mm） | 420 | |
| Min.Turning radius | Wa（mm） | 6250 | |
| Travel speed(with load/without load) | km/h | 26/30 | |
| Performance | Max.lifting speed(with load/without load) | mm/s | 260/270 |
| Max.Lowering speed(with load/without load) | mm/s | 310/260 | |
| Traction | kN | 170 | |
| Gradeablity(with load/without load) | ％ | 20/22 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine brand/model | Option one | Weichai engine | |
| Engine | WP10G220E343 9.726L 162KW 2000rpm | ||
| Option two | Guangxi Cummins | ||
| QSL9.3-C220 8.3L 160KW 2200rpm | |||
| Cylinder No. | 6 | ||
| Others | Transmission gears(Front/rear) | 2\1 | |
| Attachments working pressure | Mpa | 18 | |
| Attachments using oil amount | l/min | 80 | |
