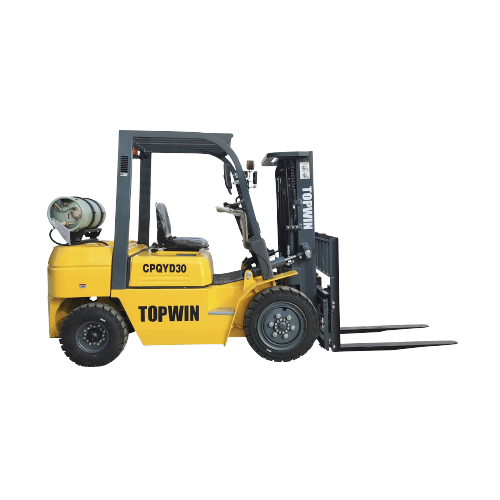

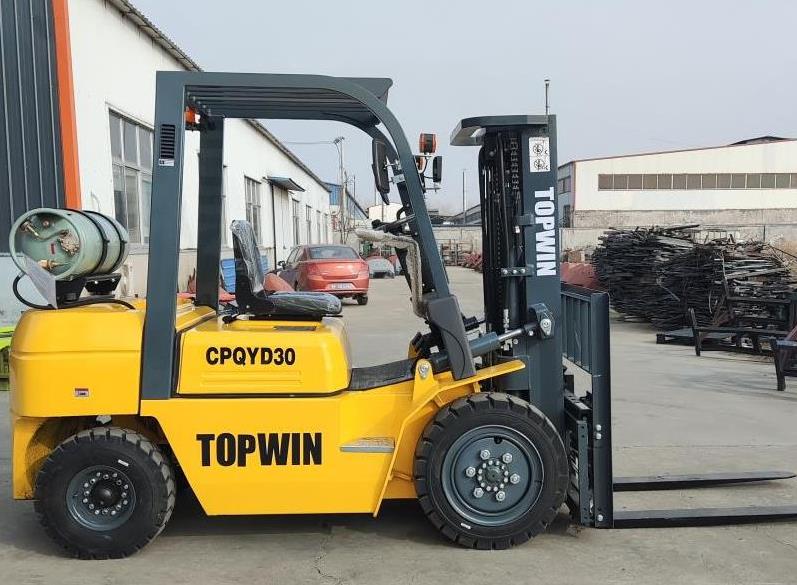

3Ton LPG Forklifts
Name: 2.0Ton-3.5Ton LPG Series Forklift Truck
Engine: Nissan K21/K25 Gasoline Engine, Chinese 490
Gasoline Engine
Transmission: Hydraulic Transmission, Manual Transmission
Mast: Duplex, Triplex, From 3.0m To 6.5m Lifting Height
Safe Driving With Rear View Camera
Lpg Specialized Instrument
High Capacity Lpg Air Tank With Long Endurance
Lpg Specialized Engine With The Ability Of Energy Saving, Low Emissions And Environmental Protection
Safe And Reliable Air Tank
Imported Reliable Switching Device
Model | CPQYD30 | CPQYD35 | |
Rated Lifting Load | kg | 3000 | 3500 |
Load Center Distance | mm | 500 | |
Free lifting Height | mm | 160 | |
Overall Length(With Fork/Without Fork) | mm | 3752/2682 | 3763/2693 |
Width | mm | 1225 | |
Overhead Guard Height | mm | 2090 | |
Wheelbase | mm | 1700 | |
Minimum Ground Clearance | mm | 135 | |
Mast Tilt Angle(Front/Rear) | % | 6/12 | |
Tire No(Front ) | 28X9-15-14PR | ||
Tire No(Rear) | 6.5-10-10PR | ||
Minimum Turning Radius(Outside) | mm | 2400 | 2420 |
Minimum Right Angle Aisle Width | mm | 4260 | |
Fork Size | mm | 1220X125X45 | |
Maxmum Working Speed(Full-Load/No Load) | km/h | 18/19 | 19/19 |
Maxmum Speed Speed(Full-Load/No Load) | mm/s | 440/480 | 330/370 |
Maximum Gradeability (Full-Load/No Load) | % | 15/20 | |
Total Weight | kg | 4250 | 4500 |
Engine | LPG | ||
Type Of Power Shift | Hydraulic Transmission/Automatic | ||
