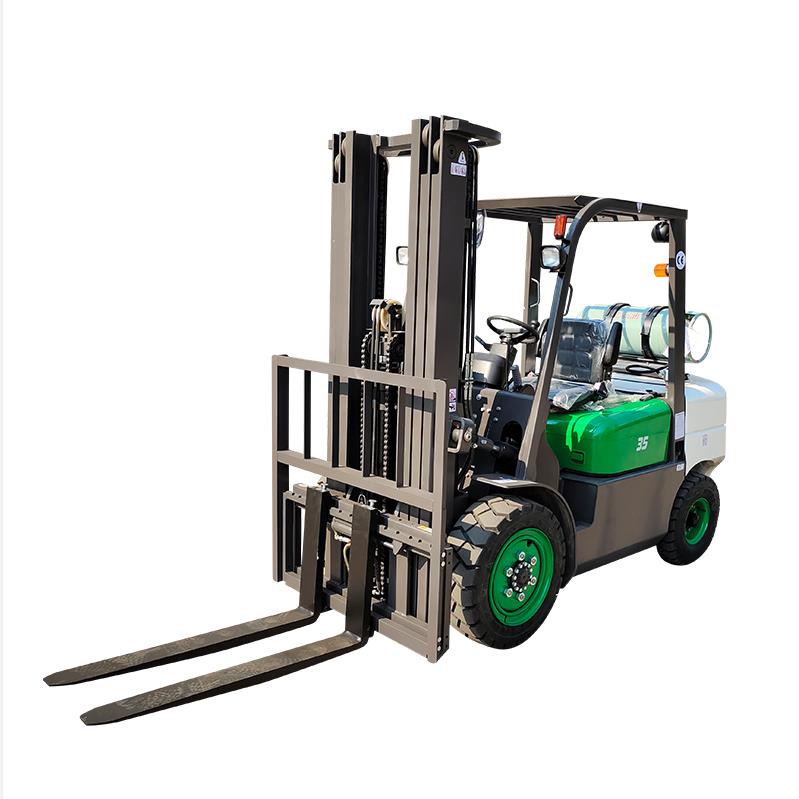

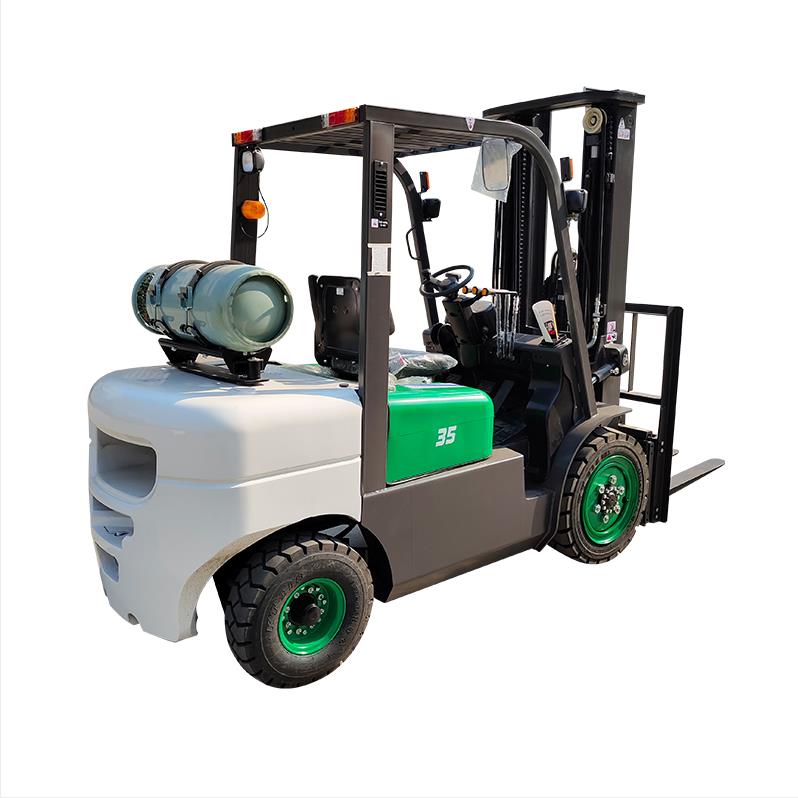

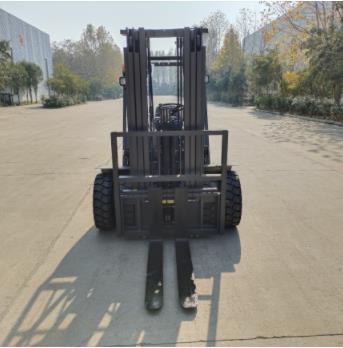

Propane Forklift
Forklifts Are All With Reliable Power Accessories,
Like Mitsubishi Engine. All Accessories Are Support By Domestic And World Famous Brand,
High Quality, Reliable After-Sales.We Follow The Strict Environmental Design,
All Engines Match The China Or Even Higher Emission Standards.
Advantage :
TOPWIN Lpg&Gasoline Forklift's Power Is Lpg Or Both,Can Be Dual Fuel Or Single Fuel .
Usually It Equip The Operator`s Legroom Is Twice To Other Series With Optimized Construction;
Conveniently Behavior With Electro-Hydraulic Direction Changing Lever And Automobile Type Double Joystick Combined Switch;
Small Diameter Steering Wheel Reduces Driver`s Left Shoulder`s Fatigue And Makes Driving Comfortable;
Suspension Seat With Handrail And Seat Belt Ensure The Operator`s Safety And Comfort;
The Dynamic Braking System Decreases The Braking Force Sharply.
. Lpg & Gasoline Combustion Fully, Improve The Life Of Engine Three Times.
It`s More Clean Than Diesel Forklift,And Can Work Longer Than Electric Forklift.
Model | FL30 | FL35 | |
Rated Lifting Load | kg | 3000 | 3500 |
Load Center Distance | mm | 500 | |
Free lifting Height | mm | 160 | |
Overall Length(With Fork/Without Fork) | mm | 3752/2682 | 3763/2693 |
Width | mm | 1225 | |
Overhead Guard Height | mm | 2090 | |
Wheelbase | mm | 1700 | |
Minimum Ground Clearance | mm | 135 | |
Mast Tilt Angle(Front/Rear) | % | 6/12 | |
Tire No(Front ) | 28X9-15-14PR | ||
Tire No(Rear) | 6.5-10-10PR | ||
Minimum Turning Radius(Outside) | mm | 2400 | 2420 |
Minimum Right Angle Aisle Width | mm | 4260 | |
Fork Size | mm | 1220X125X45 | |
Maxmum Working Speed(Full-Load/No Load) | km/h | 18/19 | 19/19 |
Maxmum Speed Speed(Full-Load/No Load) | mm/s | 440/480 | 330/370 |
Maximum Gradeability (Full-Load/No Load) | % | 15/20 | |
Total Weight | kg | 4250 | 4500 |
Engine | LPG | ||
Type Of Power Shift | Hydraulic Transmission/Automatic | ||
