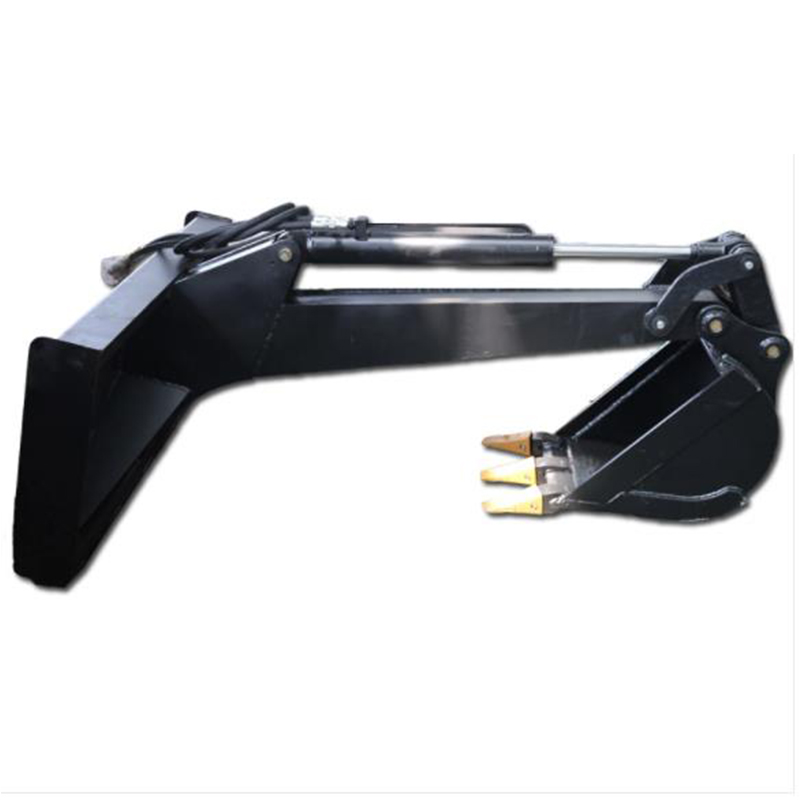

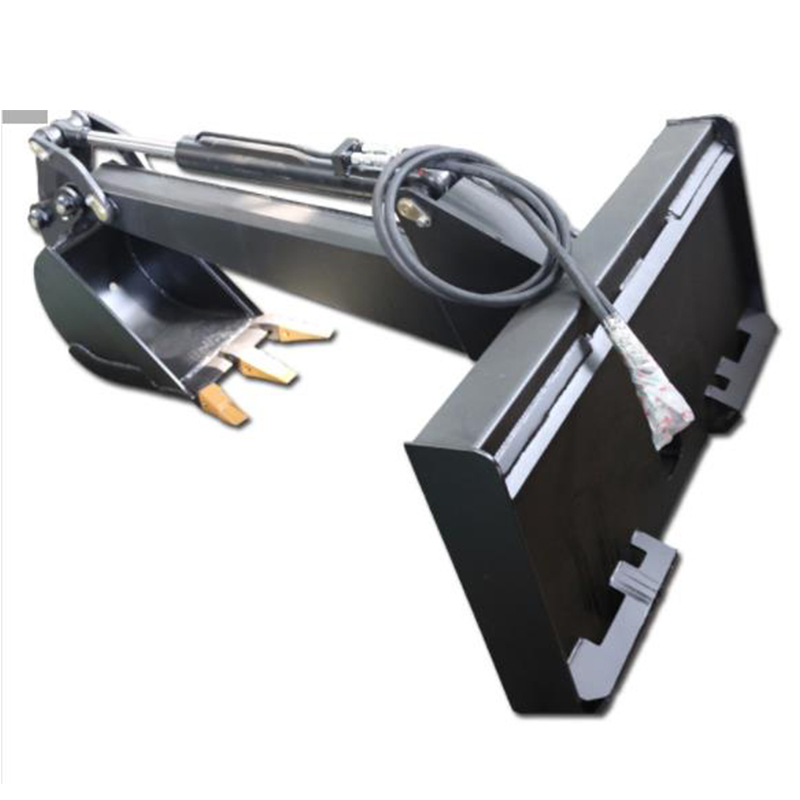

Backhoe Arm
1.Topwin Backhoe Attachments Can Be Installed Skid Steer Loaders
And Other Host Machines.
2.Topwin Attachments Use Well-Known Brands
Of Hydraulic Components, The Loading And Unloading Unit
Is Free To Change.
Specification Parameters
The Skid Steer Backhoe Attachment Has a Lot Practicable And Can Go On For Hours
Barring Obstructing Your Work. It Comes With Amazing Elements And Can
Do The Digging And Trenching Duties With Perfection.
The Backhoe Attachment Can Be An Asset On The Worksite And Can Operate a Broad Vary Of Tasks.
It Is One Of The Satisfactory Equipment That Can Be Connected To Your Skid Steer.
Many Gurus Use This Attachment To Entire Their Duties On The Building And Work Sites.
Suit for Machines:
1. Skid steer loaders with Universal Mounting Quick Attach (Most manufacturers of skid steers' qucik connect are Universal).
2. Small excavators with Auxiliary hydraulics
3. Backhoe Loaders with Auxiliary hydraulics
4. Tractor with Auxiliary Hydraulics
5. Telehandlers with Auxiliary Hydraulics
6. Small Wheel Loaders with Auxiliary Hydraulics
| Model | TW-8 |
| Matching skid steer loader | 60~80hp |
| Outline dimensions(l ×w × h) ( mm) | 2601×2000×2460 |
| Rated bucket capacity ( m3) | 0.06 |
| Max. digging depth(mm) | 2500 |
| Max. platform digging depth (mm) | 2200 |
| Max. digging height( mm) | 3400 |
| Max. dump Height(mm) | 2500 |
| Pin of the digging arm distance (mm) | 450 |
| Dump angle(°) | 42° |
| Hydraulic system pressure | 16MPa |
| Bucket rotating angle(°) | 160° |
| Digging arm rotating angle(°) | 147° |
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
