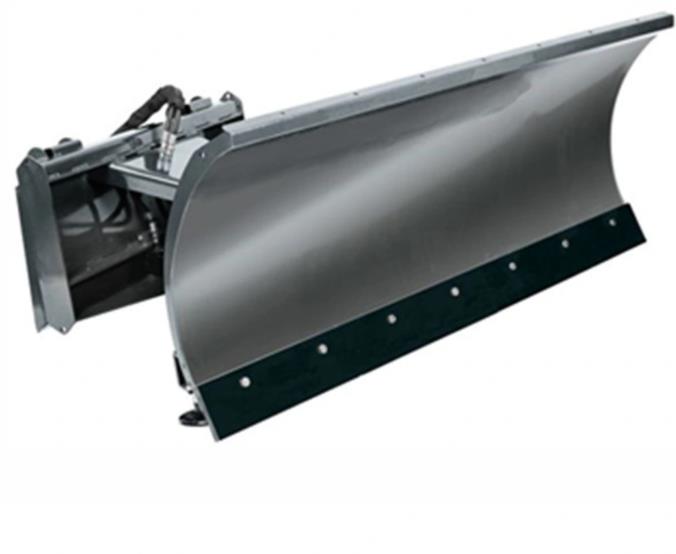

Skid Steer Snow Blade
Features:

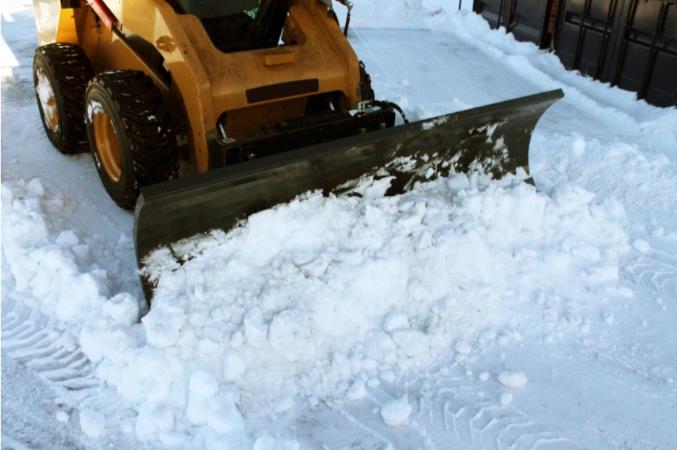

Ideal For Residential Or Commercial Snow Removal.
Use On Driveways, Parking Lots, Or Other Large Areas.
Quick Hook Up On Skid Steers Or Front Loaders Equipped With "Universal" Mounting Plate.
Blade Angles Right Or Left 30°.
Description:
The Heavy-Duty (Hd) Straight Blade Snow Plow Provides True Commercial Contractor Performance For Any Skid-Steer Under The Most Punishing Winter Conditions. Available In Different Blade Widths, The Hd Straight Blade Plow Is Built With a Formed Base Channel For Extra Durability And a Combination Of Vertical Ribs, Two Angled Power Ribs And a Massive Quad Design For Maximum Strength. Its Heavy-Duty Construction Combined With The Hydraulics And Maneuverability Of a Skid-Steer Stand Up To The Challenge.
Specification parameters:
| Model | 1 60 | 1 72 | 1 84 |
| Overall length B(mm) | 1200 | 1200 | 1200 |
| Overall width A(mm) | 1500 | 1800 | 2100 |
| Overall height C(mm) | 750 | 750 | 750 |
| Overall weight(Kg) | 330 | 350 | 370 |
| Working width(mm) | 1500 | 1800 | 2100 |
| Working width at Max.turning angle 30°(mm) | 1300 | 1560 | 1820 |
| Max.turning angle(°) | 30 | 30 | 30 |
| obstacle avoidance height (mm) | 110 | 110 | 110 |
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
