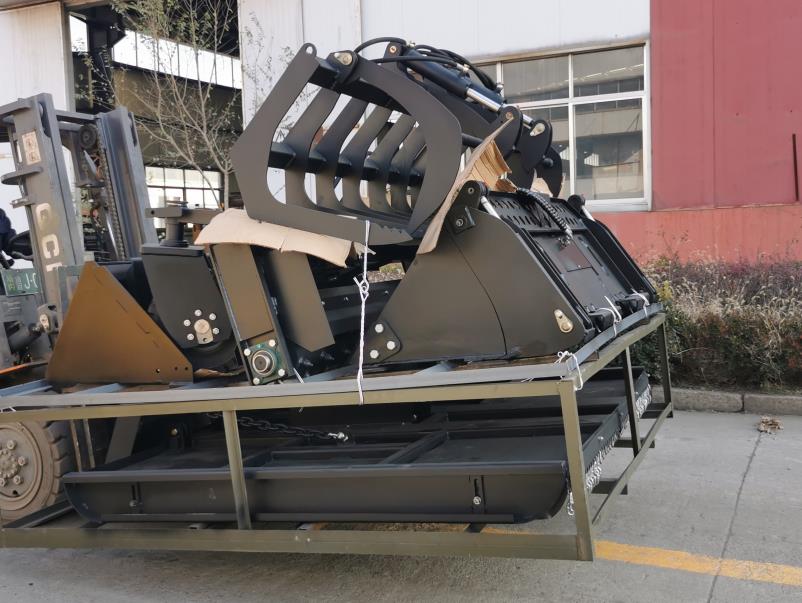

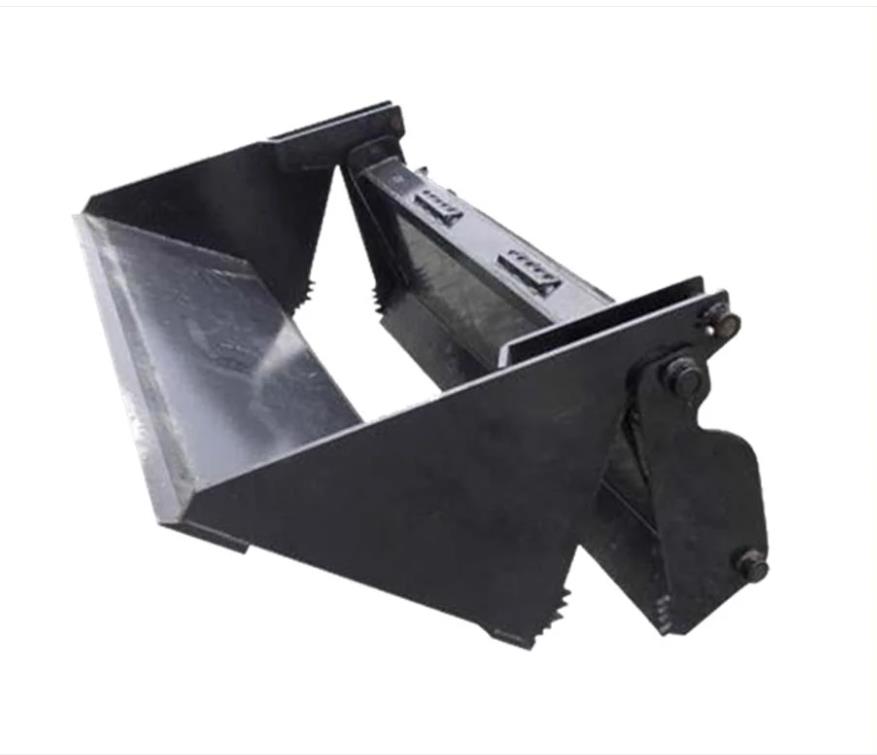

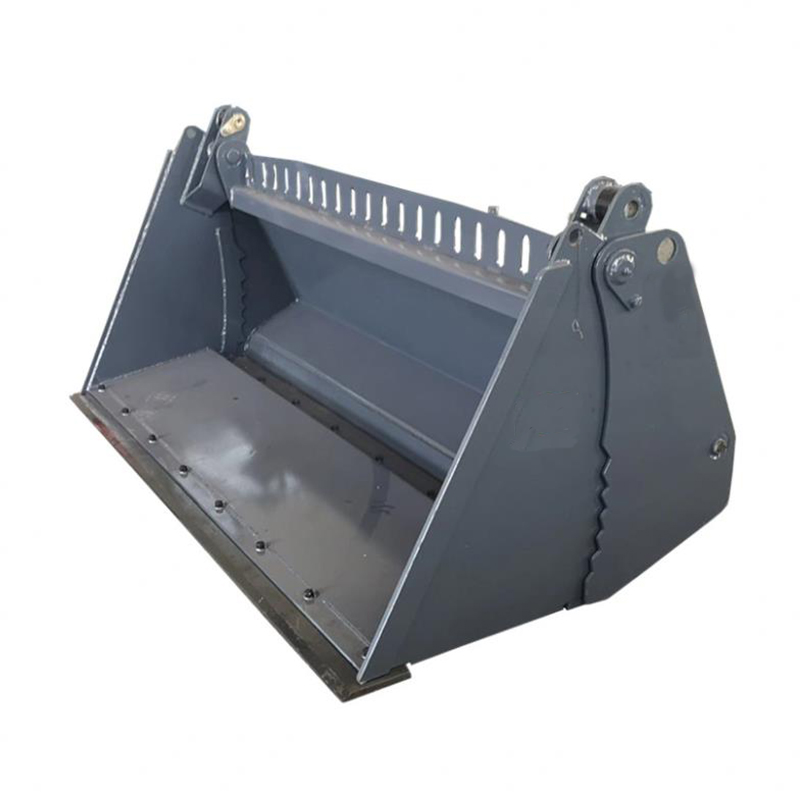

Skid Steer 4 In 1 Bucket For Sale
Standard Heavy Duty 20mm Floors
•12mm And 16mm Flooring Handy On Request
•Side Curved Sections For Larger Bucket Opening Width
Specification Parameters
4 IN 1 BUCKET FEATURES
Flat Flooring Design
Greasable Pivot Points
Built-In Spill Guard
Gussets From Base To Sides
Grab Enamel On Overlap For Higher Grip
Clear Imaginative And Prescient Of Each The Front And Returned Bucket Edge
Universal Skid Steer Mount As Standard
Features
Standard Heavy Duty 20mm Floors
12mm And 16mm Flooring Handy On Request
Side Curved Sections For Larger Bucket Opening Width
1 Piece Heavy Responsibility Absolutely Welded 6mm Grill/Hungry Board
Full Vary On Hand From 880mm To High Quantity 2130mm
High Visibility Design: Clear Imaginative And Prescient Of Bucket Edges
Optional Reversible Bolt-On Slicing Edges
Optional Chisel Or Tiger Tooth With Pin On Design
Grabbing Enamel Profiled On Each Front/Rear Overlap For Higher Grip Of Logs Or Different Debris
Durable Building Meets Versatile Performance
Use As a Popular Bucket: Dig And Pass Earth
Use As a Field Blade: Back Drag With The Bucket Open
Use As a Grapple: Move Logs And Debris
Use As a Dozer: Push Grime With The Blade
Two Effective And Dependable Cylinders
Durable Pins And Bushings With Grease Fittings
Suitability
Skid Steer, Compact Track Loaders
Model | 60 | 66 | 72 |
Width (mm) | 1584 | 1736 | 1889 |
Height (mm) | 768 | 768 | 768 |
Length (mm) | 879 | 879 | 879 |
Open distance (mm) | 718 | 718 | 718 |
Pressure (Mpa) | 20 | 20 | 20 |
Clamping force (N) | 8230 | 8230 | 8230 |
Weight Kg | 385 | 420 | 460 |
Capacity (m3) | 0.4 | 0.44 | 0.48 |
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
