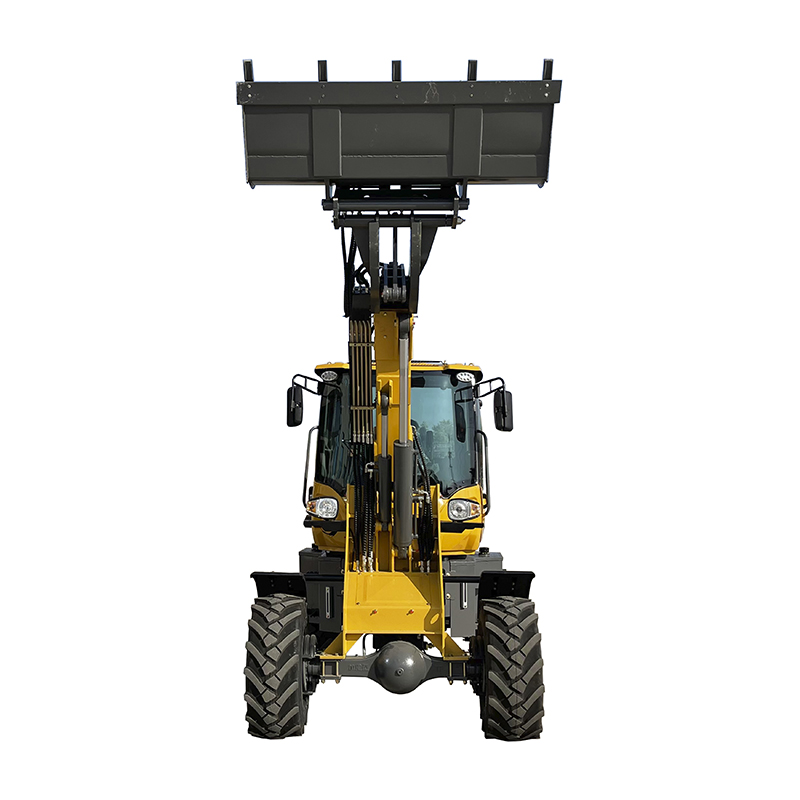

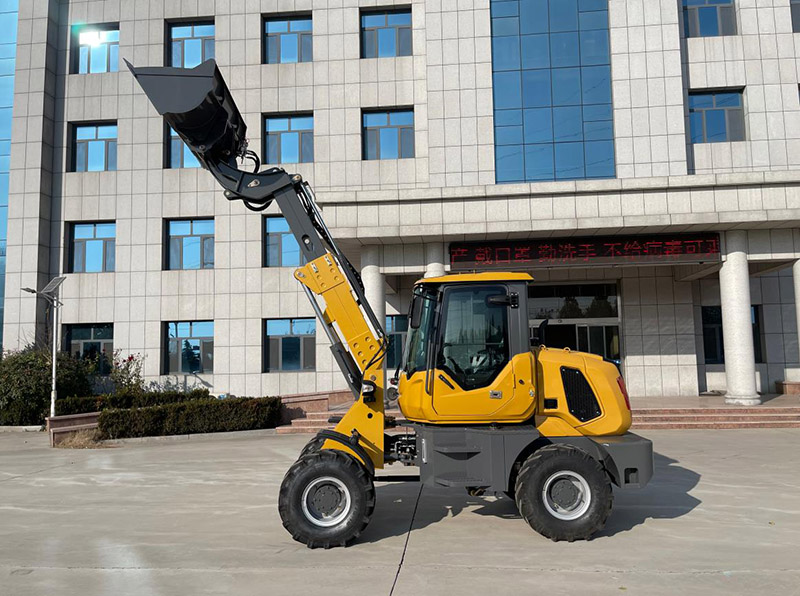

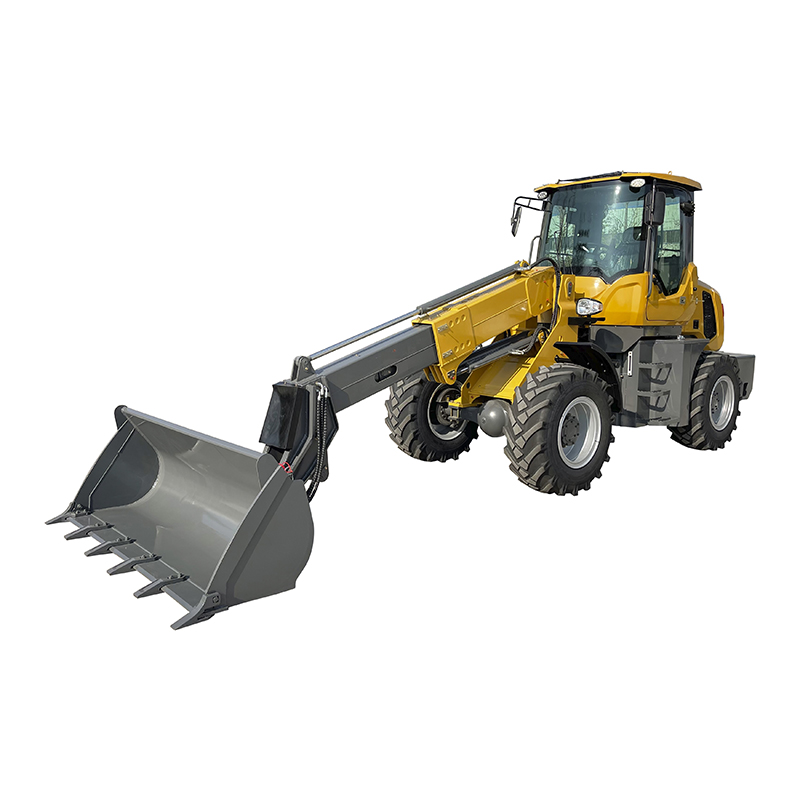

Telescopic Wheel Loader
Feature of LT16
Work In Both Agricultural Environment And Construction Environment
Special Heavy Duty Design
Beautiful Color And Design
Comfortable, Safe And Powerful
LT16 can working in both agricultural environment and construction environment depending to its special heavy duty design especially the articulation.
The main market are European, Australia and north America. Beautiful color and design making it conform to people's aesthetic taste.
Comfortable, safe and powerful are the features of LT16.
Performance | rated loading (kg) | 1500 |
overall weight (kg) | 3700 | |
rated bucket capacity (CBM) | 0.6 | |
maximum tractive force (kN） | 33 | |
maximum breakout force (kN） | 28 | |
maximum grade ability（°） | 25 | |
maximum dump height（mm） | 2415 | |
maximum dump height（mm） | 3155 | |
maximum dump reach（mm） | 1031 | |
maximum dump reach（mm） | 1499 | |
overall dimension (L×W×H) （mm） | 5072*1860*2600 | |
minimum turning radius（outside of wheels）（mm） | 5450 | |
maximum steering angle | 31° | |
Oscillation angle | 12° | |
Engine | model | YN27 |
type | lnline water cooled, four stroke | |
No. of cylinder-bore/stroke （mm） | 4-90×105 | |
displacement （L） | 2.7 | |
rated power（kW） | 42 | |
idel speed (r/min) | 800-850 | |
rated speed (r/min) | 2400 | |
maximum torque N.m @speed r/min | 160-170 @ 1500-1800 | |
min fuel-consume ratio | ≤238g/kw.h | |
Transmission system | torque converter | 265 |
gearbox mode | Power shift normally engaged straight gear | |
gear shift | Mechanical， 2forward shift 2 reverse shift | |
maximum speed | 22km/h | |
Drive axles | main reducing mode | Bevel gear grade l reduction |
wheel base (mm) | 2138 | |
wheel tread(mm) | 1530 | |
ground clearance(mm) | 275 | |
Hydraulic system | system working pressure (Mpa) | 16 |
boom lifting time (s) | 7.2 | |
total time (s) | 12.9 | |
fuel tank capacity (L) | 70 | |
Brake system | service brake | Air-assist hydraulic brake, disc brake |
parking brake | Manual disc brake | |
Tyre | type specification | 23.5/70-16 |
front tyre pressure （kPa） | 350 | |
rear tyre pressure （kPa） | 350 |
