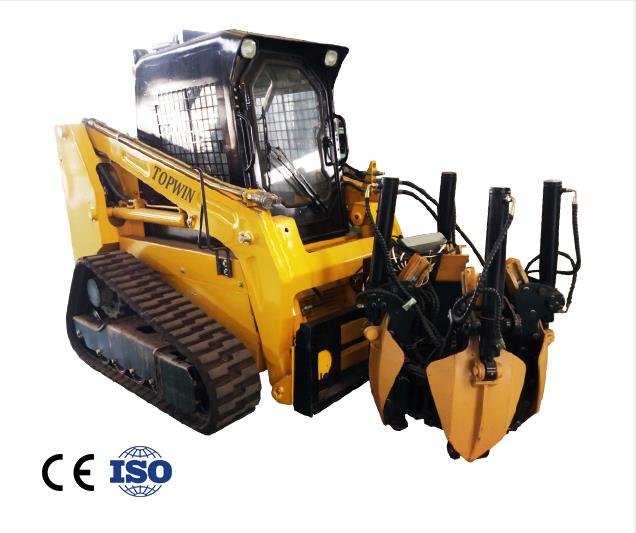

Mini Tree Spade For Sale

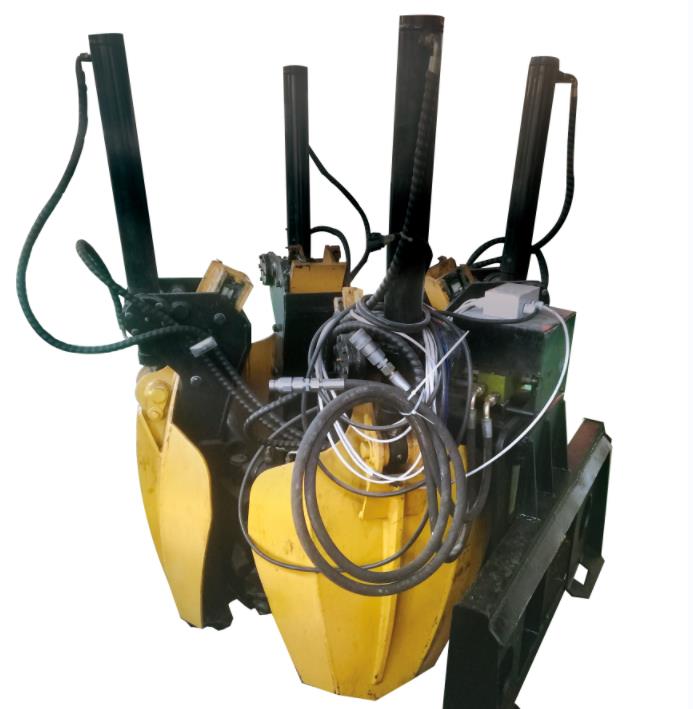

Compact Structure: The Tree Excavator Adopts a Portal Body Structure, Which Has Two Structures: An Internal Body And An Outer Frame. The Knife And Shovel Adopts The Arc Shape Of Up And Down, Left And Right, From Components To Components, The Matching Accuracy Is In The Vary Of 0.01-0.5mm.

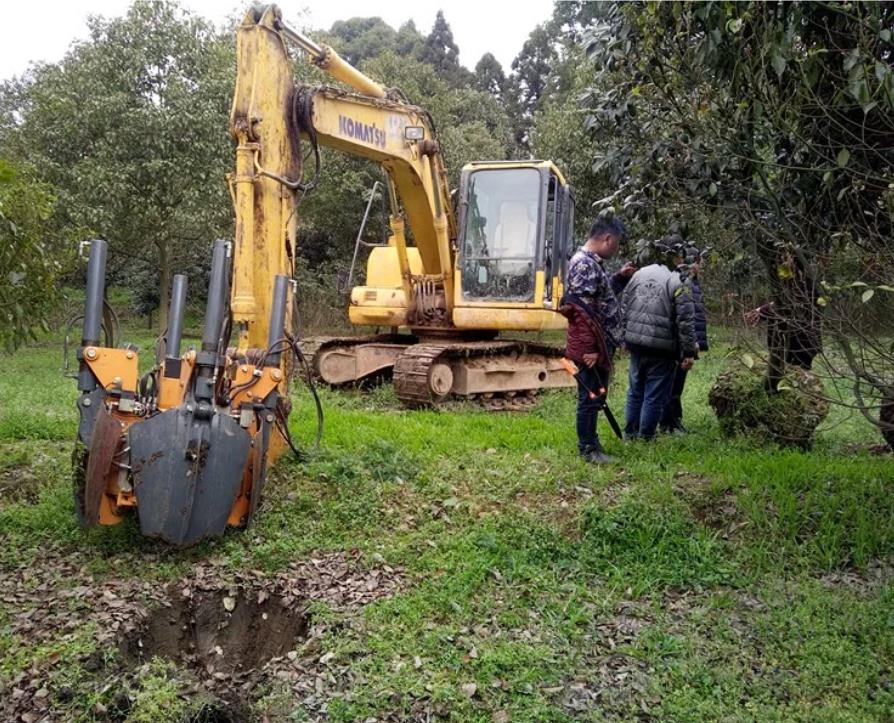

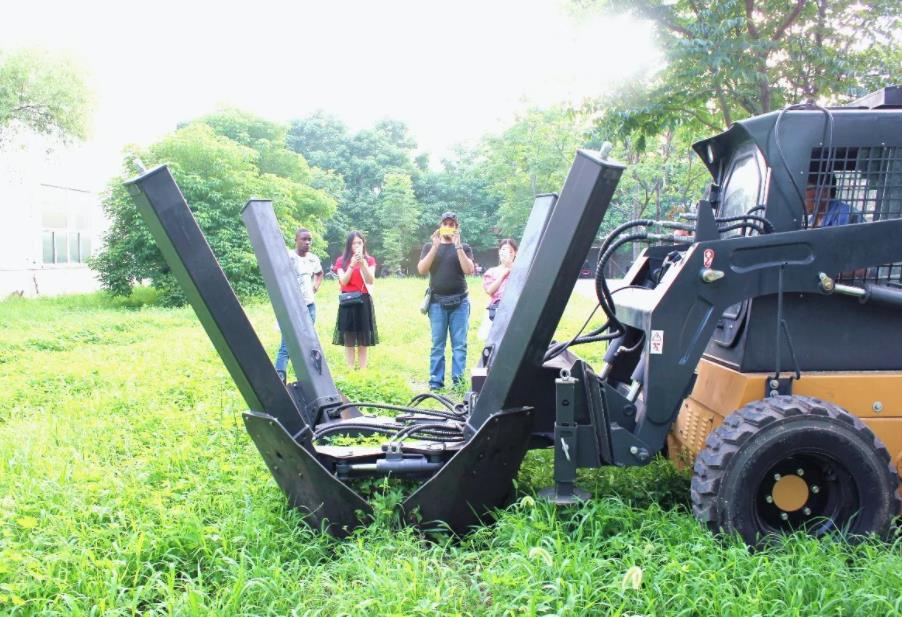

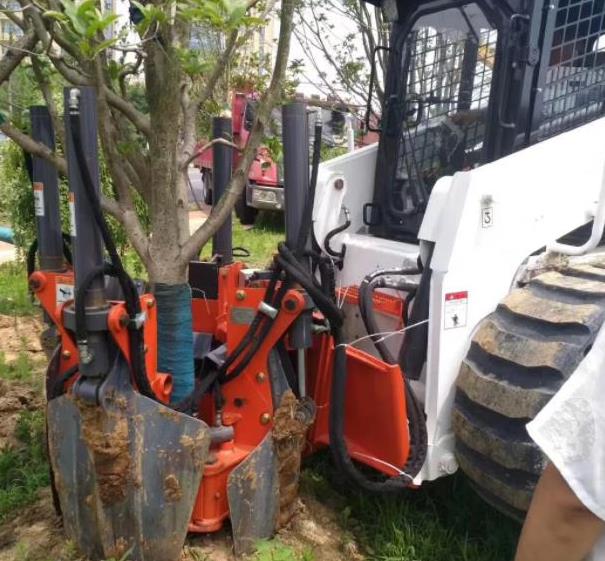

The Work Technique Of The Tree Digger:
1. Open The Shovel Blade And Stumble On The Middle Point.
2. The Blade Of The Shovel Is Closed.
3. Openthe Rear Help Machine Starts Offevolved To Dig Down.
4.The Shovel Digs Down To The Bottom.
5. Lift The Excavated Tree Ball To Above The Tree Pit And Wait.
6. Place a Wire Gentle Cage In The Tree Pit, And Then Put a Sack On It.
7. Put The Tree Ball Lower Back Into The Tree Pit.
8. Use One-Of-a-Kind Hook And Rope Equipment To Bind Tree Balls.
9. Use Ball Stem Slings And Hoist Timber With Tree Diggers.
| Model | S404 80 |
| rootball diameter (mm) | Φ700-850 |
| digging depth (mm) | 600 |
| working height (mm) | 1400 |
| woking width,gate closed (mm) | 1000 |
| woking width,gate open (mm) | 1400 |
| clearance between open gate (mm) | 600 |
| volume of rootball(m3) | 0.2 |
| weigh (kg) | 900 |
| number of bades | 4 |
Tree Spade Video
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
