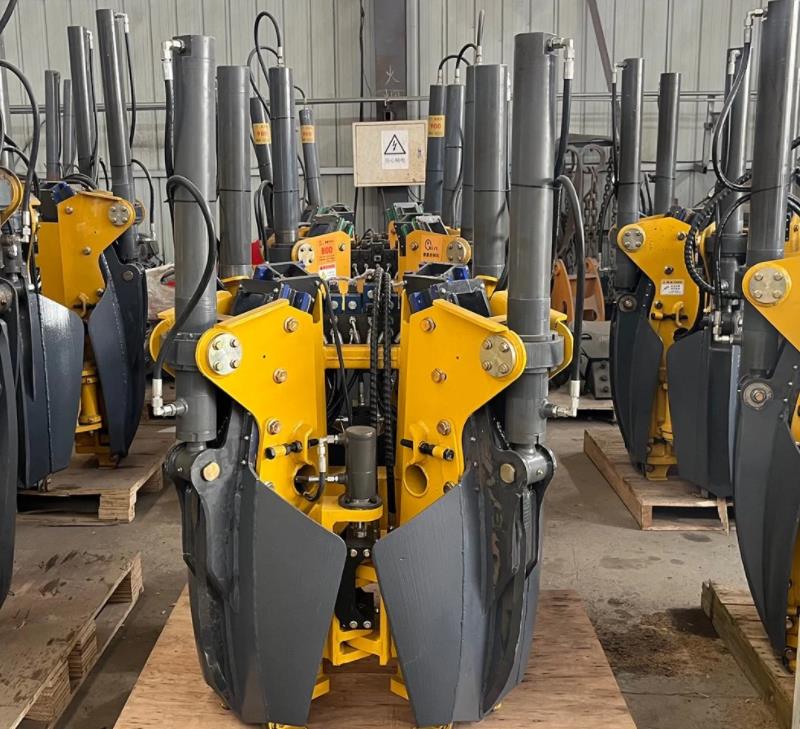

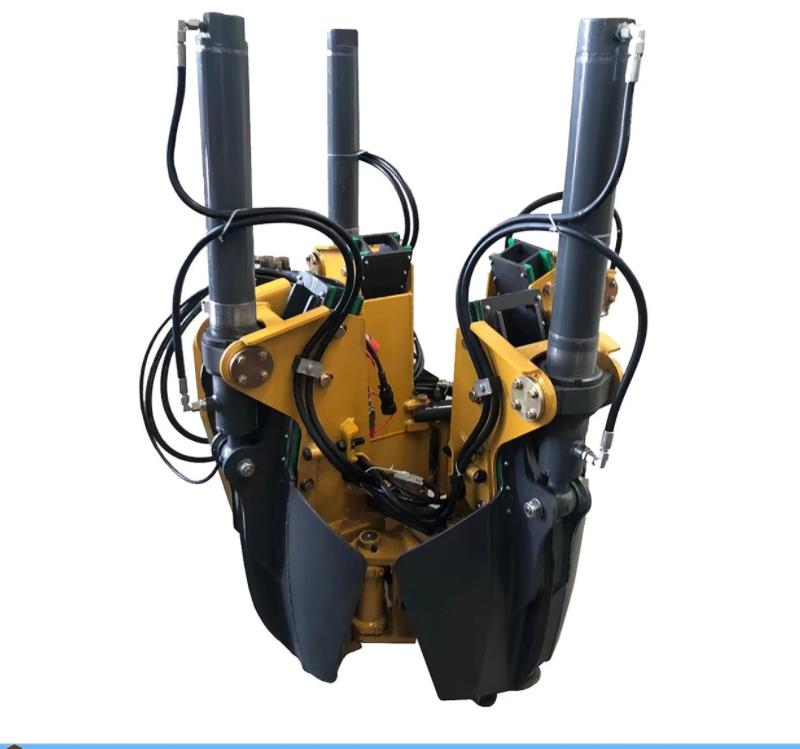

Tree Spade For Skid Steer
"Apple-shaped" soil ball: The excavated soil ball is like "apple-shaped", the soil ball is full, and more roots can be retained to a greater extent. Improve the survival rate of transplanted seedlings and Helps seedlings survive
A Tree Spade Transplanter Is a Specialised Machine That Mechanizes The Transplanting Of Massive Flora Whose Hand-Powered Transplanting (Using Usual Spades, Wagons, And Different Equipment) Would Be Prohibitively Laborious. These Encompass Massive Timber And Small Or Medium Trees. By Bringing Mechanized Energy To What Used To Be Previously Solely a Guide Process, Tree Spades Do For Transplanting What Tractors And Mix Harvesters Do For Agriculture, And What Excavators And Different Heavy Gear Do For Construction. Today, Tree Spades Are Broadly Used In The Tree Nursery Enterprise To Enlarge Manufacturing Rates, And In The Landscaping Enterprise For Tree Elimination And Transplanting.
| Model | S404 80 |
| rootball diameter (mm) | Φ700-850 |
| digging depth (mm) | 600 |
| working height (mm) | 1400 |
| woking width,gate closed (mm) | 1000 |
| woking width,gate open (mm) | 1400 |
| clearance between open gate (mm) | 600 |
| volume of rootball(m3) | 0.2 |
| weigh (kg) | 900 |
| number of bades | 4 |
Tree Spade Video
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
