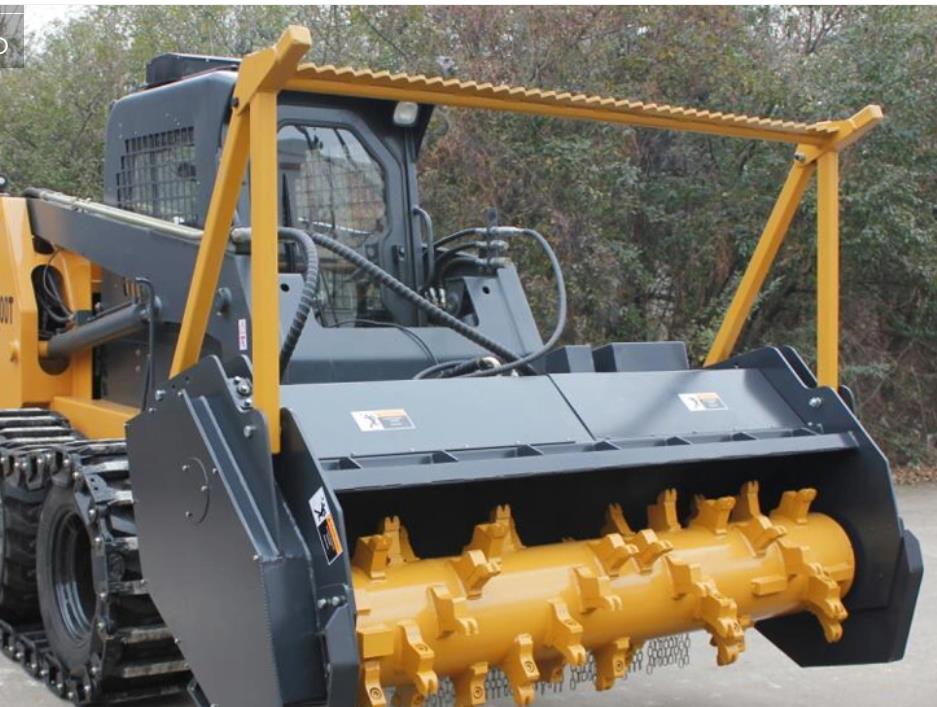

Forestry Cutter
Tree Cutting, Trimming And Thinning Removes Dead And Crowded Branches, Improves The Safety, Life And Aesthetics Of Trees, Opens Up Landscaping And Maximises Views. Tree Cutting And Trimming Is Especially Important During The Typhoon / Hurricane Season As Trees Can Cause Major Damage To Surrounding Objects And Buildings.
Provides You a Complete Tree And Brush Management Package.
Cut Higher Trees And Limbs Down To Size, Grind Trees From Top To Bottom, Produce Mulch.

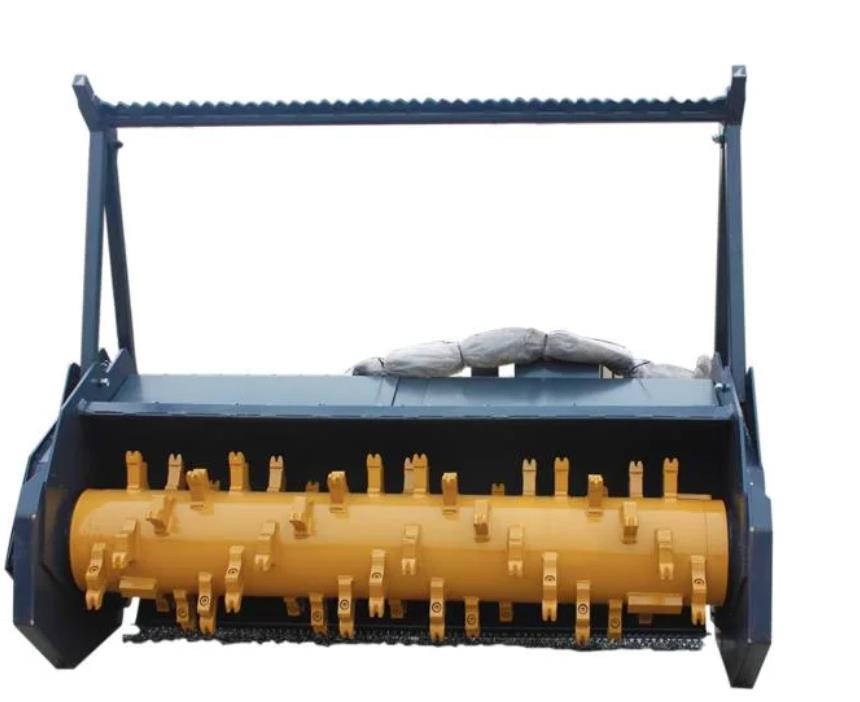

Spiral Tooth Pattern Allows One Tooth To Engage At a Time For Smoother Operation And Less Horsepower Demand.
Double-Tipped Carbide Teeth Efficiently Rip Through Hard And Soft Woods, Provide Long Life.
Can Operate Below Grade To Process Mulch Into The Soil.
Pressure Gauge Is Visible From The Seat To Help Operator Run The Attachment At Peak Efficiency.
The Standard Front Gate Can Reduce Front Discharge Of Material And Can Promote Longer Processing Into Finer Mulch.

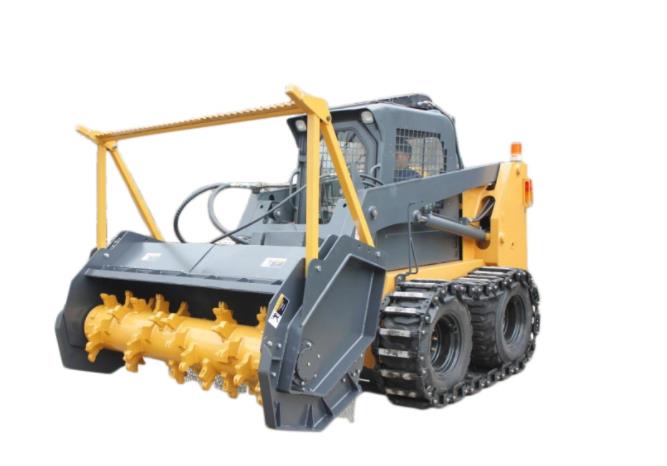

The TopwinSkid Steer Loader Forestry Applications Kit Protects The Operator And The Machine.
Model | RM-60 | RM-72 | RM-84 |
Length (mm) A | 1447 | 1447 | 1447 |
Width (mm) B | 1894 | 2206 | 2434 |
Height (mm) C | 1643 | 1643 | 1643 |
Working Width (mm) E | 1524 | 1680 | 1830 |
Weight(Kg) | 1150 | 1250 | 1380 |
Pressure (Mpa) | 14-21 | 14-21 | 14-21 |
Required Host Machine Lifting Capacity (T) | >1 | >1.1 | >1.2 |

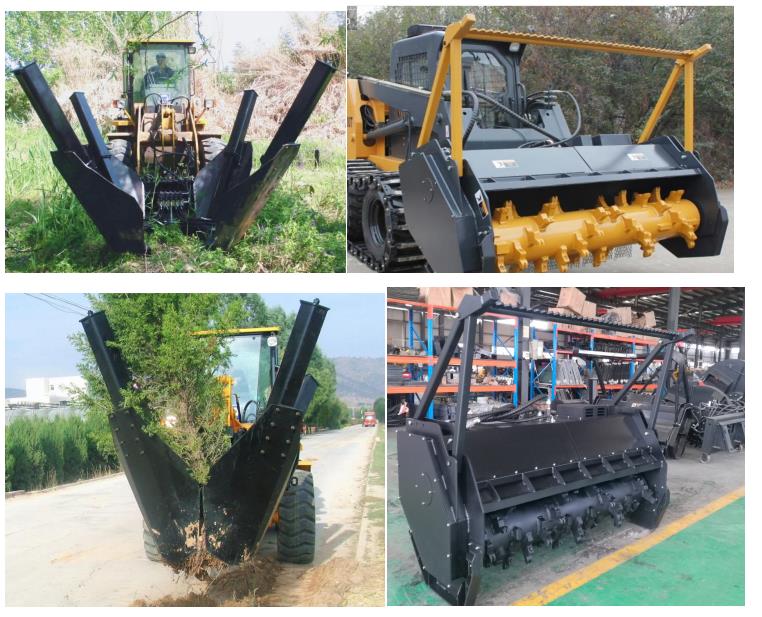

Tree Spade Video
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
