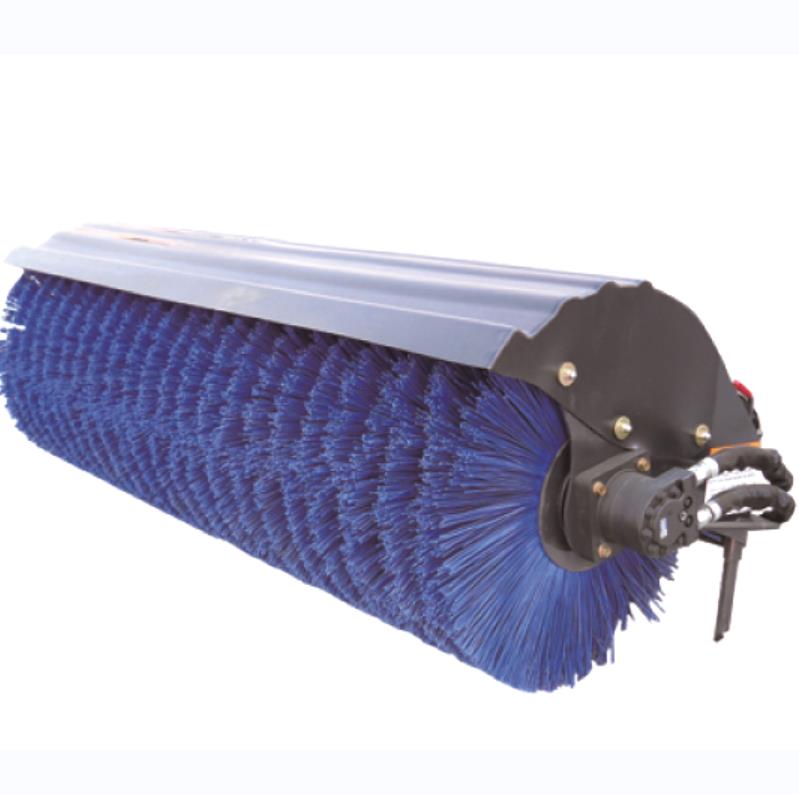

Mini Road Sweeper For Sale
Features:
This Attachment Can Quickly Clean Snow And Dirt On The Streets,
Squares And Roads. It Doesn't Damage Surface Of The Road.
It Has The Characteristics Of Convenient Installation,
Flexible Use, High Work Efficiency,
Reliable Quality And Superior Performance.
Description:
Snow Sweeper Road Brush Series:Box Brush,Round Brush,Wire Plate Brish,Center Rolling Brush ,
Brush Barriers, Tunnel Cleaning Brush Apply To Roads, Hotels ,Factory Cleaning, Sanitation, Cleaning, Etc.
The Brush Is The Latest Innovation . This Machine Features a Fully Galvanised Hood And Bristle Carriers,
It Can Be Fitted Easily To Forks, Three Point Linkage Or Quick Attach For Telehandler's Etc.
Bristle Strips Are Polypropylene Leaving Them Very Durable, Animal Friendly And Easily Replaced.
Of Course The Material Brush Also Have Nylon + Steel Wire.
The Brush Can Be Used In Many Different Applications From The Farmyard, Warehouse, Golf Course,
Equestrian Centre's, Builders Yard, Grain Stores And Is Also Very Effective In The Snow.
Item | unit | 68＂ | 84＂ |
Operating Width | mm | 1727 | 2133 |
Brush diameter | mm | 812 | 812 |
Operating pressure | MPa | 16-21 | 16-21 |
Operating flow | L/mm | 50-125 | 50-125 |
Weight | kg | 420 | 480 |
Length | mm | 1780 | 1780 |
Width | mm | 2050 | 2450 |
Height | mm | 900 | 900 |
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
