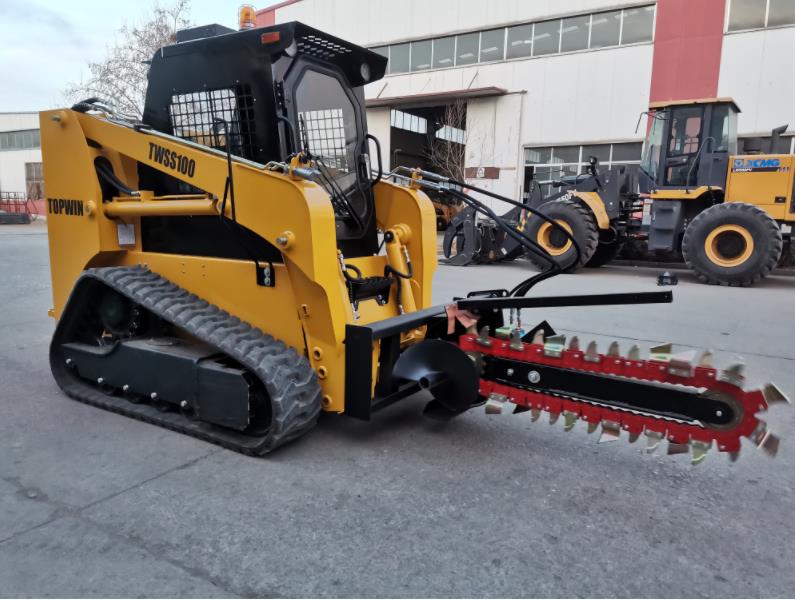

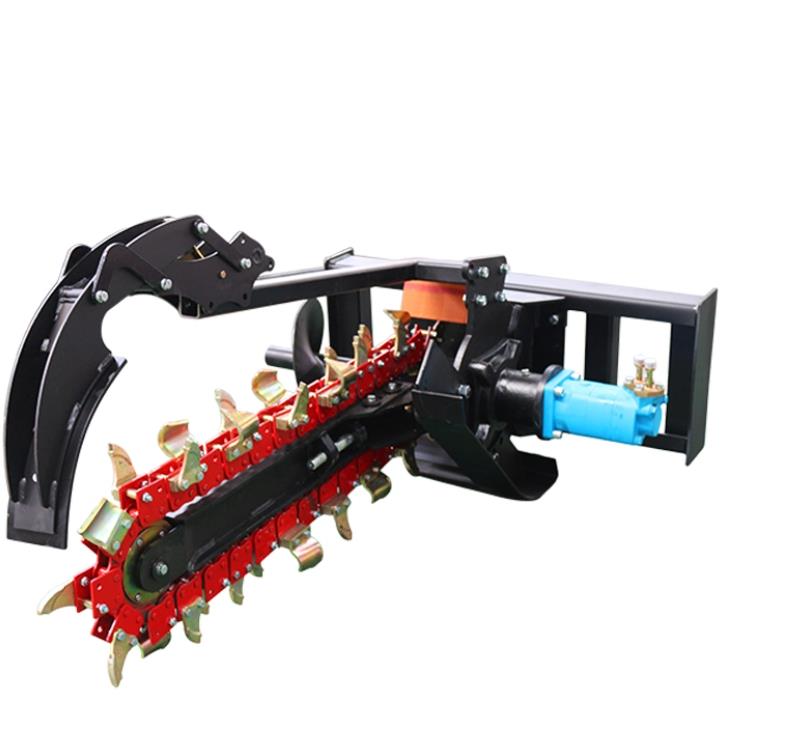

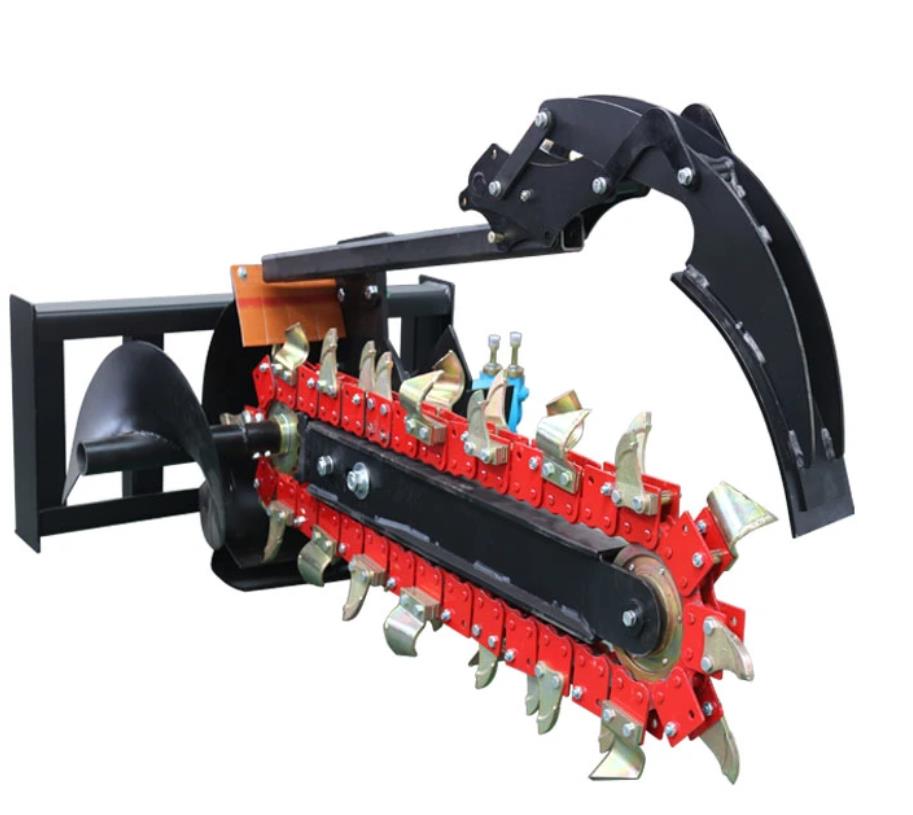

Trencher Attachment
With Only The Highest Quality Hydraulic Motors
And Using Planetary Gearbox
Our Trenchers Have The Reliability And Power To
Ensure Your Trenching Is Carried Out With Ease.

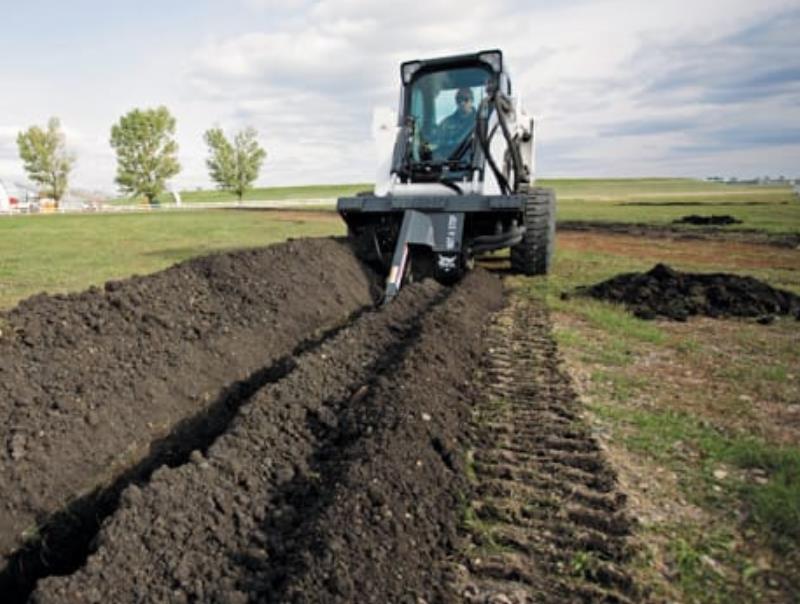

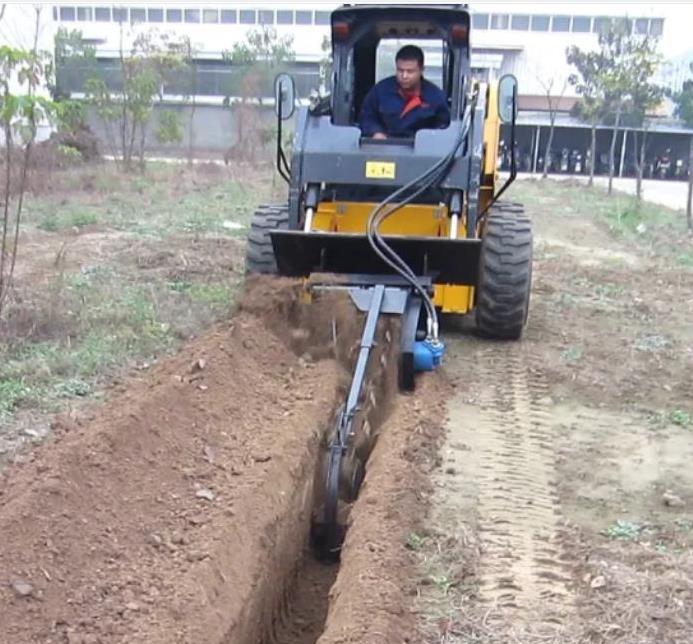

Chains Are Handy In Numerous One Of a Kind Enamel Configurations, Whether Or Not You Are Trenching In Smooth Ground, Blended Grounds Or Even Permafrost Permitting You To Get The Job Performed No Count What Surroundings You Are In. With The Precision Depth Manipulate Skid The Operator Can Precisely Set The Favored Trench Depth And Be Certain Of Accuracy For The Complete Length.
Model | T-90 | T-120 | T-200 |
Digging Width(Mm) | 200 | 300 | 150-300 |
Digging Depth(Mm) | 900 | 1200 | 2000 |
Work Pressure (Mpa) | 16 | 16 | 16 |
Work Flow(L/Min) | 50-75 | 50-125 | 50-125 |
Length(Mm) | 1950 | 3300 | 3300 |
Width(Mm) | 1160 | 1265 | 1265 |
Height(Mm) | 850 | 900 | 900 |
Weight(Kg) | 320 | 530 | 730 |
Our Factory
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
