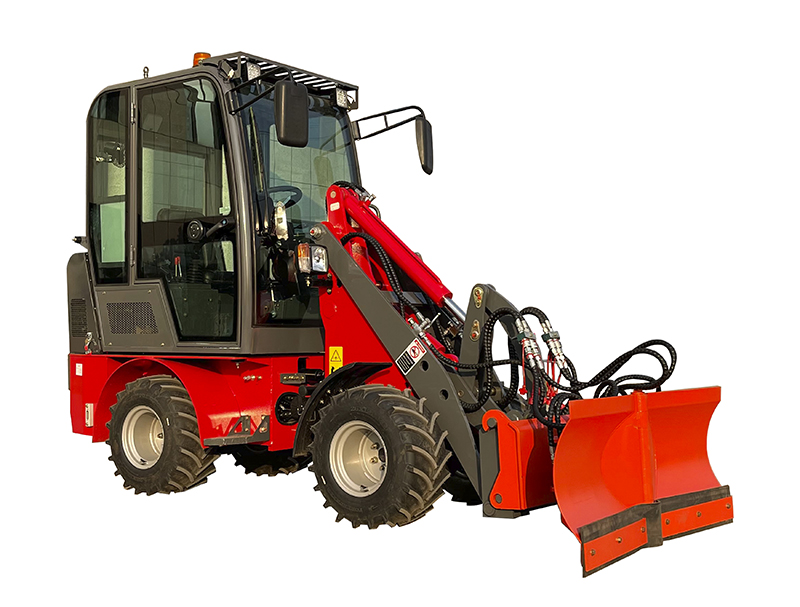

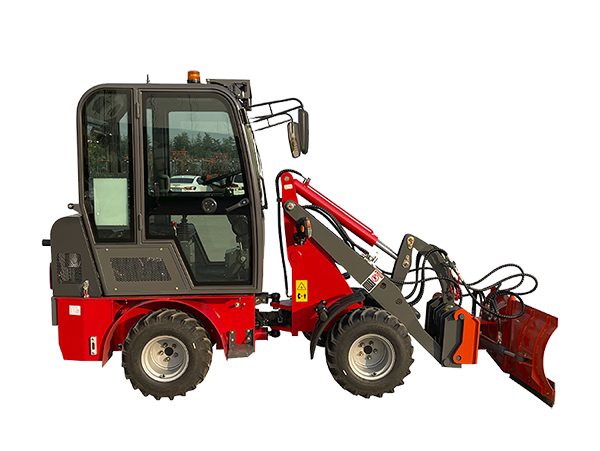

Wheel Loader
The TOPWIN TWL906 is a compact unit that very few others can offer.
With Yanmar engine and Italy Hydrostatic transmission system,
The ER06 suits perfectly to special applications like limited access areas.
The TOPWIN TWL906 is a compact unit that very few others can offer. With Yanmar engine and Italy Hydrostatic transmission system, the ER06 suits perfectly to special applications like limited access areas.
Details
Performance | rated loading (kg) | 600 |
overall weight (kg) | 1700 | |
rated bucket capacity (CBM) | 0.26 | |
maximum tractive force (kN) | 16.7 | |
maximum breakout force (kN) | 13 | |
maximum grade ability(°) | 20 | |
maximum dump height(mm) | 1821 | |
maximum dump reach(mm) | 829 | |
overall dimension (L×W×H) (mm) | 3672*1150*2216 | |
minimum turning radius(outside of wheels)(mm) | 2466 | |
Oscillation angle | 8° | |

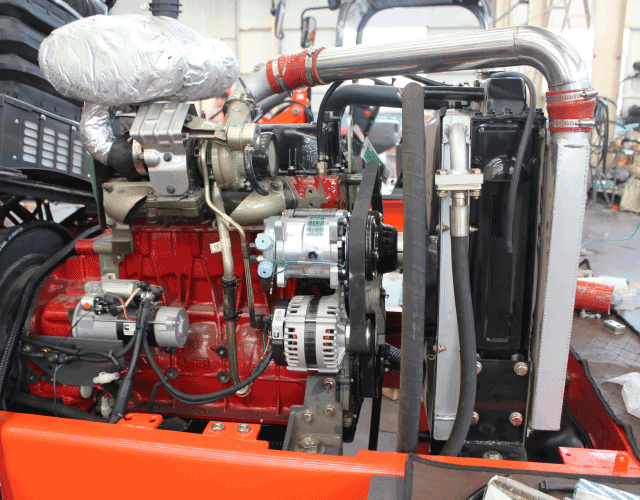

Engine | model | KUBOTA D1105 |
type | lnline water cooled, four stroke | |
No. of cylinder-bore/stroke (mm) | 3-78×78.4 | |
displacement (L) | 1.123 | |
rated power(kW) | 18.2 | |
Idle speed (r/min) | 850-900 | |
rated speed (r/min) | 3000 | |
maximum torque N.m @speed r/min | 70.4@2200 | |
Transmission system | Type | Closed piston pump |
gear shift | Electric, Stepless | |
maximum speed | 12km/h | |
Drive axles | main reducing mode | Bevel gear grade l reduction |
wheel base (mm) | 1378 | |
wheel tread(mm) | 850 | |
ground clearance(mm) | 330 | |
Hydraulic system | system working pressure (Mpa) | 18 |
boom lifting time (s) | 3.2 | |
total time (s) | 6.3 | |
fuel tank capacity (L) | 40 | |
unction of leveling automatically | yes | |
Brake system | service brake | Hydrostatic brake |
parking brake | Manual drum brake | |
Tyre | type specification | 26*12.12 |
front tyre pressure(kPa) | 350 | |
rear tyre pressure(kPa) | 350 |
