Backhoe Loader Price In Australia
1. All Sorts Of Attachments Are Optional, Such As Snow Blade, Street Sweeper, Hydraulic Hammer, Grapple, Pallet Fork, To Meet Special Customer's Requirement.
2.Can Geared Up With Rops Cabin As Optional.
3.Can Geared Up With Df Cummins 4Bta3.9-C100 Engine As Optional.
4.Can Outfitted With Air Conditioner,Break Hammer,4in 1 Bucket,6 In 1 Bucket,Quick Hitch And Pre-Breaking Line As Optional.
Product Characteristics
1. Luxury Enlarged Cabin, Luxurious Seat , Cabin With Hydraulic Ahead Tilting Function, Convenient Maintenance.
2. The Pinnacle Cover Of The Cabin Can Be Eliminated For Container Delivery.
3. Streamline Enlarged Gas Tank With Tilting Oil Port, Handy To Refill
4. Hydraulic Componentes Use Well-Known Manufacturer , With Lengthy Working Lifestyles And Secure Performance; Oversize Water Tank,High-Temperature Resistant;
5. Large Radiator Appropriate For Very Warm Area.
6. Hydraulic Guidance Machine , Convenient To Control
7. Hydraulic Walking, With Chinese Exceptional Torque Converter, Contiuously Variable Transmission;Service Brake Is Air Over Hudraulic Discc Brake On Four Wheels, With Blast Pump
8. It Have All The Features Of 180°Wheel Excavator And The Identical Wheel Loader.
9. Excellent Running Overall Performance With Excessive Working Efficiency
Small Backhoe Excavator Features, Shovel Transport To Ensure That The Original Load Function Is Not Affected, When The Excavation Part Folding Weight, Excavation Load Part Chassis Support, The Two Parts Do Not Affect Each Other, But Also Can Help Each Other.Power Is Mainly Equipped With a Four-Cylinder 490 Engine, More Than 50 Horsepower, Energy-Saving And Efficient, Enough Power 30% Throttle Can Be Normal Excavation.When Excavating, Loading And Exchanging, The Seat Rotates At Any Time, With Wide Sight And Simple Operation.The Chassis Part Adopts Weight Axle, Four-Wheel Drive Is Equipped With Engineering Tires, Which Has Good Cross-Country Passability.

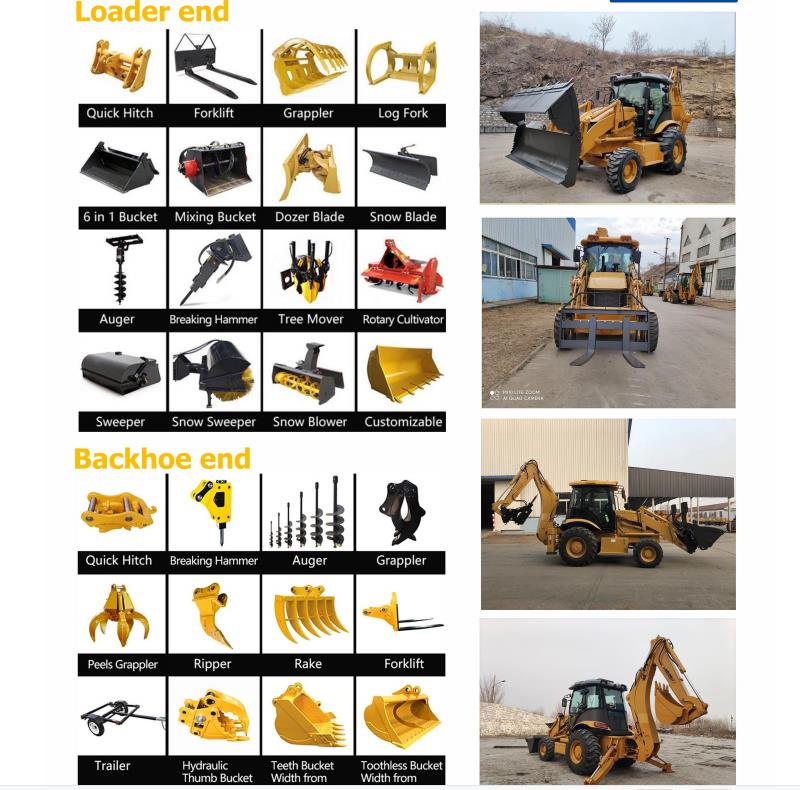

Backhoe Loader attachments:
A tool for every job
Jack Hammer Or Breaking Hammer Or Breakers, Quick Hitches,Pallet Forks,
Fork Frame, Auger Or Earth Drill, Thumb Bucket, Excavator Buckets,
Sweeper, Grapple, Ripper, Rake, Jaw Bucket,
Shovels, Hand Held Tools, Compactor, Patch Planer
Transport Dimension | Overall Operating Weight | 8200KG |
mm L*W*H | 6230×2365×3752 | |
Wheel base | 2200mm | |
Min. Ground Clearance | 300mm | |
Bucket Capacity | 1.0m3 | |
Breakout Force | 38KN | |
Loading Lifting Capacity | 2500KG | |
Bucket Dumping Height | 2650mm | |
Bucket Dumping Distance | 1025mm | |
Digging Depth | 52mm | |
Backhoe Capacity | 0.3 m3 | |
Max. Digging Depth | 4085mm | |
Swing Angle of Excavator Grab | 190° | |
Max. Pulling Force | 39KN | |
Engine | Model | YUCHAI YC4A105Z-T20 engine (Optional: Cummins engine) |
Rated Power | 75KW | |
Steering System | Model of Steering Device | BZZ5-250 |
Steering Angle | ±36° | |
Min. turning radius | 6581mm | |
Pressure of the system | 12Mpa | |
Axle | Manufacturer | Feicheng Axle Factory |
Main Transmission Type | Double Reduction | |
Final Reducer | Single Stage Final Reducer | |
Rated Loader of Axle | 4/18.5t | |
Torque Converter | Model | YJ280 |
Type | Single-stage Three Elements | |
Max. Efficiency | 84.40% | |
Inlet Pressure | 0.4Mpa—0.55 Mpa | |
Outlet Pressure | 1.2Mpa—1.5 Mpa | |
Cooling Method | Oil-cooling Pressure Circulation | |
Gearbox | Type | Fixed Shaft Power Transmission |
Oil Pressure of Clutch | 1373Kpa—1569 Kpa | |
Gears | Two Gears Ahead, Two Gears Astern | |
Max.Speed | 22Km/h | |
Tyre | Model | 14-17.5/19.5L-24 |
Pressure of Front wheel | 0.22 Mpa | |
Pressure of Back Wheel | 0.22 Mpa | |
Brake System | Service Brake | Air Over Oil Caliper Brake |
External Type | ||
Self-regulation | ||
Self-balance | ||
Emergency Brake | Operation Power Implementing brake | |
Manual Operation Power Terminating Brake | ||
Hydraulic System | Digging Power of Excavator Grab | 46.5KN |
Digging Power of Dipper | 31KN | |
Bucket Lifting Time | 5.4S | |
Bucket Lowering Time | 3.1S | |
Bucket Discharge Time | 2.0S |
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
