Electric Fork Lifts
Rated Capacity: 1000KG
Power Mode: Lead-Acid Battery
Tyre Model: Solid Tyre
Whole Weight: 1650kg
Equipped With Unique Imported American Curtis Electric Powered Manipulate System; High Voltage And Giant Capability Battery Can Furnish The Forklift With Sturdy Power; Dc Or Ac Motors Are Optionally Available In Accordance To Customers' Requirements.
2. Designed To Work In The Rain, Electric Powered Forklift Can Be Used In Quite a Number Types Of Moist And Dry Environments.
3. Ergonomics Adjustable Seat:Designed In Accordance To The Ergonomic Principles, Make The Operation Plenty Satisfied And Additionally Relieves The Fatigue Triggered With The Aid Of Lengthy Non-Stop Operation.
4. Bigger And Non-Slip Step Make Running Handy And Safe.
5. The Preferred Led Lamps And Warning Lights Make It Safer ,More Electricity Environment Friendly And Create Higher Working Condition.
6.High Voltage And Giant Potential Battery Can Grant The Forklift With Sturdy Power;Gs & Hoppecke Battery Team Is Optionally Available In Accordance To Customers' Requirements.

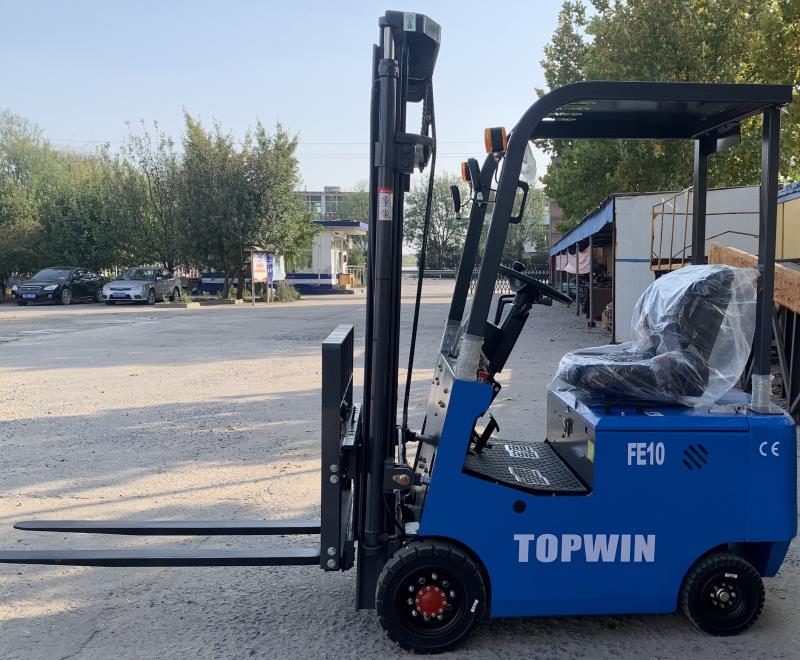

| Model | FE10 | |
| Power type | Battery | |
| Rated load | 1000kg | |
| Load center distance | 400mm | |
| Driving type | seat | |
| Length | With fork | 2592mm |
| Without fork | 1652mm | |
| Whole Width | 940mm | |
| Height | Mast lowered height | 2040mm |
| Overhead guard height | 1950mm | |
| Max working Height | 3820mm | |
| Distance from seat to top light | 970mm | |
| Wheel base | 1020mm | |
| Front overhang | 327mm | |
| Back overhang | 3130mm | |
| Front wheel tread | 840mm | |
| Back wheel tread | 741mm | |
| Min Floor clearance | 90mm | |
| Max lifting height | 3000mm | |
| Free lifting height | 0mm | |
| Fork changing | 820/190 | |
| Min Turning radius | 1800 | |
| Min Right angle aisle width | 2000 | |
| Tilt angle a/β | 6°/12° | |
| Max lifting speed without goods | 250mm/s | |
| Max lifting speed with full goods | 220mm/s | |
| Max speed without goods | 12km/h | |
| Max speed with full goods | 11km/h | |
| Max climbing angle | ≤10 | |
| Whole weight | 1650kg | |
| Driving Wheel | 2x/2 | |
| Tyre model | Solid tyre | |
| Front Tyre | 15x4 1/2-8 | |
| Rear Tyre | 3.50-5 | |
| Hand Brake | Hydraulic Pedal | |
| Brake type | M-Hand | |
| Battery Volt/ capacity | 2X24V/160 | |
| Driving motor power | 4.0AC | |
| pump power | 4.0DC | |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
