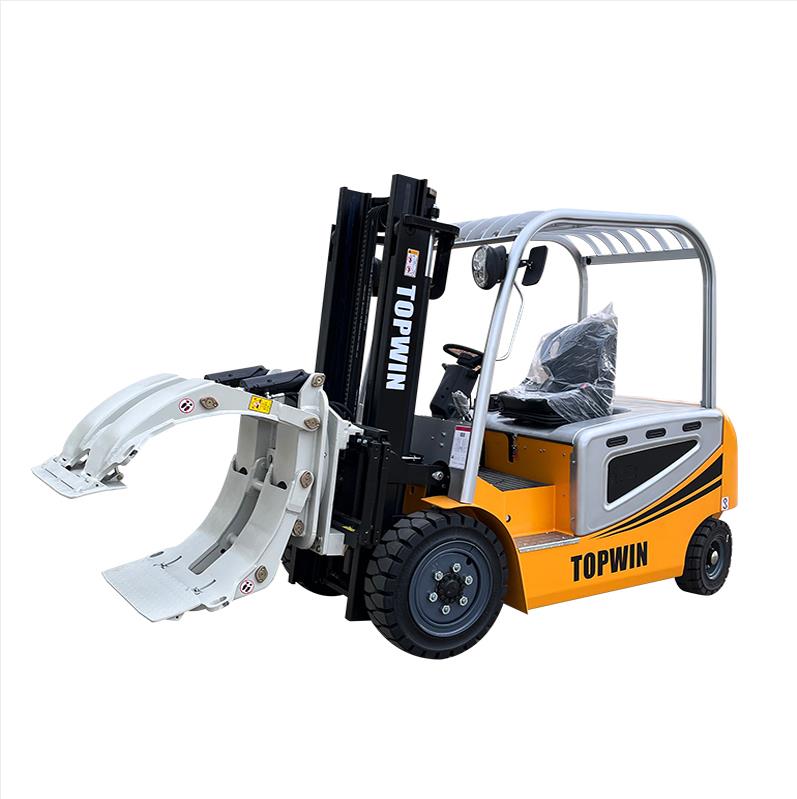

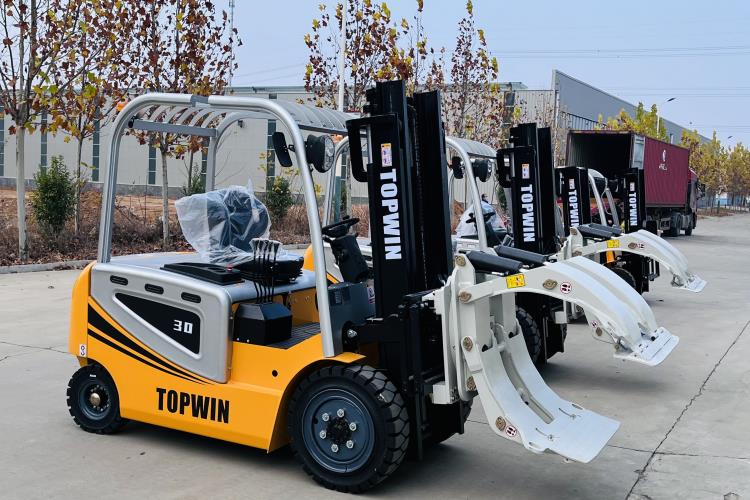

Electric Forklift Australia
Heavy Duty Four Wheel Drive off Road 1.5ton
1.8ton two Ton Three Ton 5 Ton Capacity
Electric Forklifts Truck Battery Hydraulic Forklift
with paper roll. bale carton ,block, drum clamp,
with push/pull, rotators, multiple loads handlers,
carpet boom ide shifter; fork positioner
Product Description
This Is a High-End Electric Powered Forklift With Excessive Fee Performance.
Its Complete Overall Performance Is Greater Than That Of Common Electric Powered Forklift,
And Its Operation Effectivity Is Higher.
-The Roof Safety Frame, Instrument And All Cowl Components Are The Identical In All Series,
Handy For Preservation And Robust In Versatility
-Use Massive Tires To Enhance Floor Clearance And Passing Performance
-Compact Structure, Small Size And Small Turning Radius Make The Forklift Extra Flexible
-This Forklift Has Exceeded The Ipx4 Water Resistant Grade Test.
Lithium Battery:
1. Lithium Battery Does Now Not Incorporate Heavy Metals, Which Is Safer And Does No Longer Generate Hydrogen At Some Stage In Charging, So It Is Extra Environmentally Pleasant And Zero Pollution.
2. Short Charging Time And Lengthy Working Time.
3 Lithium Battery Power Conversion Up To 97%.
4. The Cycle Existence Is 3000 Times, Which Is Three Instances That Of Lead-Acid Battery,So Does Warranty.
5. Low Self Discharge, Can Be Saved For a Lengthy Time.
6. High Electricity Density And Mild Weight.
7. The Temperature Vary Is Wide, From - 20 ºc To 60 ºc.
8. Lithium Battery Is Extra Cost-Effective.
9. Lithium Battery Can Work For a Lengthy Time, And The Subsequent Strength Provide Price Is Cheap.
10. Energy > a Hundred And Fifty H / Kg.
11. Lithium Battery Renovation Free, Absolutely Enclosed Installation.
| Model | FE25 | FE30 | ||
| Driving Mode | seated | seated | ||
| Rated Capacity | Q | kg | 2500 | 3000 |
| Load Center | C | mm | 500 | 500 |
| Power Mode | lead-acid battery | lead-acid battery | ||
| Wheelbase | L1 | mm | 1600 | 1850 |
| Tyre Type | solid tyre | Pneumatic tyre | ||
| Front Track | W3 | mm | 1010 | 1002 |
| Rear Track | W2 | mm | 880 | 994 |
| Tyre Size(Front) | 6.5-10 | 28x9-15 | ||
| Tyre Size(Rear) | 16x6-8 | 18x7-8 | ||
| Front Overhang | L2 | mm | 410 | 467 |
| Height,Mast Retraction | H1 | mm | 2030 | 2057 |
| Free Lift Height | H3 | mm | / | 120 |
| Maximum Lift Height | H | mm | 3000 | 3000 |
| Height,Mast Extended | H2 | mm | 4055 | 4200 |
| Overhead Guard Height | H4 | mm | 2110 | 2200 |
| Lateral Fork Adjustment(Outside Of Forks) | W5 | mm | 1040/100 | 1100/244 |
| Fork Size(Txwxl) | T*W*L4 | mm | 40*122*1070 | 45*122*1070 |
| Overall Length | L＇ | mm | 2330 | 2547 |
| (Fork Excluded) | ||||
| Overall Width | W1 | mm | 1160 | 1225 |
| Turning Radius | R | mm | 2370 | 2300 |
| Ground Clearance Under Mast | H5 | mm | 88 | 82 |
| Ground Clearance At Center Of Wheelbase(Full Load) | H6 | mm | 110 | 145 |
| Width Of Aisle Right-Angle Stacking | Ast | mm | 3750 | 4100 |
| (Pallet 1000X1000Mm Clearance 200Mm) | ||||
| Width Of Aisle Right-Angle Stacking | Ast | mm | 3950 | 4300 |
| (Pallet 1200X1200Mm Clearance 200Mm) | ||||
| Lifting Speed,Full Load/Without Load | mm/s | 210/250 | 200/300 | |
| Lowering Speed,Full Load/Without Load | mm/s | 450 | 450 | |
| Service Mass(With Battery) | kg | 3150 | 4300 | |
| Battery Voltage /Nominal Capacity | V/Ah | 72V/210Ah | 72V/260Ah | |
| Battery Weight | kg | 360 | 430 | |
| Driving Motor Power-60 Minutes | kW | 9 | 9 | |
| Lifting Motor Power-15 Minutes | kW | 7.5 | 9 | |
| Driving Motor Controlling Mode | MOSFET/AC | MOSFET/AC | ||
| Lifting Motor Controlling Mode | MOSFET/AC | MOSFET/AC | ||
| Service Brake/Parking Brake | Hydraulic/Mechanical | Hydraulic/Mechanical |
Details
High Quality Electrical Components
Original Imported World Famous Brand Controller. After Professional Ad-Justment,
Walking And Upgrade Control Is Precision And Efficiency,
Excellent Performance. The Forklift With Regenerative Braking, Ramp Braking.
Fault Self-Diagnosis And Other Functions.
Reliable Steering System
Using Dynamic Load Sensing Priority Steering System, Steering Responsemore Quickly,Driving More Smoothly.
Battery Side Take Function
The Seat Opens For Quick Removal From Both Sides. Hinged Designframe Side Doors. Use Of Advanced Design
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
