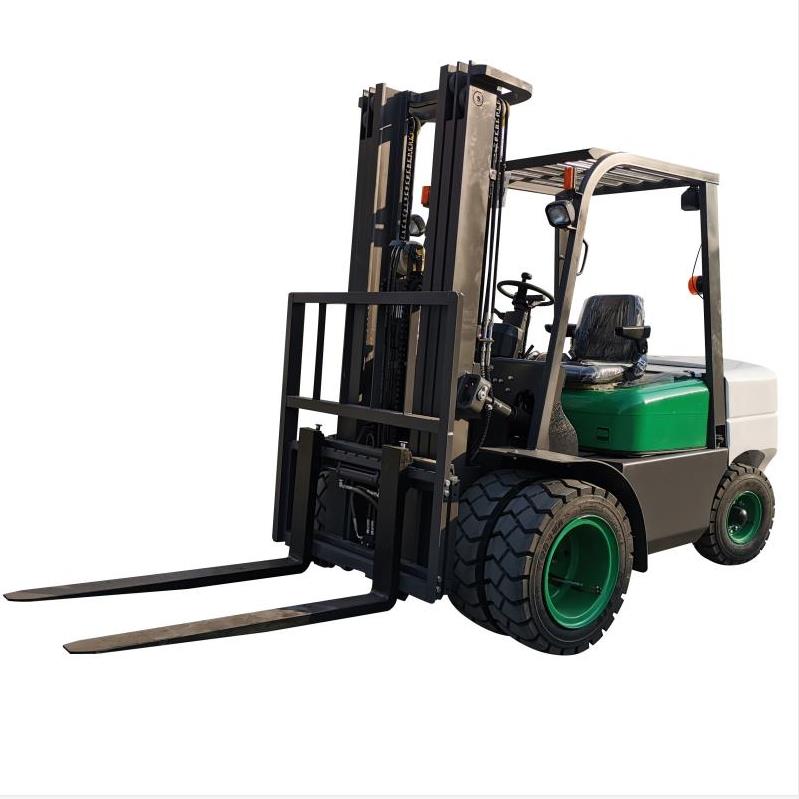

Diesel Forklift Price 3 Ton
TOPWIN Group is the expert Forklift and Lift Platform producer in China .
We design,manufacture,installation,repair,maintenance, change and export following products:
Diesel forklift,electric forklift
Scissor Lift , Cargo Lift etc
We are positive we will be your first-class preference .
Topwin Forklift Adopts The Streamline Design That Makes The Appearance More Pleasing,Using Domestic Well-Known Engine Brand Which Is Powerful, Dependable, Easy To Service ,And With Low Emissions And Fuel Consumption.Our Forklift Can Reduce Your Cost,Provide Greater Productivity And Profitability For You.
We Also Provide 1.5t/2t/2.5t /3t /3.5t/ 4t/ 4.5t/ 5t /7t/ 8t /10 Ton Forklift To You !
1. Professional Manufacturer
2. Quality First, Profit Second, 100% Qualified
3. Fast Delivery Time:5-10 Days Finished Production
4. Accept Customization And Oem,Odm
1. Mast: Triplex Full Free 4m 4.5m 6m 7m Mast
2. Engine: Optional Japan Original
Nissan engine Or Isuzu engine3. Side Shifter: China Anqing Or Usa Cascade Brand
4. Tires: Double The Front Tires, Stable Tires
5. Attachment:
Side shifter,Fork positioner, Side shift and fork positioner,Bale clamps,Paper roll clamps,Flat bag clamps, Carton clamps,Block clamps,Rotator,
Rotating clamps,Hinged fork,Sanitation fork,Bucket, Load stabilizers,
Single double pallets handlers, Log holder,Tyre clamps, Push/Pull,
Fertilizer throw-out,Drum clamps,Carpet boom,Cargo boom.
6. Others: Double Air Filter, Vertical Exhaust, Fork Extension, Cab, Fork Positioner
| Model | CPCD30 | CPCD35 | |
| Rated Lifting Load | kg | 3000 | 3500 |
| Load Center Distance | mm | 500 | |
| Free lifting Height | mm | 160 | |
| Overall Length(With Fork/Without Fork) | mm | 3752/2682 | 3763/2693 |
| Width | mm | 1225 | |
| Overhead Guard Height | mm | 2090 | |
| Wheelbase | mm | 1700 | |
| Minimum Ground Clearance | mm | 135 | |
| Mast Tilt Angle(Front/Rear) | % | 6/12 | |
| Tire No(Front ) | 28X9-15-14PR | ||
| Tire No(Rear) | 6.5-10-10PR | ||
| Minimum Turning Radius(Outside) | mm | 2400 | 2420 |
| Minimum Right Angle Aisle Width | mm | 4260 | |
| Fork Size | mm | 1220X125X45 | |
| Maxmum Working Speed(Full-Load/No Load) | km/h | 18/19 | 19/19 |
| Maxmum Speed Speed(Full-Load/No Load) | mm/s | 440/480 | 330/370 |
| Maximum Gradeability (Full-Load/No Load) | % | 15/20 | |
| Total Weight | kg | 4250 | 4500 |
| Engine | xinchai 490.40KW | ||
| Type Of Power Shift | Hydraulic Transmission/Automatic | ||
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
