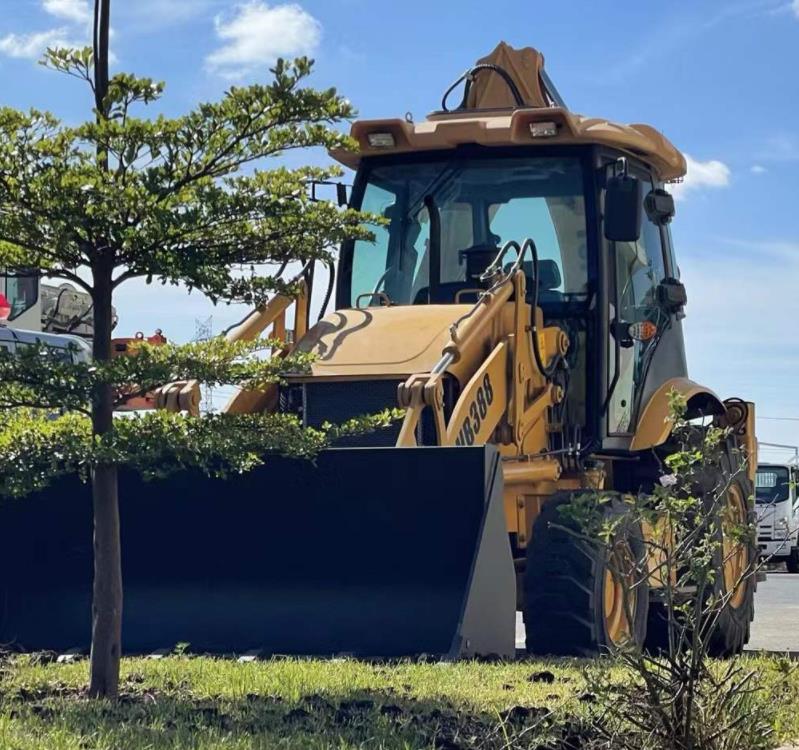

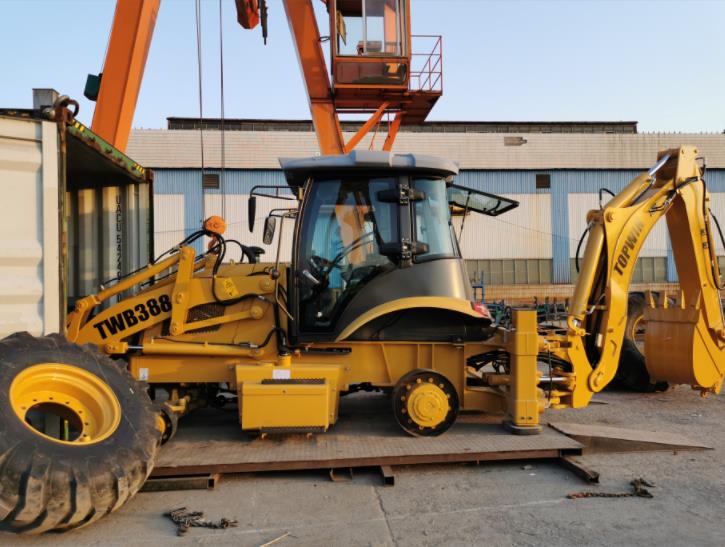

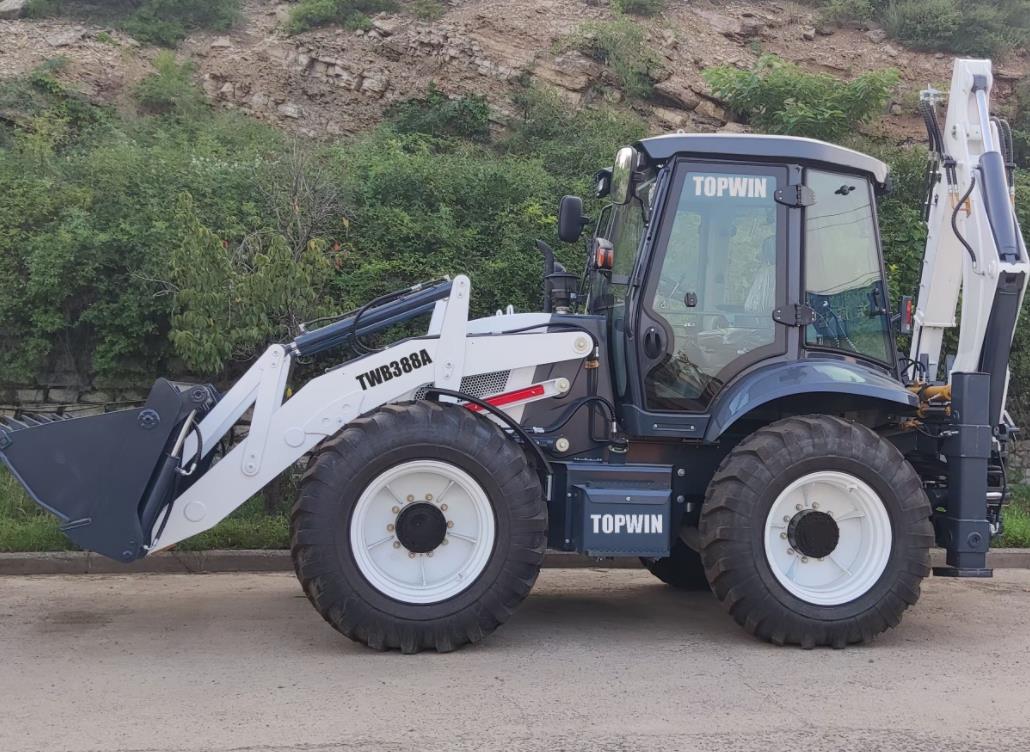

Backhoe Loader Cost
Can Equipped With Air Conditioner,Break Hammer,
4in 1 Bucket,6 In 1 Bucket,
Quick Hitch And Pre-Breaking Line As Optional.
1.Hydraulic Componentes Use Well-Known Manufacturer , With Lengthy Working Lifestyles And Steady Performance; Oversize Water Tank,High-Temperature Resistant;
2. Large Radiator Appropriate For Very Warm Area.
3. Hydraulic Guidance Gadget , Convenient To Control
4. Hydraulic Walking, With Chinese First-Class Torque Converter, Contiuously Variable Transmission;Service Brake Is Air Over Hudraulic Discc Brake On Four Wheels, With Blast Pump
5. It Have All The Features Of 180°Wheel Excavator And The Equal Wheel Loader.
6. Excellent Working Overall Performance With Excessive Working Efficiency
7. All Sorts Of Attachments Are Optional, Such As Snow Blade, Street Sweeper, Hydraulic Hammer, Grapple, Pallet Fork, To Meet Exclusive Customer's Requirement.
8.Can Outfitted With Rops Cabin As Optional.
9.Can Geared Up With Df Cummins 4Bta3.9-C100 Engine As Optional.
10.Can Geared Up With Air Conditioner,Break Hammer,4in 1 Bucket,6 In 1 Bucket,Quick Hitch And Pre-Breaking Line As Optional.
| ansport Dimension | Overall Operating Weight | 8200KG |
| mm L*W*H | 6230×2365×3752 | |
| Wheel base | 2200mm | |
| Min. Ground Clearance | 300mm | |
| Bucket Capacity | 1.0m3 | |
| Breakout Force | 38KN | |
| Loading Lifting Capacity | 2500KG | |
| Bucket Dumping Height | 2650mm | |
| Bucket Dumping Distance | 1025mm | |
| Digging Depth | 52mm | |
| Backhoe Capacity | 0.3 m3 | |
| Max. Digging Depth | 4085mm | |
| Swing Angle of Excavator Grab | 190 degree | |
| Max. Pulling Force | 39KN | |
| Engine | Model | YC4A105Z-T20 |
| Rated Power | 75KW | |
| Steering System | Model of Steering Device | BZZ5-250 |
| Steering Angle | ±36 degree | |
| Min. turning radius | 6581mm | |
| Pressure of the system | 12Mpa | |
| Axle | Manufacturer | Feicheng Axle Factory |
| Main Transmission Type | Double Reduction | |
| Final Reducer | Single Stage Final Reducer | |
| Rated Loader of Axle | 4/18.5t | |
| Torque Converter | Model | YJ280 |
| Type | Single-stage Three Elements | |
| Max. Efficiency | 84.40% | |
| Inlet Pressure | 0.4Mpa-0.55 Mpa | |
| Outlet Pressure | 1.2Mpa-1.5 Mpa | |
| Cooling Method | Oil-cooling Pressure Circulation | |
| Gearbox | Type | Fixed Shaft Power Transmission |
| Oil Pressure of Clutch | 1373Kpa-1569 Kpa | |
| Gears | Two Gears Ahead, Two Gears Astern | |
| Max.Speed | 22Km/h | |
| Tyre | Model | 14-17.5/19.5L-24 |
| Pressure of Front wheel | 0.22 Mpa | |
| Pressure of Back Wheel | 0.22 Mpa | |
| Brake System | Service Brake | Air Over Oil Caliper Brake |
| External Type | ||
| Self-regulation | ||
| Self-balance | ||
| Emergency Brake | Operation Power Implementing brake | |
| Manual Operation Power Terminating Brake | ||
| Hydraulic System | Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 31KN | |
| Bucket Lifting Time | 5.4S | |
| Bucket Lowering Time | 3.1S | |
| Bucket Discharge Time | 2.0S |
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
