8000Kg Excavator
8 ton Mini Excavator For Sale E80
Specifications
1. Convenient Control
2. Low Noise
3. Reasonable Price
4. SGS ISO

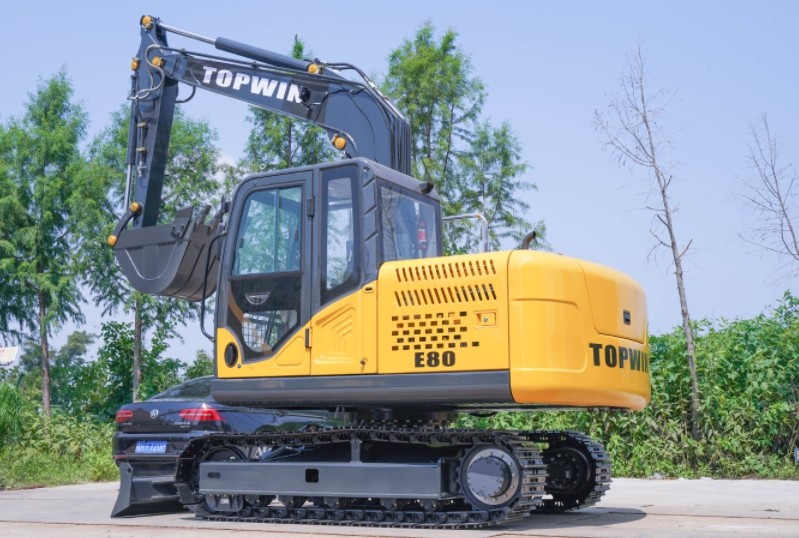

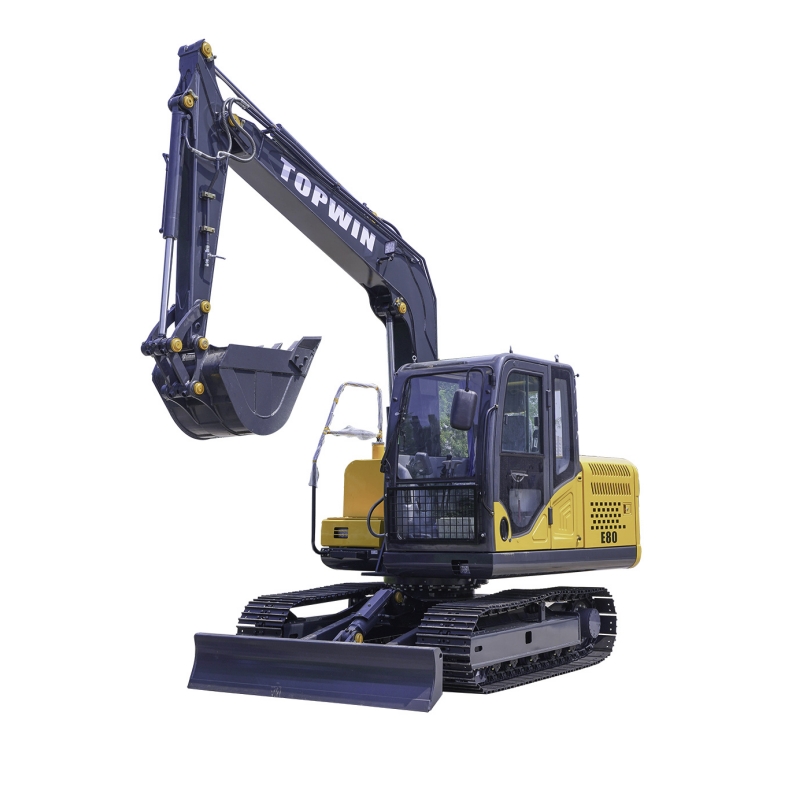

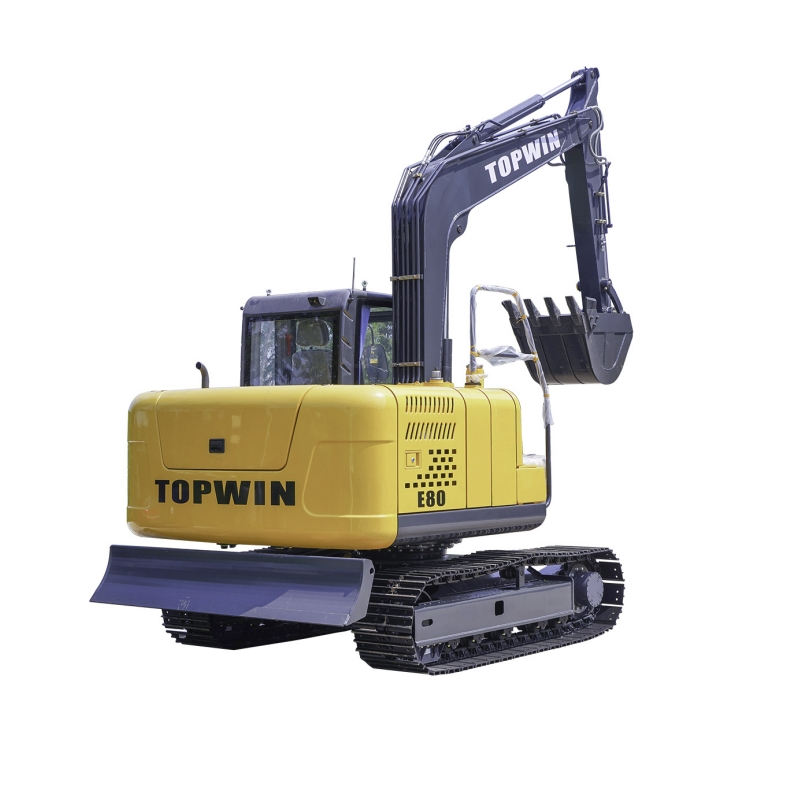

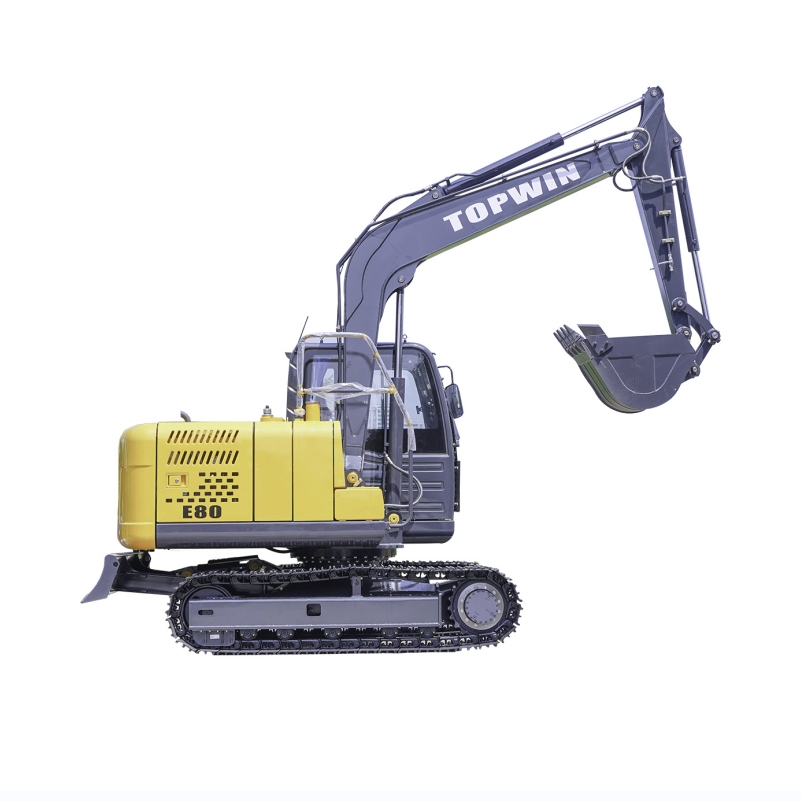

XE80 Excavator:
T•Cummins' New Technology Of High-Power Efi Engines With Robust Power, Low Gas Consumption And Excessive Reliability
•New Hydraulic System, Giant Displacement Major Pump, Massive Go With The Flow Predominant Valve, Giant Waft Area, Small Stress Loss, Greater Realistic Waft Distribution, Higher Coordination And Less Difficult Operation
•Equipped With Large-Caliber Cylinders, Optimizing The Association Of Every Key Hinge Point, Enhancing The Digging Pressure Of The Entire Machine, Putting The Computerized Supercharging Function, And Mechanically Growing The Digging Pressure As The Load Increases
•New Technology Manipulate Gadget Intelligently Adjusts The Hydraulic Absorption Strength In Accordance To The Working Conditions, And Optimizes The Gadget Matching To Make Certain The Full Overall Performance Of The Complete Machine.
•Equipped With High-Resolution, High-Brightness 5.7-Inch Colour Anti-Glare Monitoring Instrument, Smart Digital Monitoring System, With Automobile Renovation Records Prompts, Fault Self-Diagnosis And Alarm And Different Functions
•Safe And Dependable New Cab With Computerized Air Conditioning
| MODEL | E80 | |
| Operating weight (T) | 8.2 | |
| Bucket capacity (m3) | 0.32 | |
| Engine model | YANMAR 4TNV98T | YANMAR 4TNV98 |
| Rated power (kw/r/min) | 56.5/2200 | 46.3/2200 |
| Volume of fuel tank (L) | 130 | |
| Travel speed (km/h) | 5.1/2.7 | |
| Swing speed(r/min) | 10 | |
| Max climbing degree° | 70 | |
| Bucket digging force at power max (KN) ISO | 52 | |
| Average grounding pressure(KPA) | 30 | |
| Hydraulic pump model | InLine HP3V80 | |
| Maximum flow （L/min) | 165 | |
| Setting pressure (MPa) | 32 | |
| Volume of hydraulic tank (L) | 90 | |
| A Overall length (mm) | 6100 | |
| B Overall width (mm) | 2300 | |
| C Overall height （to top of boom）(mm) | 2515 | |
| D Overall height （to top of cab）(mm) | 2680 | |
| E Counterweight ground clearance (mm) | 760 | |
| F Min. ground clearance (mm) | 380 | |
| G Tail swing radius (mm) | 1755 | |
| H Track grounding length (mm) | 2150 | |
| J Track length (mm) | 2760 | |
| K Track gauge(mm) | 1700 | |
| L Track width (mm) | 2150 | |
| M Track shoe width (mm) | 450 | |
| N Turntable width (mm) | 2198 | |
| O Max. digging height (mm) | 7165 | |
| P Max. dumping height (mm) | 5065 | |
| Q Max. digging depth (mm) | 4038 | |
| R Max. vertical wall digging depth (mm) | 3505 | |
| S Max. digging depth for 2.5m horizontal plane (mm) | 3680 | |
| T Max. digging reach (mm) | 6330 | |
| U Max.digging reach at ground level (mm) | 6180 | |
| V Min. swing radius (mm) | 1795 | |
| W Max. height at min swing radius (mm) | 5500 | |
| X Distance from swing center to rear (mm) | 1755 | |
| Z Height of counterweight (mm) | 1725 | |
| A1 Grounding length (in transportation) (mm) | 3700 | |
| Arm length (mm) | 1650 | |
| Boom length (mm) | 3710 | |
Our Factory
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
