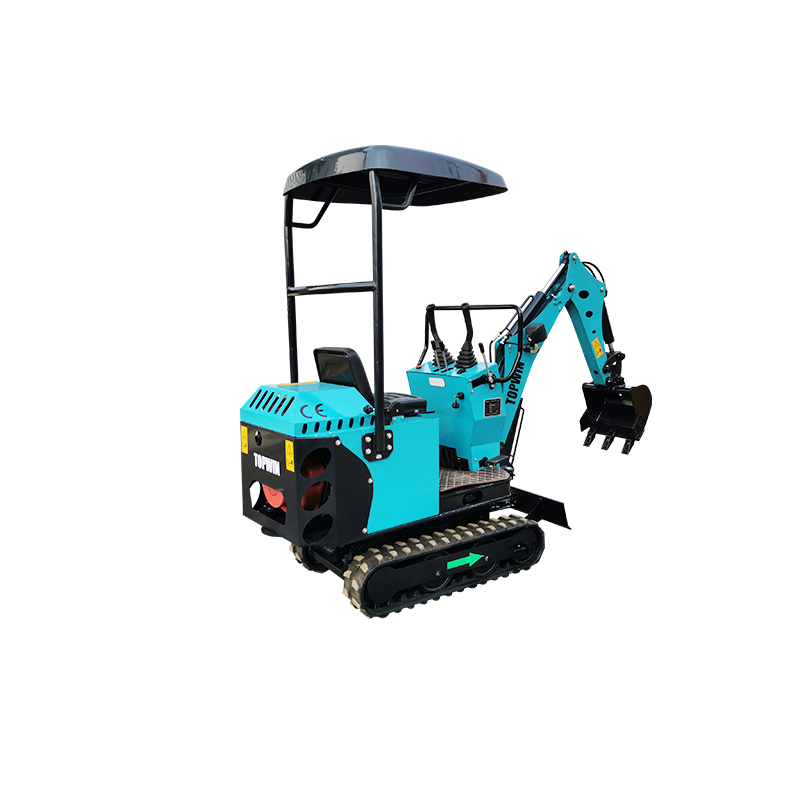

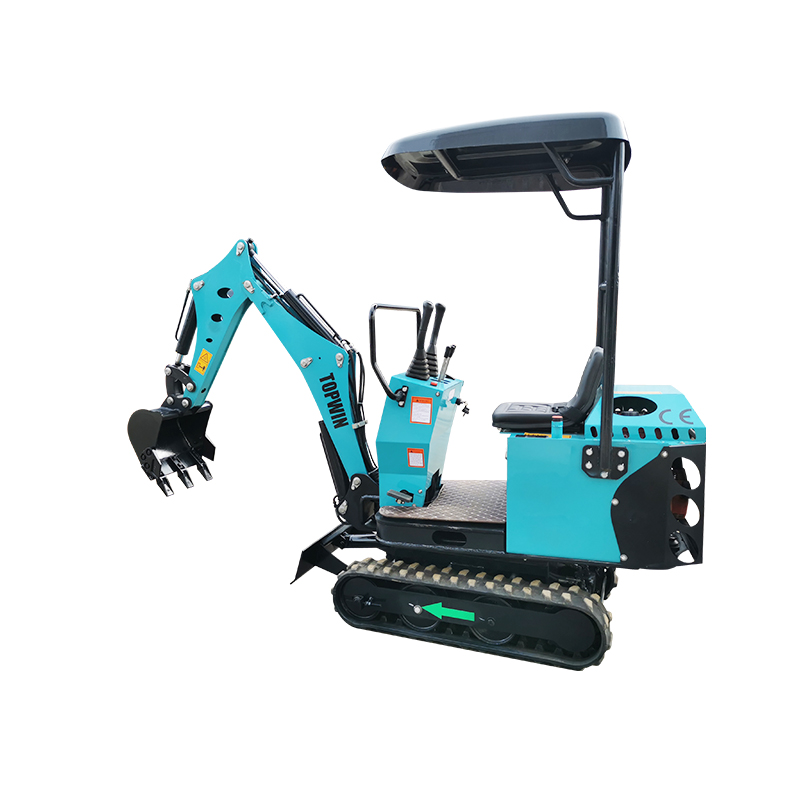

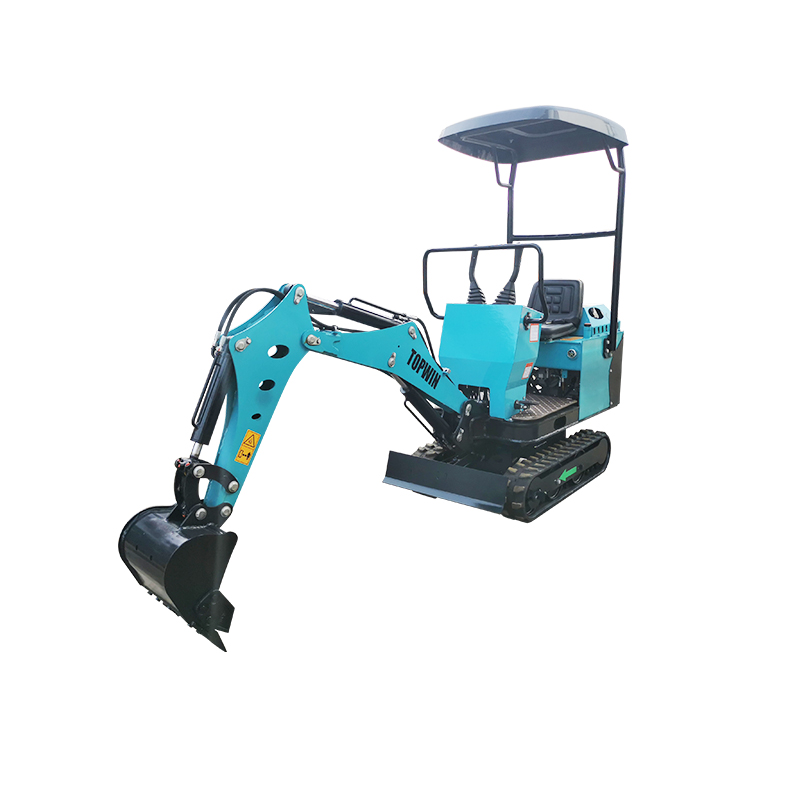

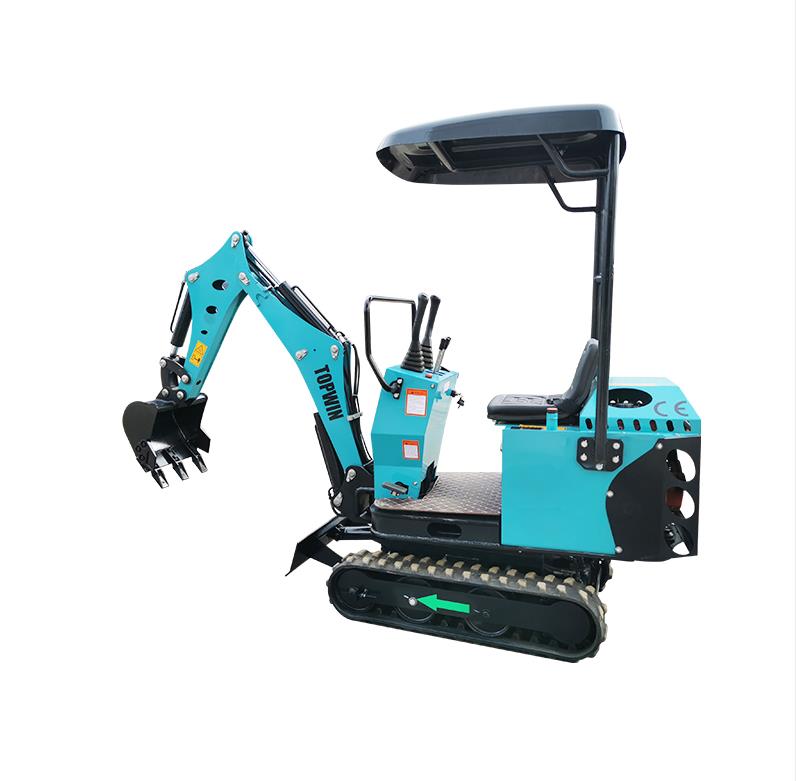

0.8 Ton Mini Excavator With Auger Attachments For Sale
Koop Brand Kd192F-1 Diesel Engine Euro V
China Brand Main Pump
China Brand Main Valve
China Brand Driving And Swing Motor
Open Cabin
Rubber Track :150mm
TOPWIN 800kg Miniature Backhoe Excavadora Mini Excavator/Micro Digger/Small Digger/Excavator Machine Is Designed For Small Works, Small Projects, In Garden, Farmland, Municipal Works, Vegetable Greenhouse,Digging Trench It Is With Small Engine, Simple Design, Easy To Maintain.
Specification
Model | E08 |
ENGINE | |
Emission Standard | EURO V/EPA engine |
Make /Model | KOOP/B&S |
Power | 7kw/9.9kw |
Number of cylinder | 1 |
TRACK SYSTEM | |
Max. Travel speed | 2.2km/h |
Width of track shoe | 150mm |
Number of bottom roller per side | 2 |
PERFORMANCE | |
Standard Bucket capacity | 0.023m³ |
Swing speed | 12 r/min |
Max. Grade ability | 58%(30°) |
Max. Bucket digging force | 7.5 KN |
Max. Arm digging force | / |
Hydraulic system pressure | 18MPa |
Operating weight | 800kg |
MACHINE SIZE | |
Overall dimension (L*W*H),mm | 2600*820*2030 |
Track length | 1140mm |
Track gauge | / |
Min. Ground clearance | 80mm |
Swing radius at tail | / |
WORKING RANGE | |
Max. Digging height | 2560mm |
Max. Dumping height | 1780mm |
Max. Digging depth | 1000mm |
Max. Vertical digging depth | |
Max. Digging radius | 2575mm |
Min. swing radius | 1100mm |
Max. Lifting height of blade | 150mm |
Max. Cutting depth of blade | 100mm |
Boom swing angle(Left/Right) | / |
Shipping method 20 feet container/40feet HC container | 6/20 units |

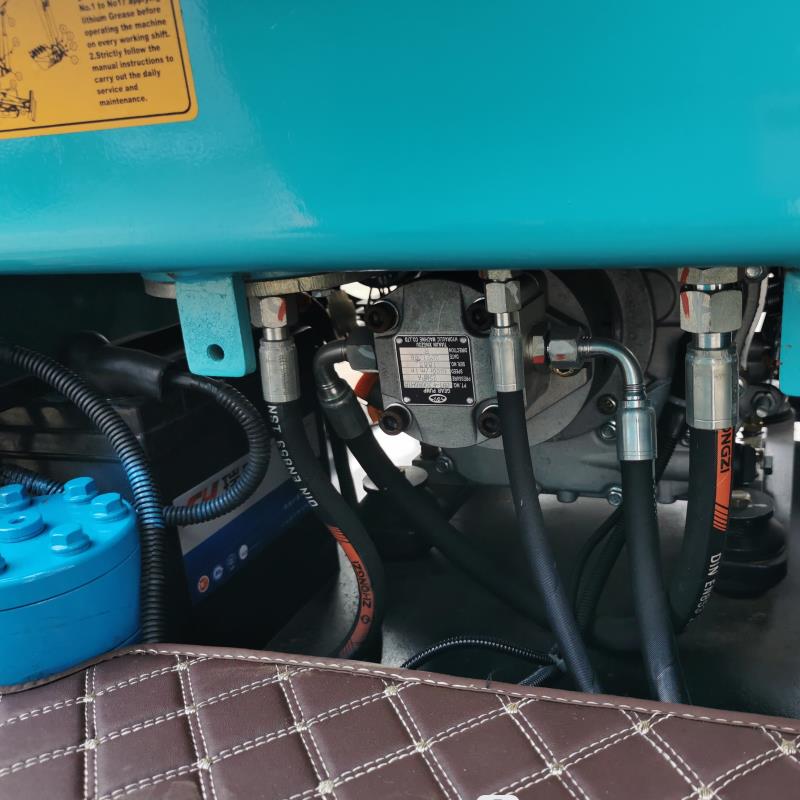

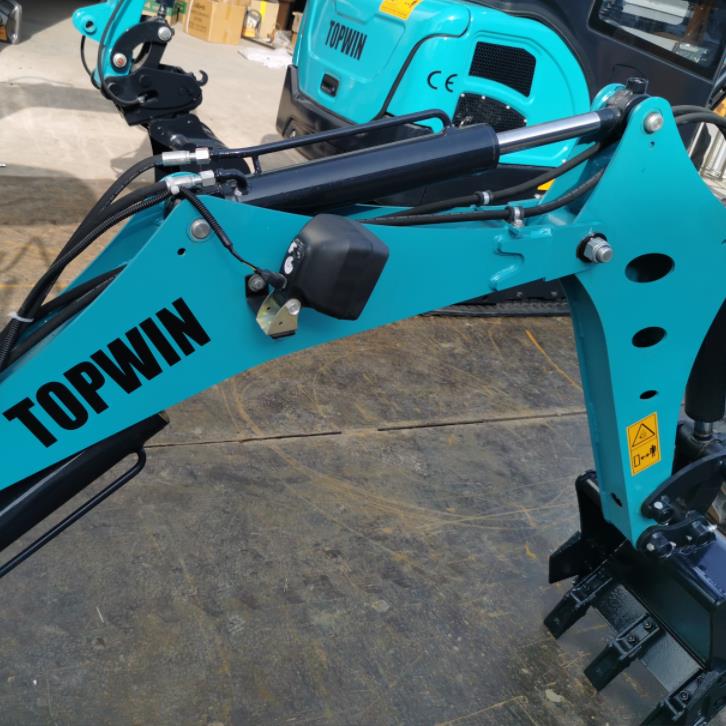

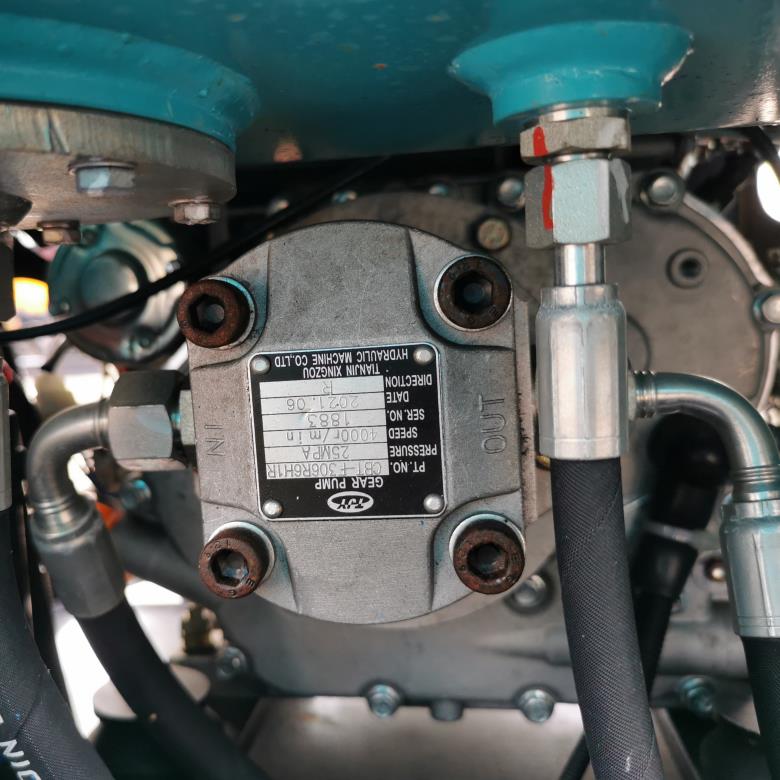

Digging Arm gear pump excavator Pump
