3.5 Ton Amphibious excavators

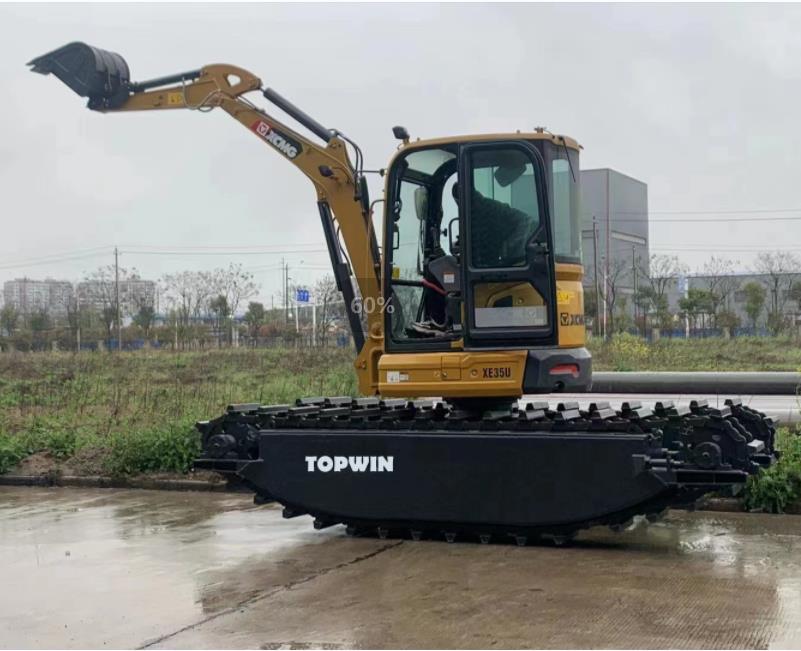

Customized Wetland Amphibious Mini Excavator
Cheap Price With Pontoon Undercarriage
Mini Digger Swamp Buggy Small Backhoe
For Not Used Excavator Sale
Product Description

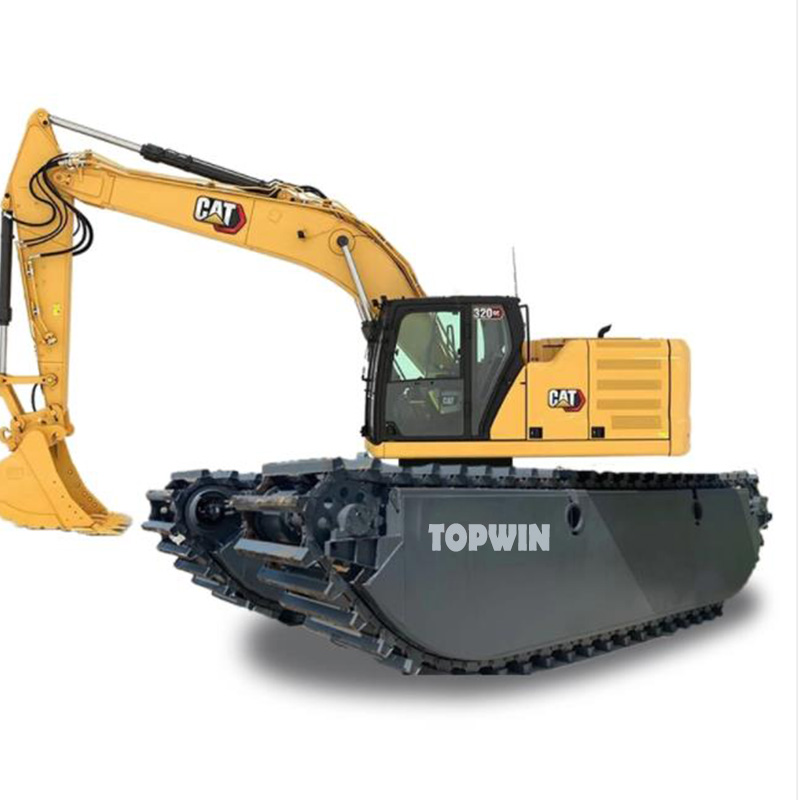

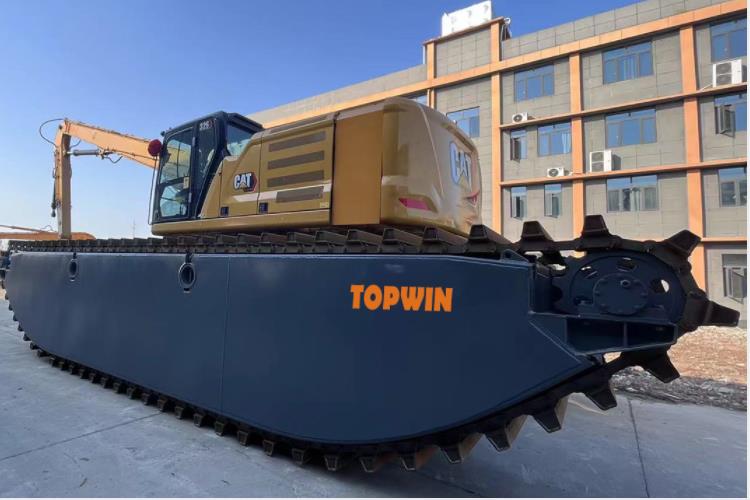

Amphibious Excavators Are Multi-Purpose Excavators Used In Land, Shallow Water,
Marsh And Deep Water Areas. After Years Of Sensible Testing, TOPWIN Amphibious Excavator Has Been Identified And Depended On By Way Of The Majority Of Users. The Higher Half Of Shape Can Pick Out The Excavator Company And All Sorts Of Computer You Need. Various Sorts Of Buoyancy Tank Have Been Designed And Widely Used, Which Can Be Tailored To 5-40 Ton Excavator, And Can Additionally Be Custom-Made In Accordance To Your Working Prerequisites And Requirements, In Accordance With Your Special Scheme.
Engine | Kubota |
Model | TW-26 |
Operating weight | 3800Kg |
Standard bucket capacity | 0.25m³ |
Overall width | 1800mm |
Overall height | 2550mm |
Buoyancy | 1.68 ton |

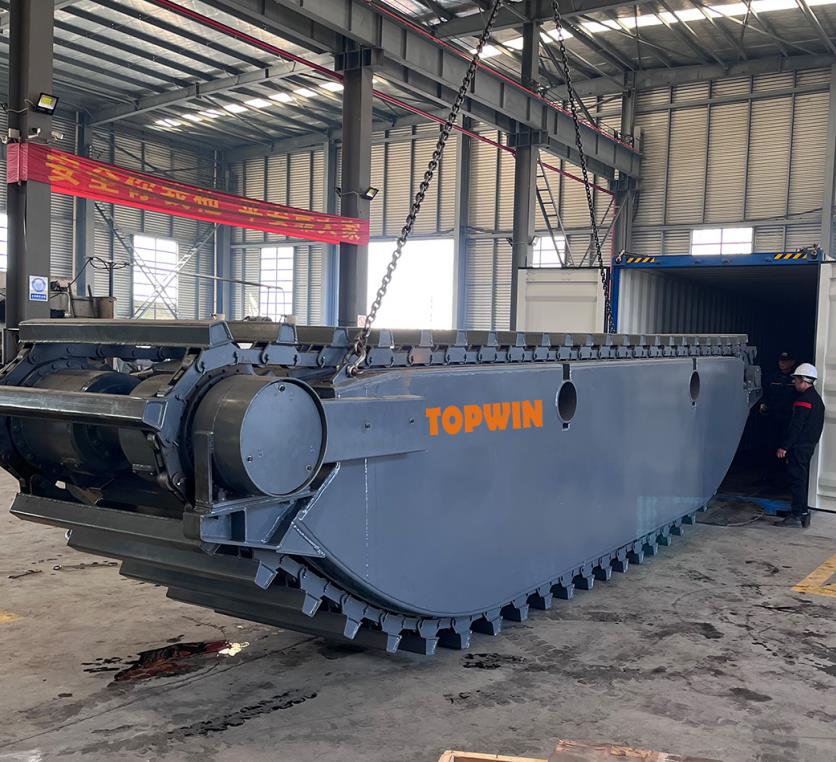

Our Factory
| Model | E60 |
| Operating weight | 5.82 |
| Bucket capacity | 0.22 |
| Engine model | YANMAR 4TNV98C |
| Rated power (kw) | 42.4 KW |
| Hydraulic pump model | KYB |
| Max.flow (L/min) | 160 |
| Working pressure (Mpa) | 24.5 |
| Control valve model | KYB |
| Swing motor model | INLINE |
| Travel motor model | EDDIE |
| Fuel tank capacity (L) | 125 |
| Hydraulic oil tank capacity (L) | 110 |
| Travel speed (km/h) | 2.5/4.0 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 70 |
| Arm digging force | 26.1 |
| Bucket digging force (KN) | 36.7 |
| Average grounding pressure (Kpa) | 34 |
| A-Overall length (mm) | 5943 |
| B-Overall width (mm) | 2000 |
| C-Overall height (to top of boom)(mm) | 1995 |
| D-Overall height (to top of cab)(mm) | 2619 |
| E-Counterweight ground clearance(mm) | 740 |
| F-Min. ground clearance (mm) | 360 |
| G-Tail swing radius (mm) | 1745 |
| J-Track length (mm) | 2000 |
| J-Track length (mm) | 2665 |
| K-Track gauge (mm) | 1600 |
| L-Track width (mm) | 2000 |
| M-Track shoe width (mm) | 400 |
| N-Turntable width (mm) | 1790 |
| O-Max. digging height (mm) | 5889 |
| P-Max. dumping height (mm) | 4201 |
| Q-Max. digging depth (mm) | 3812 |
| R-Max. vertical wall digging depth (mm) | 3008 |
| T-Max. digging reach (mm) | 6257 |
| U-Max. digging reach at ground level (mm) | 6102 |
| V-Min. swing radius (mm) | 2585 |
| X-Distance between center of rotation and tail length (mm) | 1745 |
| Y-Track shoe thickness (mm) | 7 |
| Z-Height of counterweight (mm) | 1062 |
| A1-Ground length (in transportion)(mm) | 3375 |
| Arm length (mm) | 1580 |
| Boom length (mm) | 3050 |
