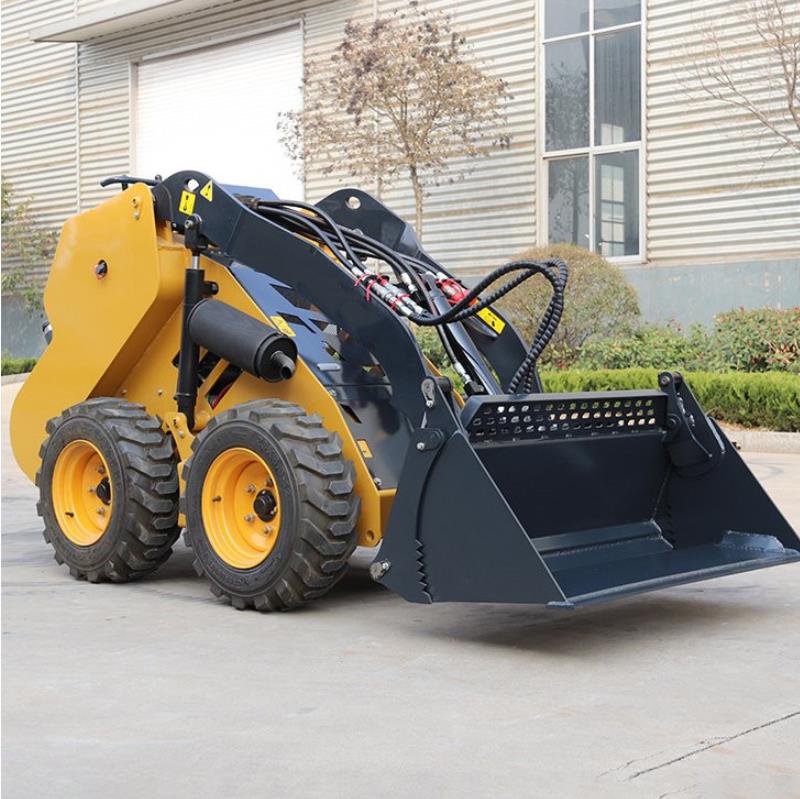

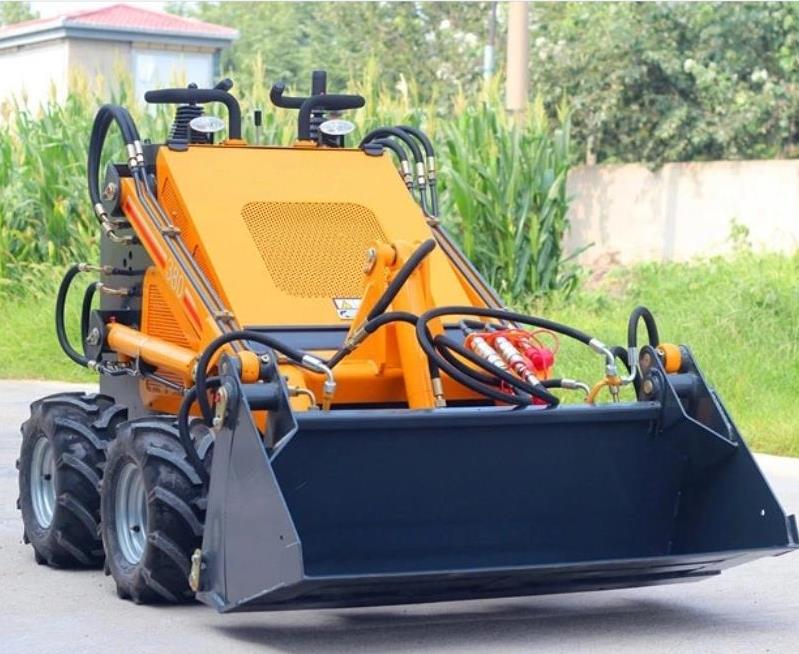

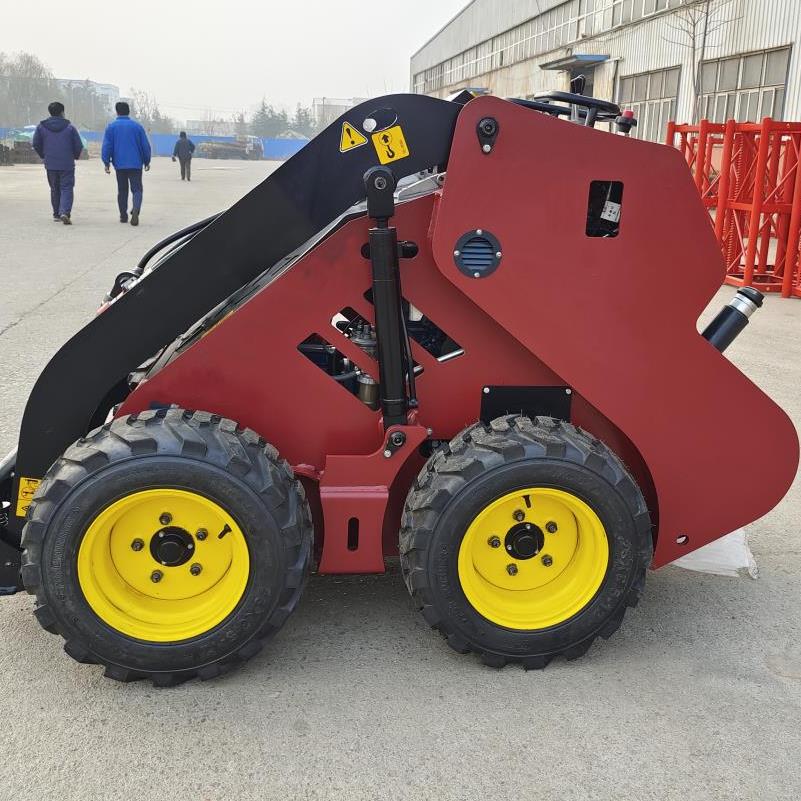

Mini Skid For Sale
EPA Approved China Mini Steerskid Skid Steer Loaders Skidsteer Mini Track Skid Steer Loadera Skid Loader Is a Small, Rigid- Frame ,Engine-Powered Machine With Lifting Arms That
Can Attach To a Wide Variety Of The Buckets And Other Labor-Saving Tools Or Attachments.
Specially Designed For Short Runs And Operation In Confined Places, Mmt80 Offers Operators a New Level Of Performance And Versability;
With Quick Connects And An Arsenal Of Available Attachments, Mini Skid Steer Is Ready To Tackle a Variety Of Jobs With Ease;
Equipped With a Nearly 1.3m Dump Height, The Mini Loader Saves Labor And Time;
. Compact And Flexible Design Makes It Quite Easy And Convenient To Operate, Maintain And Repair.
Perkins Tire 4 Diesel Engine, Water Cool, 3 Cylinders, For Option
Skid Steer Loader Specification
Sn | Model | Ls25 | Lst25 | ||
1 | Item | Imperial | Metric | Imperial | Metric |
A | Departure Angle | 20° | 20° | 20° | 20° |
B | Carry Position | 7 In | 178 Mm | 7 In | 176 Mm |
C | Dumping Angle | 37° | 37° | 37° | 37° |
D | Dumping Height | 50 In | 1279 Mm | 51 In | 1272 Mm |
E | Dumping Distance | 33 In | 830 Mm | 33 In | 833 Mm |
F | Ground Clearance | 7 In | 178 Mm | 6 In | 141 Mm |
G | Foot Pedal Ground Clearance | 7 In | 182 Mm | 7 In | 171 Mm |
H | Max. Height To Bucket Hinge Pin | 74 In | 1867 Mm | 74 In | 1869 Mm |
I | Overall Height | 53 In | 1358 Mm | 53 In | 1338 Mm |
J | Overall Length Without Bucket | 77 In | 1965 Mm | 77 In | 1959 Mm |
K | Overall Length With Bucket | 102 In | 2600 Mm | 103 In | 2619 Mm |
L | Max.Operating Height | 103 In | 2619 Mm | 103 In | 2626 Mm |
M | Rollback Angle @ Carry Position | 20° | 20° | 21° | 21° |
N | Rollback Angle @ Max.Height | 93° | 93° | 94° | 94° |
O | Wheelbase | 31 In | 775 Mm | 36 In | 918 Mm |
P | Min.Turning Radius With Bucket | 64 In | 1624 Mm | 62 In | 1575 Mm |
Q | Overall Width | 42 In | 1070 Mm | 43 In | 1103 Mm |
R | Track Gauge | / | / | 36 In | 903 Mm |
S | Overall Width With Standard Bucket | 49 In | 1250 Mm | 49 In | 1250 Mm |
Specially Designed For Short Runs And Operation In Confined Places, Mmt80 Offers Operators a New Level Of Performance And Versability;
With Quick Connects And An Arsenal Of Available Attachments, Mini Skid Steer Is Ready To Tackle a Variety Of Jobs With Ease;
Equipped With a Nearly 1.3m Dump Height, The Mini Loader Saves Labor And Time;
. Compact And Flexible Design Makes It Quite Easy And Convenient To Operate, Maintain And Repair.
Perkins Tire 4 Diesel Engine, Water Cool, 3 Cylinders, For Option
Topwin Mini Loaders Was Established After Years Of Involvement With Both The Manufacturing And Contracting Side Of The Mini Skid Steer Loader Industry We Have a Unique Knowledge Of Machine Operation And Our Competitor's Machines. We Have Used This Knowledge As a Huge Advantage In Our Development With Careful Attention To Consumer Feedback And Competitors' Technical & Service Shortfalls. We Are Proud To Be Involved In The Industry And Look Forward To a Long And Successful Involvement. Our Aim Is To Provide Our Customers With Be's't Products And Best Support They Need To Run Their Businesses To Their Maximum Capacity With The Best Products Available.
With An Extremely Strong Engineering Background And Previous Manufacturing Knowledge, We Are Able To Meet The Requests And Needs Of The Most Demanding Customers.
Topwin Equipment Develops a Wide Range Of Lightweight Yet Heavy-Duty Machines That Generate An Impressive Amount Of Hydraulic Power To Lift More, Move More And Dig Faster Than Any Other Product On The Market. The Choice Of Contractors And Rental Organizations, The Topwin Is One Of The Most Versatile, Reliable And Productive Traction Units In The World.
The Topwin Compact Utility Loader Is An Innovative Machine That Reduces The Costs Of Performing Key Tasks And The Process Of Improving The Environments In Which People Live And Work. Developed To Replace Hand Labor, The Topwinprovides a Cost-Effective, Terrain-Friendly Solution For Landscapers, Irrigation Contractors, Plumbers, Electricians, And Property Owners As They Dig, Trench, Till, Auger, Demo, Place Materials, And Perform a Multitude Of Other Tasks.
Topwin Mini Skid Steer Equipment Has Five Model Series Available: The New 4 In1 Bucket, The Dedicated Trencher And The Cg118, Cg823 And Cg827 Series Compact Utility Loaders, Built To Handle a Full Complement Of More Than 50 Universal Attachments. The Topwin Standard Quick-Attach System Enables The User To Quickly And Easily Switch From a Bucket To Forks To Auger Or Other Tools For Optimum On-The-Job Flexibility And Bottom-Line Performance.
Product Details
Skid Steer Hydraulic Connector Skid Steer Loader Cabin Skid Steer Loader Radiator
Skid Steer Loader Panel Skid Steer Loader Pilot Lever Skid Steer Loader Quick Hitch
Skid Steer Loader Attachments
Company Profile
Shandong Topwin Machinery Co.,Ltd. (Topwin For Short) Is The One-Stop Solution Provider For Construction Machinery, Mining Machinery, Agricultural Machinery And Logistic Machinery In China.
tem | Model | TWS35 | TWS45G | TWS60G | TWS65B | TWS100 | TWSS65 | TWSS100 |
1 | Operating load (kg) | 500 | 700 | 850 | 950 | 1200 | 1000 | 1200 |
2 | Max Speed(km/h) | 10 | 12 | 12 | 12 | 12/18 | 12/18 | 12/18 |
3 | Rated flux (L/min) | 60 | 75 | 75 | 80 | 80 | 75 | 88 |
4 | Tire(track) model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 320X84 | 320X84 |
5 | Rated power (kW/HP) | 29.5/40 | 37/50 | 45/61 | 55/75 | 74/100 | 55/75 | 74/100 |
6 | Fuel tank capacity (L) | 60 | 65 | 80 | 75 | 90 | 80 | 90 |
7 | Self weight bucket (kg) | 2300 | 3000 | 3200 | 3350 | 3550 | 3800 | 4500 |
8 | Bucket capacity (m 3 ) | 0.3 | 0.4 | 0.5 | 0.5 | 0.55 | 0.5 | 0.55 |
A | Overall operating height (mm) | 3300 | 3980 | 4000 | 4000 | 4070 | 3480 | 4070 |
B | Height to bucket hinge pin (mm) | 2725 | 3080 | 3100 | 3100 | 3150 | 2900 | 3150 |
C | height to top of cab (mm) | 2000 | 2140 | 2160 | 2160 | 2160 | 2150 | 2160 |
D | Height to bottom of level bucket(mm) | 2558 | 2913 | 2933 | 2933 | 2983 | 2730 | 2983 |
E | Overall length without bucket(mm) | 2300 | 2640 | 2750 | 2750 | 2880 | 2750 | 3000 |
F | Overall length with bucket(mm) | 3080 | 3420 | 3490 | 3490 | 3580 | 3500 | 3700 |
G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
H | Dumping height(mm) | 2050 | 2380 | 2400 | 2400 | 2450 | 2230 | 2450 |
I | Dumping reach(mm) | 790 | 700 | 750 | 750 | 700 | 715 | 700 |
J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1085 | 1185 | 1500 | 1500 |
M | Ground clearance(mm) | 140 | 185 | 205 | 205 | 205 | 200 | 200 |
N | Angle of departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
O | Front turning radius without bucket(mm) | 1098 | 1168 | 1198 | 1204 | 1278 | 1298 | 1365 |
P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2030 | 2144 | 2010 | 2200 |
Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1706 | 1857 | 1714 | 1742 |
R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 | 1082 | 890 | 938 |
S | Tread width, centerline to centerline (mm) | 1080 | 1450 | 1500 | 1500 | 1500 | 1462 | 1654 |
T | Width (mm) | 1350 | 1720 | 1880 | 1880 | 1880 | 1782 | 1994 |
U | Bucket width (mm) | 1400 | 1740 | 1880 | 1880 | 1880 | 1830 | 2030 |
