The Mast Is Worldwide Famous C Kind Steel, Besides Any Welding, Which Ensures The Mast Very Durable,

Compacted Measurement And Accurate Trafficability. More Non-Compulsory Mast: Two Stage Mast 3.3m/3.5m/4m.

Or 3stage Mast 4.5m/5m/5.5m/6m/7.3m.



2. Transmission Box, Force Axle And Different Core Components Are All Well-Known Brand.

The Transmission Field Undertake Tcm Technic And Container Meeting Failure Charge Is Low.



3. The Mast Pipe Is Geared Up With Explosion Proof Security Protection, Which Ensures The Lifting Process Safety.



4. Toyota Model Suspension Seat, Greater Comfy And Make Sure Long-Time Operation.



5. One Structure Overhead Guard, Adopts Entire Stamping, Which Is Greater Safer And Reliable.



6. Various Attachment Can Option, Such As Paper Curler Clamp Carton Clamp, Bucket, Etc.

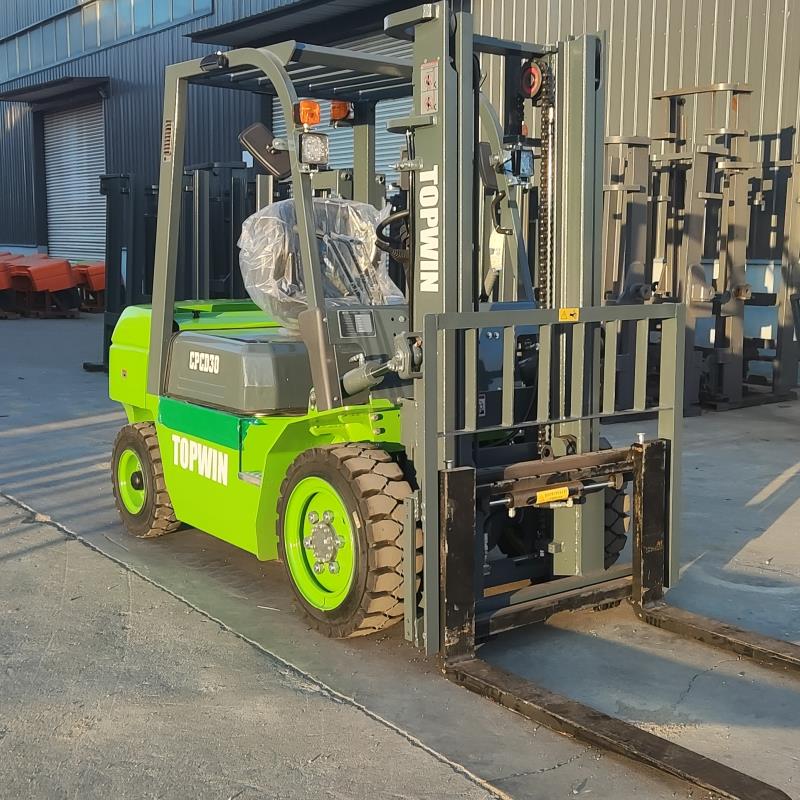

Applications: As Lifting And Transporting Machineries, Topwin Fd Series 3T-3.5T-4T Diesel / Gasolin

 / Lpg Ic Counterbalanced Forklift Trucks Are Extensively Used For Loading, Unloading And

Transporting The Packaged Items In Factories, Warehouses, Stations, Wharves, Ports And So On.

The Fork Elevate Truck Can Additionally Be Used For Bulk Items And Unpacked Top Loading,

Unloading And Handing After Assembled With Different Attachments.





Model	FD30
Rated Lifting Weight ,Kg	3000
Load Center ,Mm	500
Power	Diesel
Max. Lifting Speed (Full Load) ,Mm∕S	505/475
Max. Travel Speed (Full Load/Unload) ,Km/H	18∕20
Max. Traction Force (Full Load/Unload), Kn	15.5∕10.5
Grade-Ability (Full / No Load) ,%	15∕20
H1 Lifting Height ,Mm	3000
Free Lifting Height ,Mm	80
Mast Inclination (Α Front / Β Rear), Degree	6∕12
Min. Turning Radius ,Mm	2530
Min. Right Angle Channel ,Mm	2110
Min. Ground Clearance ,Mm	135
A Overall Length (Including Forks) ,Mm	3970
B Overall Width ,Mm	1230
H Overall Height (Mast Retraction) ,Mm	2110
H2 Overall Height (Full Extension Of Mast) ,Mm	4270
H3 Overhead Guard Height ,Mm	2110
A1 Front Overhang ,Mm	465
A2 Wheelbase ,Mm	1775
B1 Wheel Treat Front ,Mm	1000
B2 Wheel Treat Rear ,Mm	970
Front Tyre	28×9-15
Rear Tyre	6.50-10
Weight ,Kg	4250/4290
B3 Fork Width,,Mm	122
H4 Fork Thickness ,Mm	45
Fork Bracket Height ,Mm	1225
A3 Standard Fork Length ,Mm	1220
Engine	China stage Ⅲ
Rated Power Kw	36.8
Speed At Rated Power Rpm	2500
Maximum Torque Nm	157
Speed At Maximum Torque Rpm	1800
Transmission	Mechanical
