7 Ton Forklift Price

Our Factory Has Extra Than10 Years Of Forklift Provider Foundation, And Can Grant Clients With Top Options In Accordance To Their Specific Use Scenarios, So That Clients Can Do The Largest Matters With The Least Money.



Internal Combustion Forklift Refers To a Forklift That Makes Use Of Diesel, Fuel Or Liquefied Petroleum Gasoline As Gas And Is Powered Through An Engine.

The Counterweight Diesel Forklift Has a Large Volume, However It Has Precise Stability. It Is Appropriate For Heavy Load. The Use Time Is Unlimited. The Use Web Site Is Usually Outdoors. In Tropical Areas, You Can Select The Giant Radiator.

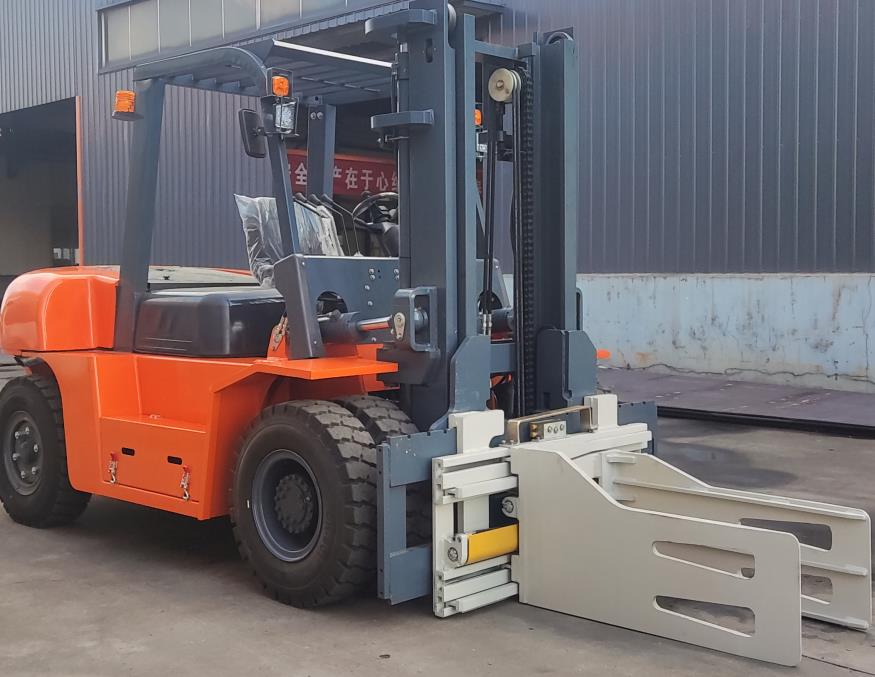

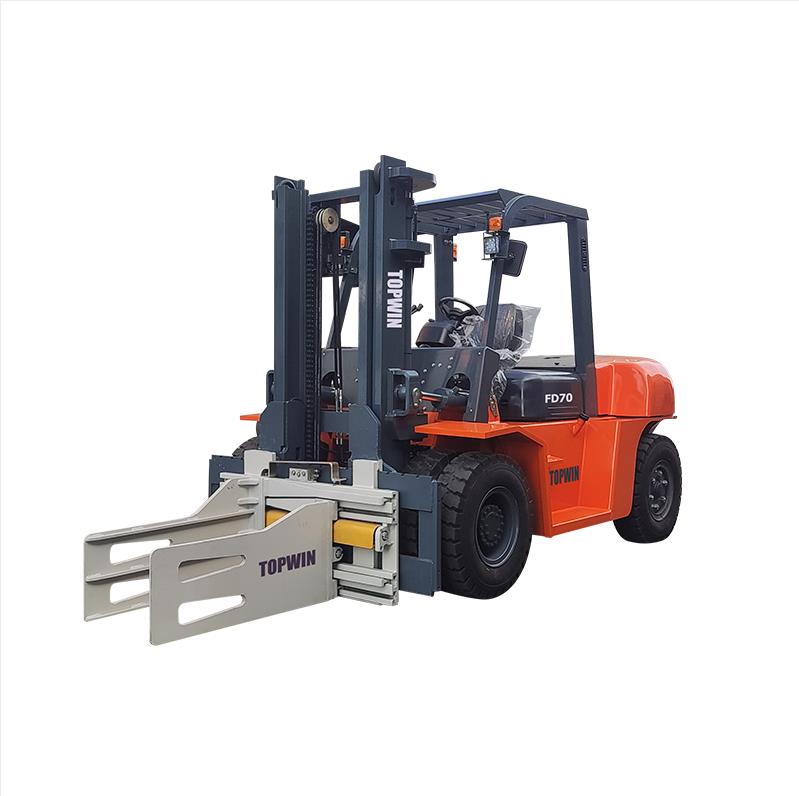

We Are Dedicated To Providing Forklift Vip Solution To Meet All Kinds Of Work Condition Which Means Topwin Forklift Can Be Customized. For Example, If Your Want Move Forks From Left To Right Automatically Without Moving Forklift, We Suggest You Side Shifter. If You Want To Adjust Fork's Distance, We Suggest Fork Positioner. If Your Working Environment Is Very Cold Or Rainy, We Suggest You Fully Closed Cabin With Opening Windows. And All Kinds Of Attachments, Such As Paper Roll Clamp, Bale Clamp, Block Clamp, Carton Clamp, Double Forks And So On.

Feature:

High Quality

-- Reasonable Design Of Hose And Tough Pipe, Minimize Oil Strain Loss;

-- The Mature And Dependable Engine Offers Masses Of Power;

-- The Fantastic Giant Ability Aluminum Tube Belt Radiator And Optimized Warmness Dissipation Channel In Addition Enhance The Warmness Dissipation Capability Of The Vehicle;

-- The Superior Transmission Machine Has Improved Shock Resistance And Bump Resistance.

High Security

-- Wide Imaginative And Prescient Mast Presents a Right The Front View, Correct Disassembly Of Goods. The Grille Roof Shield Offers Appropriate Top Visible Area For Drivers;

-- Standardized Led Lamp, Excessive Brightness, Lengthy Life, Electricity Saving And Environmental Protection.

High Comfort

-- Standard Small Diameter Steerage Wheel, Mild Control, Limit Driver Fatigue;

-- The Blended Shade Instrument Has Robust Human- -Machine Interplay And Well Timed And Precisely Comments The Strolling Nation Of Vehicles;

-- Spacious Manipulate Space, Cozy Seats, Revel In The Pleasure Of Riding.

Rich Options

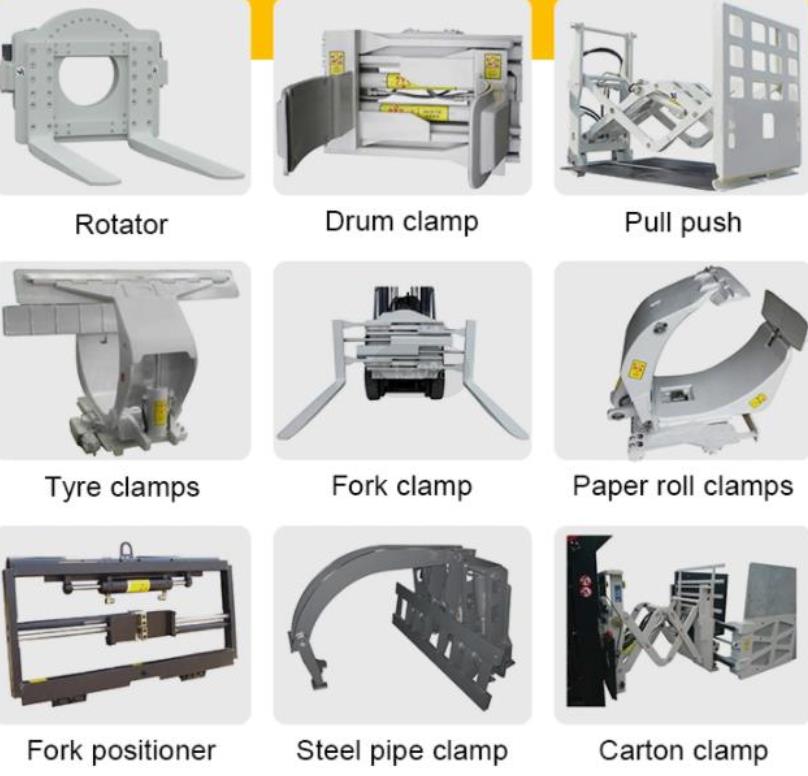

-- Excessive Exhaust Device, Air Prefilter, Fireproof Cap, Strong Tire, Two Stage Free Raise Mast, Three Stage Free Carry Mast, Widening Fork Frame, Fork Sleeve, Aspect Shifter, Paper Roll Clamp, Bale Clamp, Carton Clamp, Block Clamp, Rotators, Drum Clamp, Push-Pull, Etc.





Model	FD60	FD70
Rated Lifting Weight ,Kg	6000	7000
Load Center ,Mm	600	600
Power	Diesel	Diesel
Max. Lifting Speed (Full Load) ,Mm∕S	470	450
Max. Travel Speed (Full Load/Unload) ,Km/H	21∕13	21∕13
Max. Traction Force (Full Load/Unload), Kn	53	54
Grade-Ability (Full / No Load) ,%	20∕25	20∕25
H1 Lifting Height ,Mm	3000	3000
Free Lifting Height ,Mm	150	150
Mast Inclination (Α Front / Β Rear), Degree	6∕12	6∕12
Min. Turning Radius ,Mm	3430	3450
Min. Right Angle Channel ,Mm	3090	3090
Min. Ground Clearance ,Mm	230	230
A Overall Length (Including Forks) ,Mm	4760	4850
B Overall Width ,Mm	1995	1995
H Overall Height (Mast Retraction) ,Mm	2500	2500
H2 Overall Height (Full Extension Of Mast) ,Mm	4420	4420
H3 Overhead Guard Height ,Mm	2420	2420
A1 Front Overhang ,Mm	635	610
A2 Wheelbase ,Mm	2250	2250
B1 Wheel Treat Front ,Mm	1470	1470
B2 Wheel Treat Rear ,Mm	1700	1700
Front Tyre	8.25-15-14	8.25-15-14
Rear Tyre	8.25-15-14	8.25-15-14
Weight ,Kg	8640	9500
B3 Fork Width,,Mm	150	150
H4 Fork Thickness ,Mm	60	65
Fork Bracket Height ,Mm	1365	1365
A3 Standard Fork Length ,Mm	1220	1220
Engine	China stage Ⅲ	China stage Ⅲ
Rated Power Kw	66	66
Speed At Rated Power Rpm	2200	2200
Maximum Torque Nm	350	350
Speed At Maximum Torque Rpm	1600	1600
Transmission	Hydraulic	Hydraulic
